Zenitco B-2 Rail - CNC D16T Aluminum 45mm Picatinny Bracket for Bazis-Rail Handguards (Black, Desert & Golden Khaki)
- $39
Available Options
In short: Zenitco B-2 is a 45 mm Picatinny adapter for a Bazis guide. The one-piece D16T aluminum bracket weighs 10 ± 2 g without mounting elements and can be secured with an oval cam mount or the included M5×9 screw.
Purpose
B-2 adds a short Picatinny section exactly where it is needed on a compatible Bazis guide. It is intended for Sport, Leader and Joker systems and other Zenitco products identified by the manufacturer as using the Bazis interface.
Technical specifications
| Material | One-piece milled D16T aluminum alloy |
|---|---|
| Interfaces | Bazis to Picatinny |
| Picatinny length | 45 mm |
| Dimensions | 45 × 22 × 9 mm, tolerance +2 mm |
| Weight | 10 ± 2 g without mounting elements |
| Operating range | −50°C to +50°C |
| Manufacturer warranty | 60 months |
Choose the B-2 length
B-2 provides 45 mm of Picatinny space. For a shorter section compare B-2M or B-2L; for the longest section in this family compare B-2U at 75 mm.
Compatibility and colors

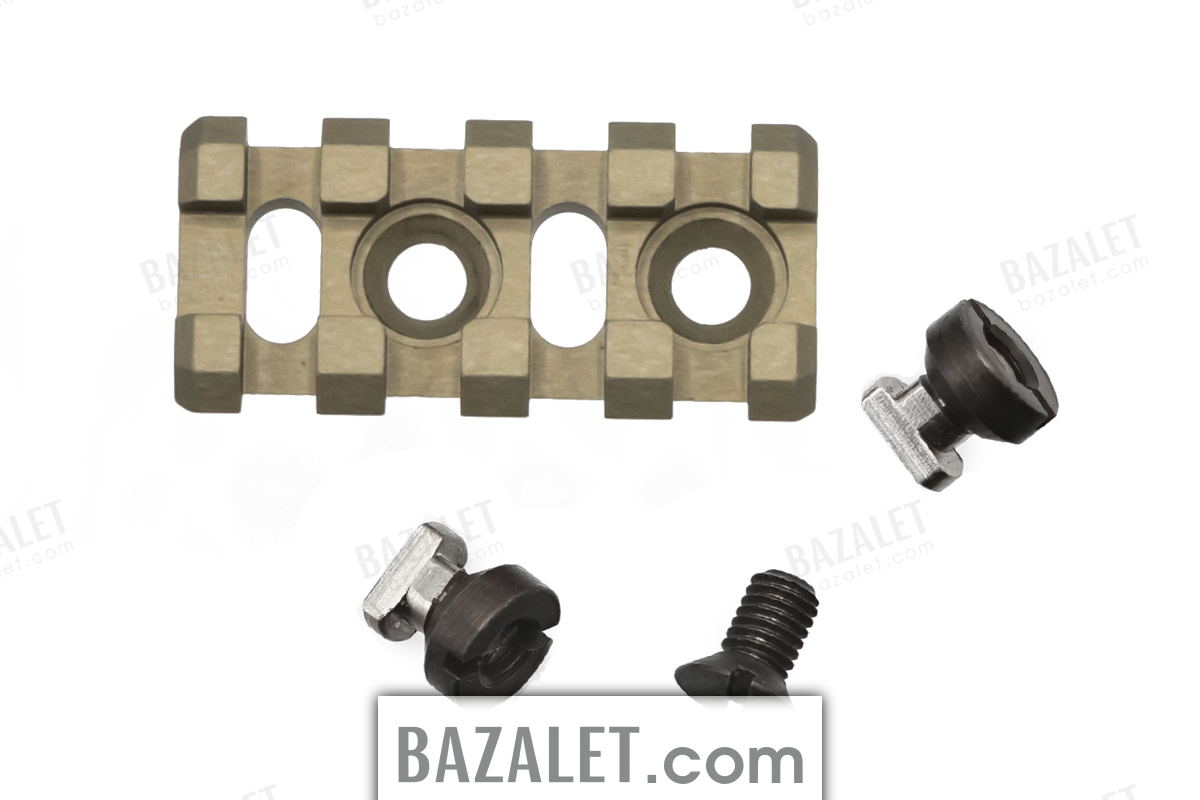

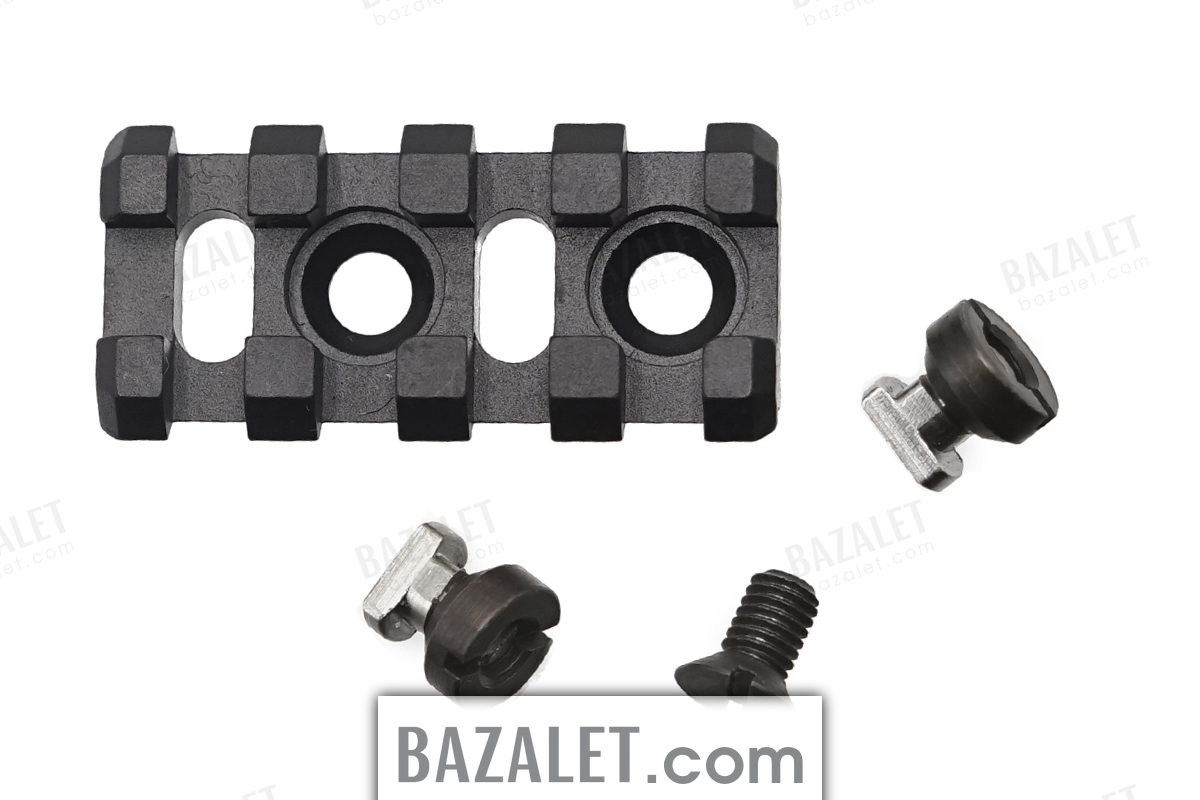

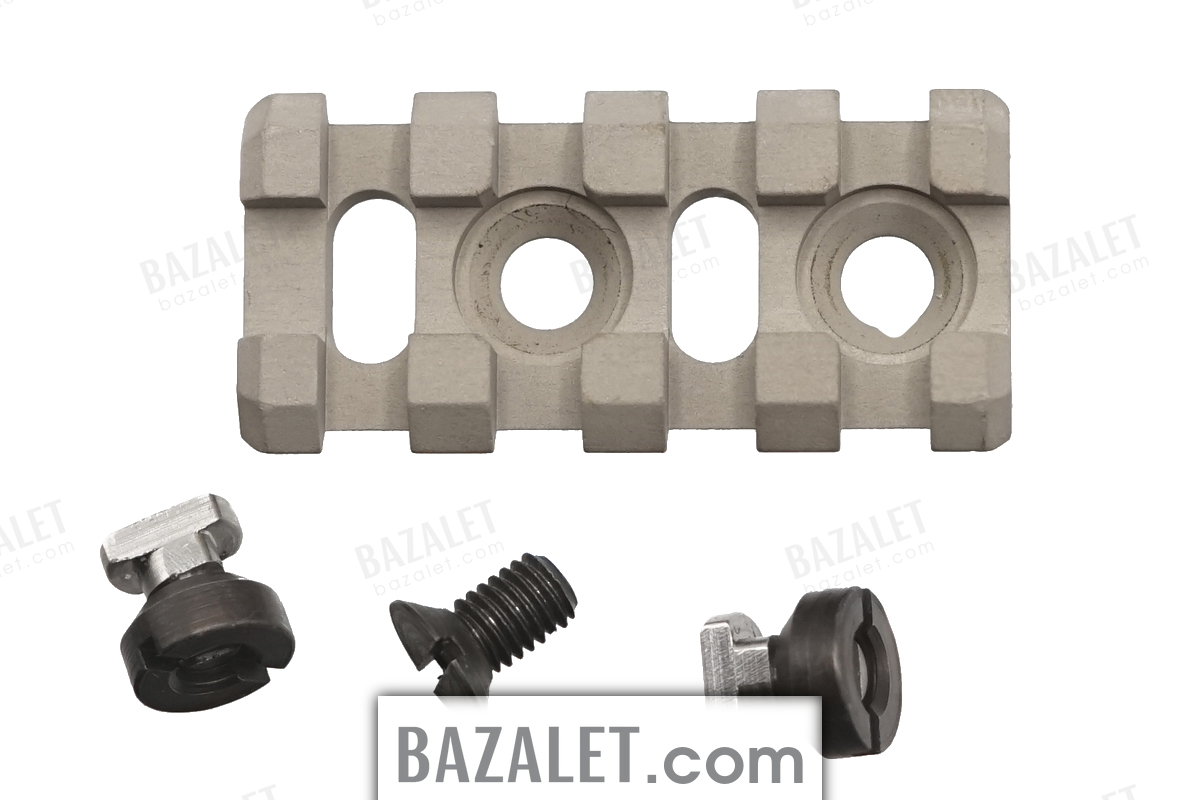

Use B-2 only on a confirmed Bazis guide. The current required color selection offers Black, Desert and Golden Khaki, with an exact gallery image for each finish.
Delivery basis
- B-2 rail — 1
- Oval cam mounts — 2
- M5×9 screw — 1
- User manual — 1
Installation
- Choose the required position on the Bazis guide and align the openings.
- Select an oval cam mount or the M5×9 screw as the fastening method. One mounting element is sufficient; both methods may be used together where the interface allows.
- For an oval cam mount, leave it loose enough to rotate, place it into the Bazis opening and turn the mechanism clockwise through 90 degrees until it stops.
- Use the M5×9 screw at a documented upper-to-lower connection point when applicable.
- Confirm that the rail is secure before attaching an accessory.
Frequently asked questions
How long is the B-2 Picatinny section?
It provides a 45 mm Picatinny section on a compatible Bazis guide.
Does B-2 fit directly on Picatinny?
No. B-2 mounts to a Bazis guide and creates a Picatinny section.
Which mounting parts are included?
The delivery set includes two oval cam mounts and one M5×9 screw, together with the rail and manual.
Which B-2 version provides more rail space?
B-2U provides a 75 mm Picatinny section; standard B-2 provides 45 mm.
