Zenitco Sport-12 Handguard Kit - CNC D16T Aluminum Handguard System for AK-pattern / TR3 (Six Bazis Rails, Black & Desert)
- $649.00
-
Available Options
Zenitco Sport-12 Handguard Kit - for AK-pattern / TR3
Overview
Sport-12 replaces the factory handguard on the AK-pattern and the TR3 carbines built on it. It is a two-part set - an upper and a lower bracket joined by a pin - rather than a single shell.
Six Bazis guides run around it, which is the most of any Zenitco handguard. A Bazis guide takes accessories directly - B-2, B-2L, B-2M and B-2U Picatinny sections, A-1L and A-2L sling swivels, RL-1 hand stops, RK-series L grips, NPN-2 guide covers and FP wire clips. Picatinny appears only where you add a B-2 section, which are sold separately.

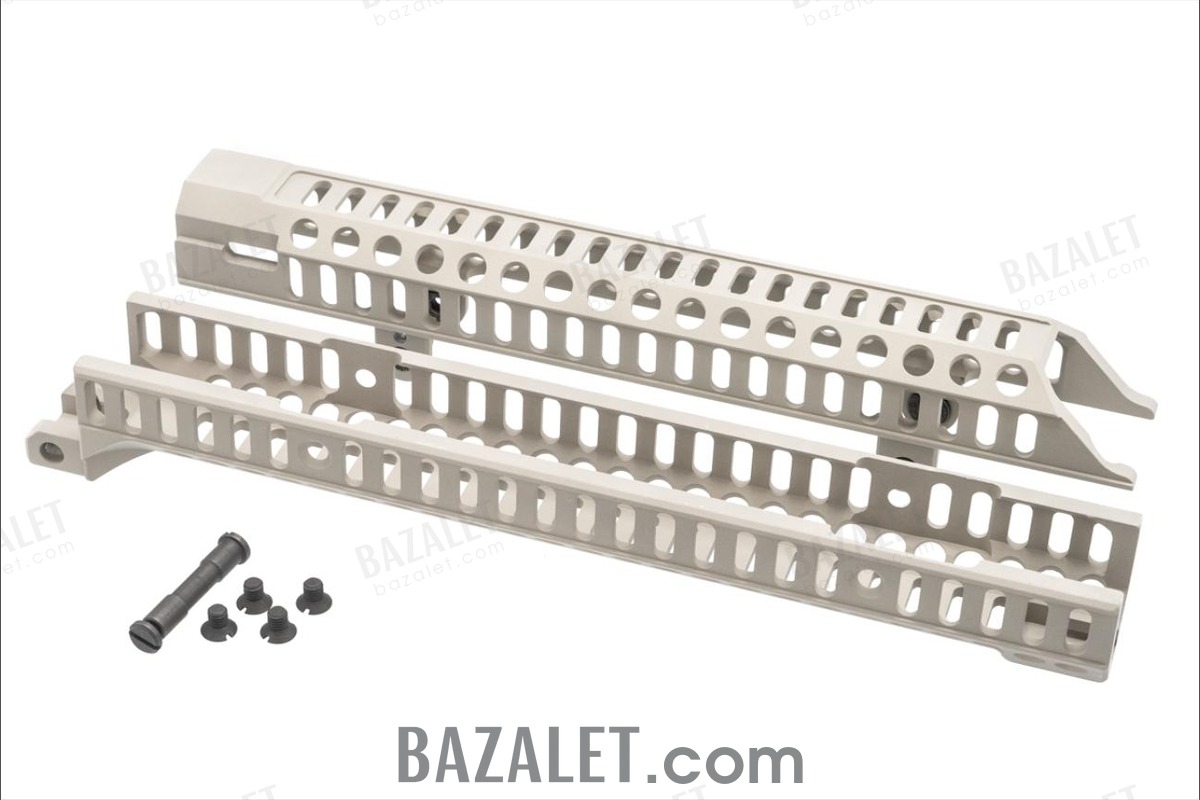

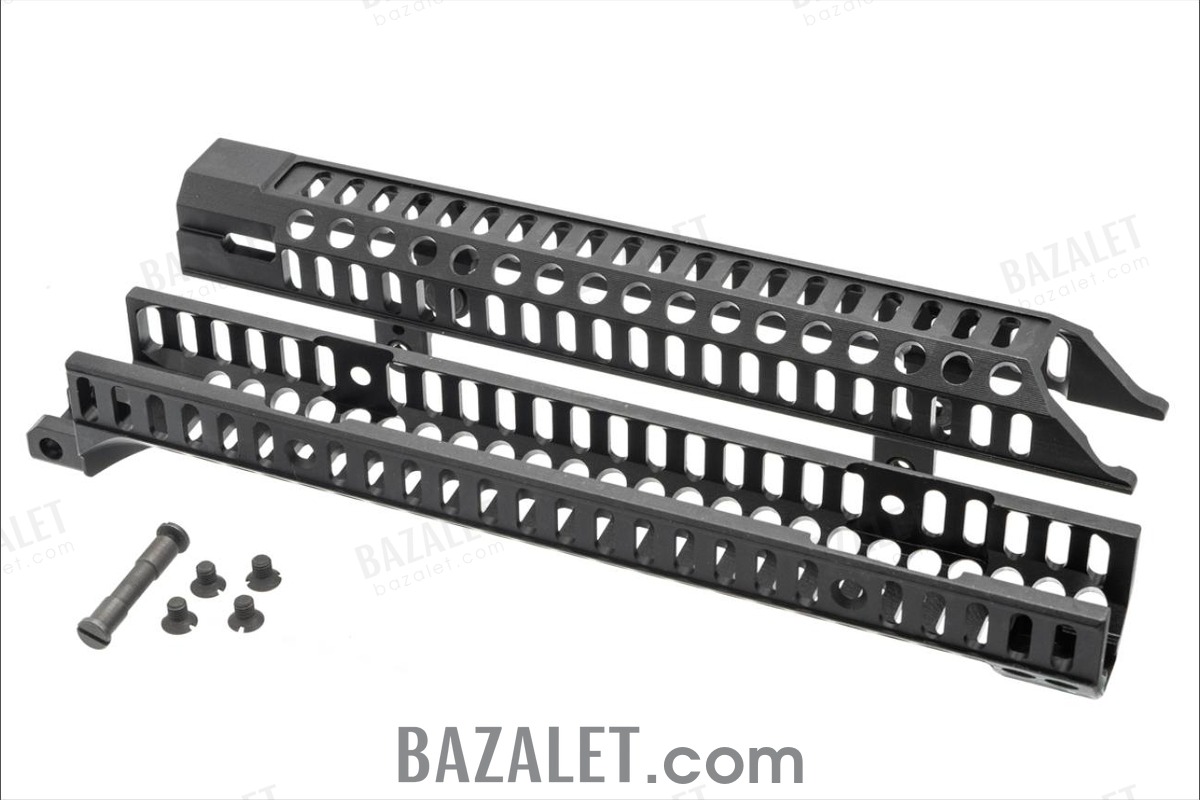

What's in the Box
| ✓Sport-12 Upper Bracket | x 1 |
| ✓Sport-12 Lower Bracket | x 1 |
| ✓Pin | x 1 |
| ✓5x7 Screw | x 4 |
| ✓User Manual | x 1 |
The Sport-12 gives you six Bazis rails around the handguard for direct accessory mounting. For Picatinny equipment, add a separate B-2, B-2L, B-2M or B-2U bracket at any point on a Bazis rail. It installs in place of the factory handguard using the two brackets, an axle and four M5x7 screws (all included).
Every part is CNC-milled from D16T aluminum alloy with a protective coating. The kit weighs about 265 g and is 265 mm long, rated for a working temperature range of -50 to +50 C.
Key Advantages
- Genuine Zenitco factory part with exact original fit
- Six Bazis rails - mount accessories directly on the handguard
- Picatinny-ready with a separate B-2 / B-2L / B-2M / B-2U bracket
- Comfortable grip and improved cooling around the barrel
- CNC-machined from D16T aluminum; light and rigid
- Available in black and desert
Technical Specifications
| Brand | Zenitco |
| Part Type | Two-piece handguard kit (upper + lower) |
| Fits | AK-pattern and TR3-based carbines (not TR-3 366 TKM) |
| Rails | Six Bazis guide rails (Picatinny via separate bracket) |
| Material | D16T aluminum (CNC), protective coating |
| Weight | ~265 g (+/- 10 g) |
| Length | 265 mm |
| Operating Temp | -50 to +50 C |
| Included | Upper bracket, lower bracket, axle, 4x M5x7 screws, manual |
| Finish | Black / Desert |
| MPN | Sport-12 |
| Condition | New |
