Zenitco B-16 Picatinny Rail Extension - CNC Aluminum QD Rail Extender
- $109
Available Options
Zenitco B-16 Picatinny Rail Extension - CNC Aluminum QD Rail Extender
Overview
The B-16 is a short Picatinny extension in a quick-detach body, milled from D16T aluminum alloy. It clamps onto an existing Picatinny rail and adds a second rail surface where the original one runs out.
Typical uses are moving an optic forward or back to correct eye relief, adding a mounting point ahead of a receiver cover rail, or building a second level for a light or a night device. Several orientations are possible, so the same part solves more than one layout problem.
The quick-detach lever makes fitting and removal a tool-free operation, and the clamp returns the accessory close enough to its previous position that a rough zero is preserved. At 45 g the extension is light enough to leave installed permanently.
What's in the Box
| ✓Zenitco B-16 Picatinny Rail Extension with Quick-Detach Mount | x 1 |
| ✓User Manual | x 1 |

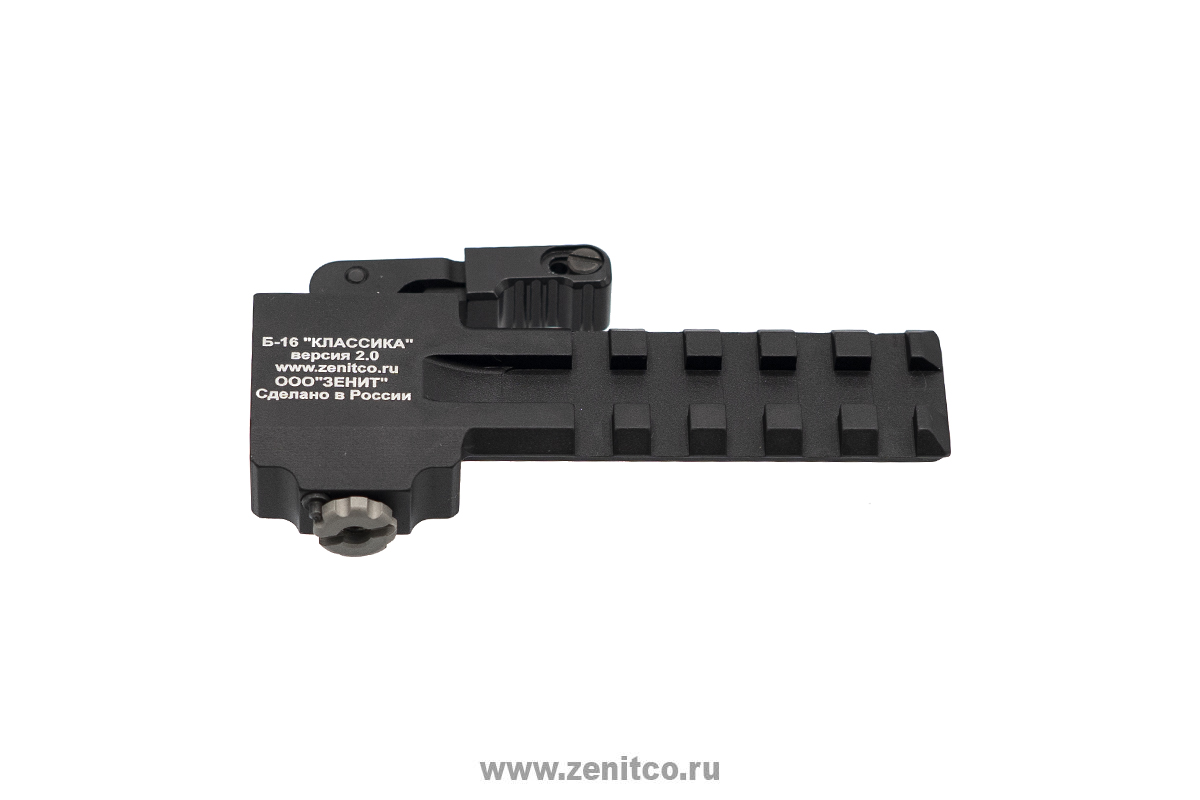

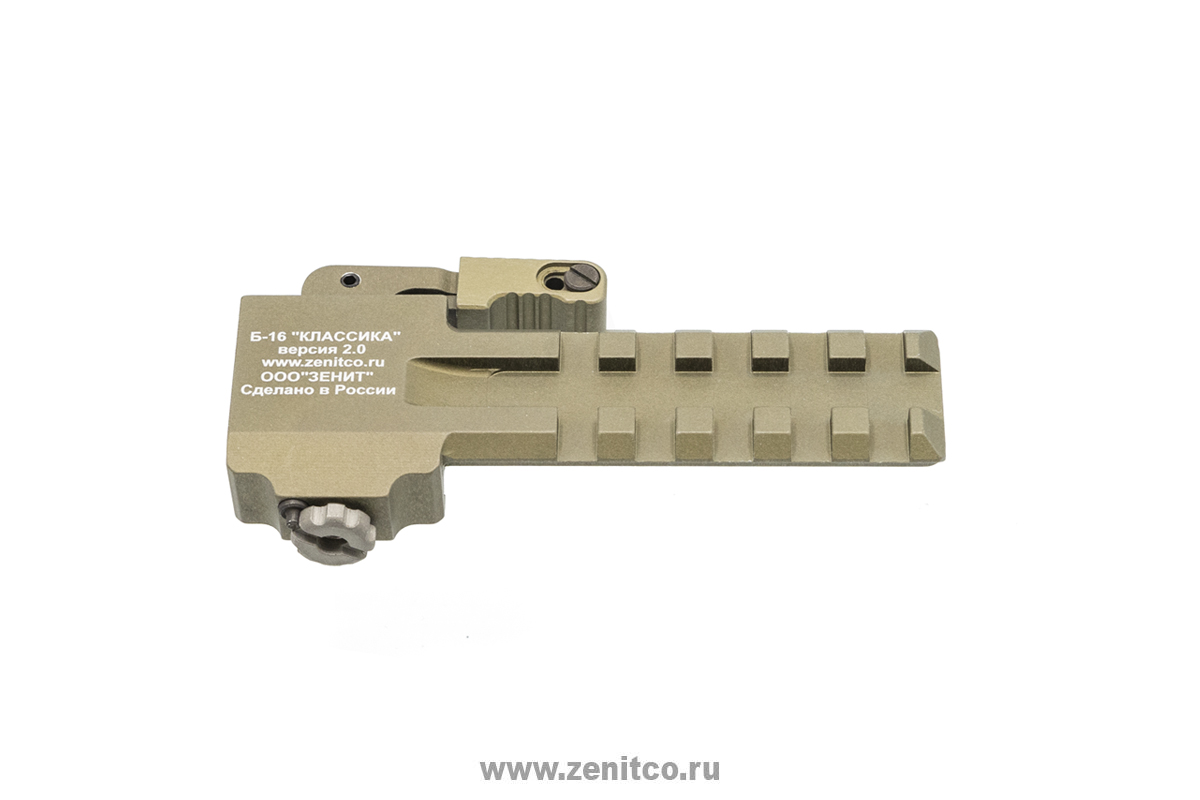

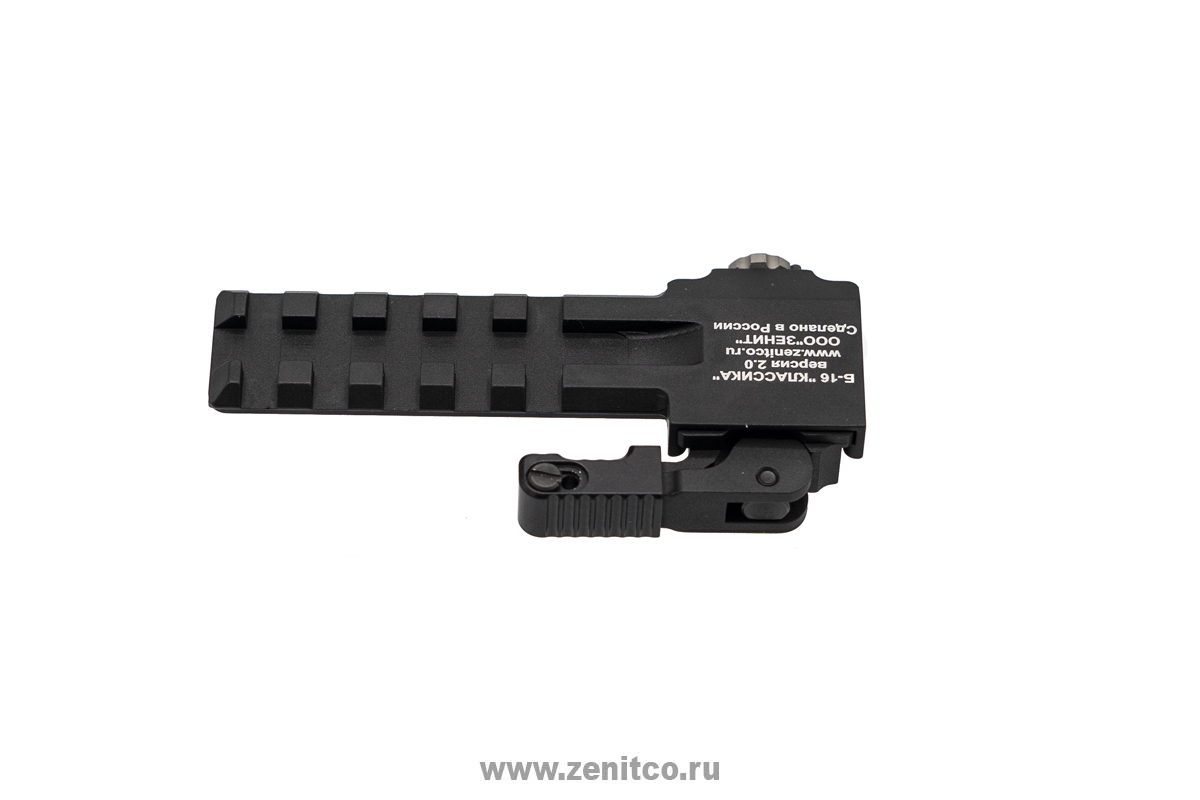

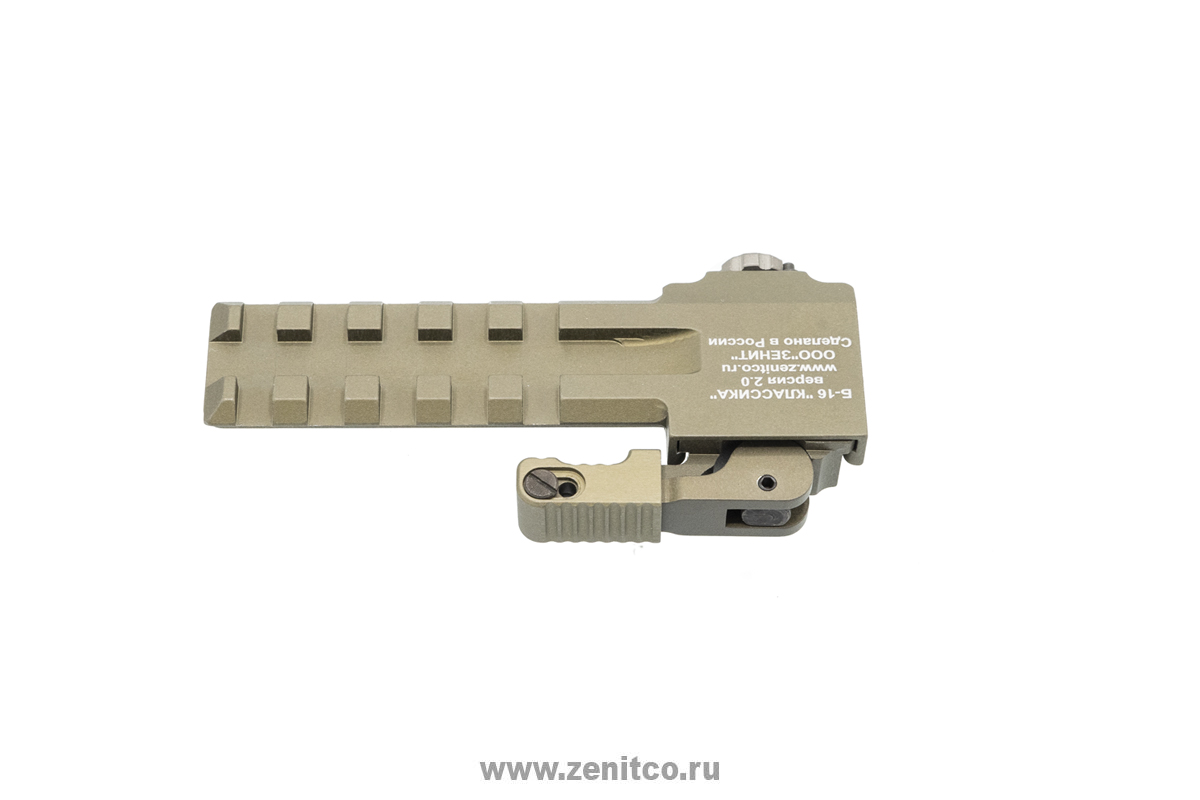

The Zenitco B-16 "Klassika" v2.0 is a CNC-milled D16T aluminum Picatinny rail extension. It clamps onto an existing Picatinny rail and extends it forward, giving you extra MIL-STD-1913 mounting space for optics and accessories. The quick-detach clamp installs and removes without tools and returns to the same position.
It sits alongside Zenitco's other rail extenders - if you need a QD-lever mount, see the B-14 V2.1 and the B-14M.
Key Advantages
- Adds forward rail space - extends an existing Picatinny rail for optics and accessories
- Quick-detach clamp - tool-less install and removal, returns to position
- CNC D16T aluminum - light and strong at just 45 g
- Hard-anodized finish - durable and corrosion-resistant
- Two colors - Black and Golden Khaki
Technical Specifications
| Material | D16T aluminum alloy (CNC-milled) |
| Finish | Hard-anodized |
| Colors | Black, Golden Khaki |
| Product Code | B-16 |
| Weight | 45 +/- 5 g |
| Dimensions (L x W x H) | 92 x 42 x 15 mm (+/- 2 mm) |
| Interface | Picatinny / MIL-STD-1913 |
| Mounting | Quick-detach clamp |
| Operating Temperature | -50 to +50 C |
What's Included: (1) Zenitco B-16 Picatinny Rail Extension
