SAG High Side-Rail Marksman Optic Mount - 1913 Mount for Marksman Sporting Platforms

CNC-Machined Aluminum | 17-Slot 1913 Rail | 20 MOA | Steel Clamp & Recoil Lug

In short: A high-profile 17-slot side-rail mount with a 20 MOA built-in cant, for marksman platforms range use scoped at long range.

Overview

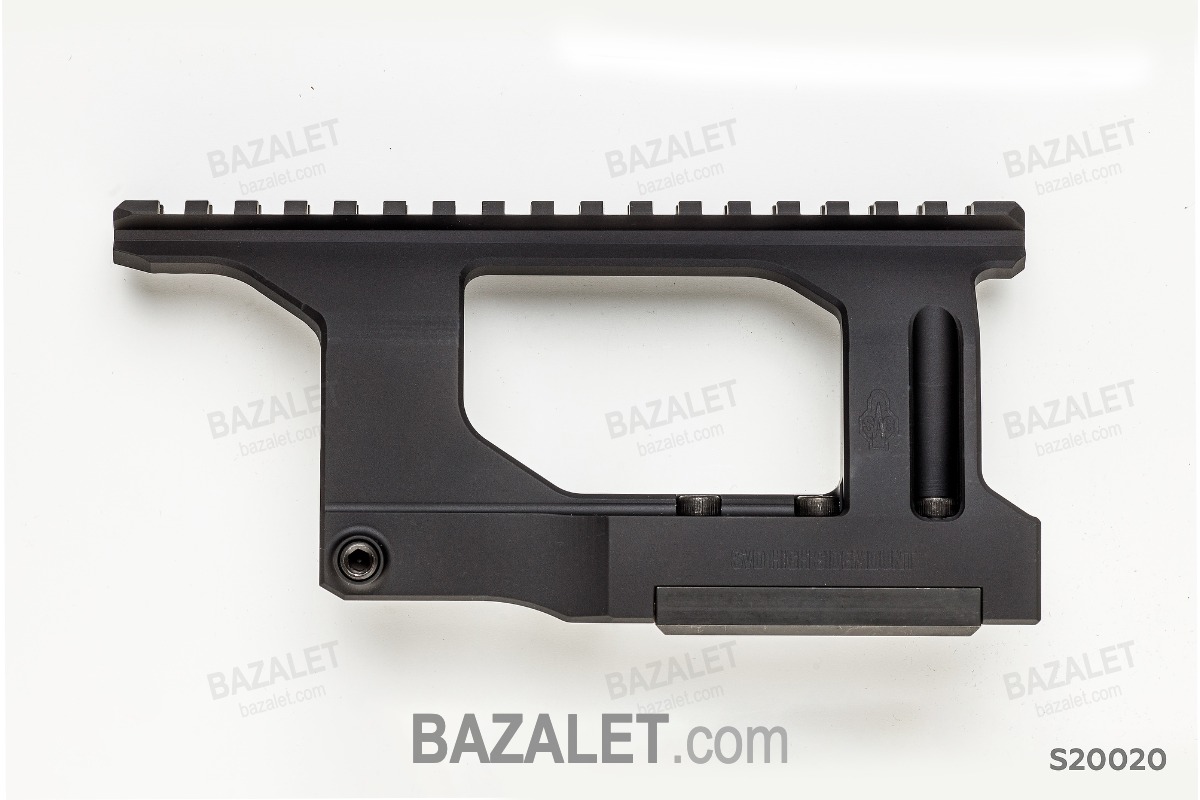

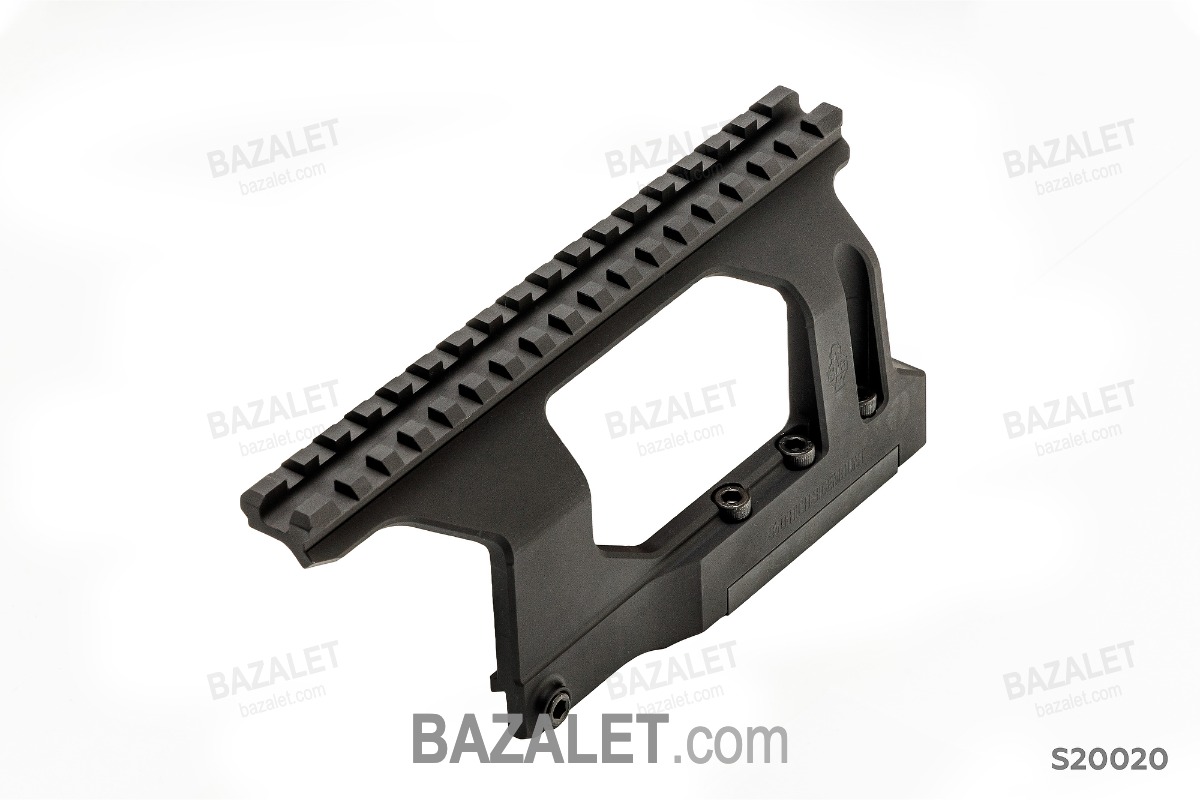

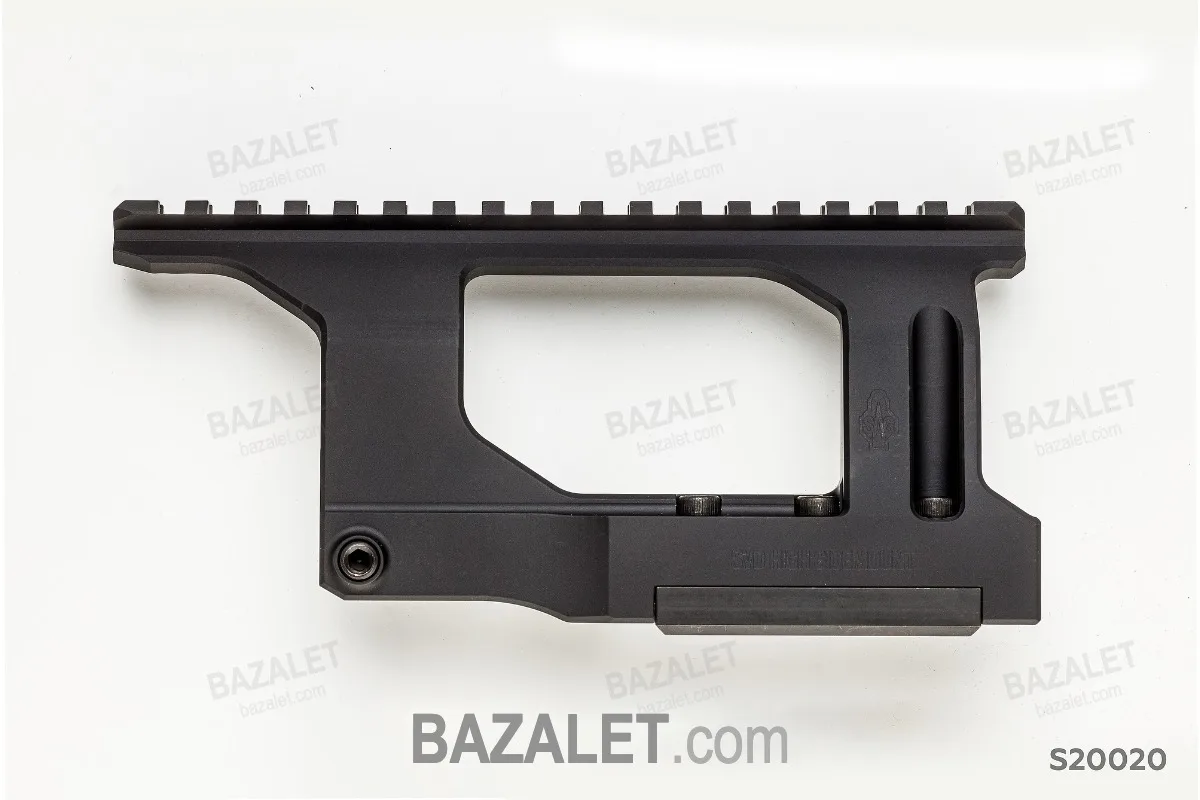

The S20020 is the long-range member of the side-rail family. The 17-slot 1913 rail is built with 20 MOA of forward cant, which hands back about twenty minutes of elevation to the scope's internal adjustment - the difference between running out of turret at distance and having room left over.

The high profile raises the optical axis, which suits large-objective scopes and gives a cheek weld that works with an adjustable stock or a raised comb.

The body is CNC-milled from high-strength aluminum alloy; both the clamping tooth and the recoil lug are steel, which is what keeps a heavy scope in place under repeated recoil. It clamps to the standard side rail with a 4 mm hex key at 4 N·m (35 inch-pounds). A low-profile version of the same mount is the S20021.

Key Advantages

No modification required - mounts to the standard side rail
17-slot 1913-MIL-STD rail - fits a wide range of optics
20 MOA elevation - built for extended-range precision range use
High profile - comfortable cheek-to-optic alignment
Steel clamp & recoil lug - handles recoil with a secure, repeatable lock-up
Does not block iron sights or disassembly

Technical Specifications

Material	High-Strength Aluminum Alloy (CNC-milled), steel clamping tooth & recoil lug
Product Code	SAG-S20020
Rail Standard	1913-MIL-STD, 17 slots
Rail Angle	20 MOA
Profile	High
Mounting	Standard side rail (screw clamp)
Tightening Torque	4 N·m (35 inch-pounds), 4 mm hex key

Compatibility

Designed for the standard side rail of marksman sporting platforms. See the compatibility filter on this page to confirm fitment for your specific platform.

What's in the Box

(1) SAG High Side-Rail Marksman Optic Mount
(1) Installation Manual

Frequently Asked Questions

Why a 20 MOA rail?

The 20 MOA angle gives you extra elevation range for long-distance precision range use.

What is the difference between the High and Low versions?

The High version sits higher for a more comfortable cheek-to-optic alignment with larger optics; the Low version sits closer to the bore.

Do I need to modify my carbine?

No - it installs on the standard side rail with no permanent modifications.

Will it handle recoil?

Yes - the steel clamping tooth and steel recoil lug are designed for a secure, repeatable lock-up under recoil.
