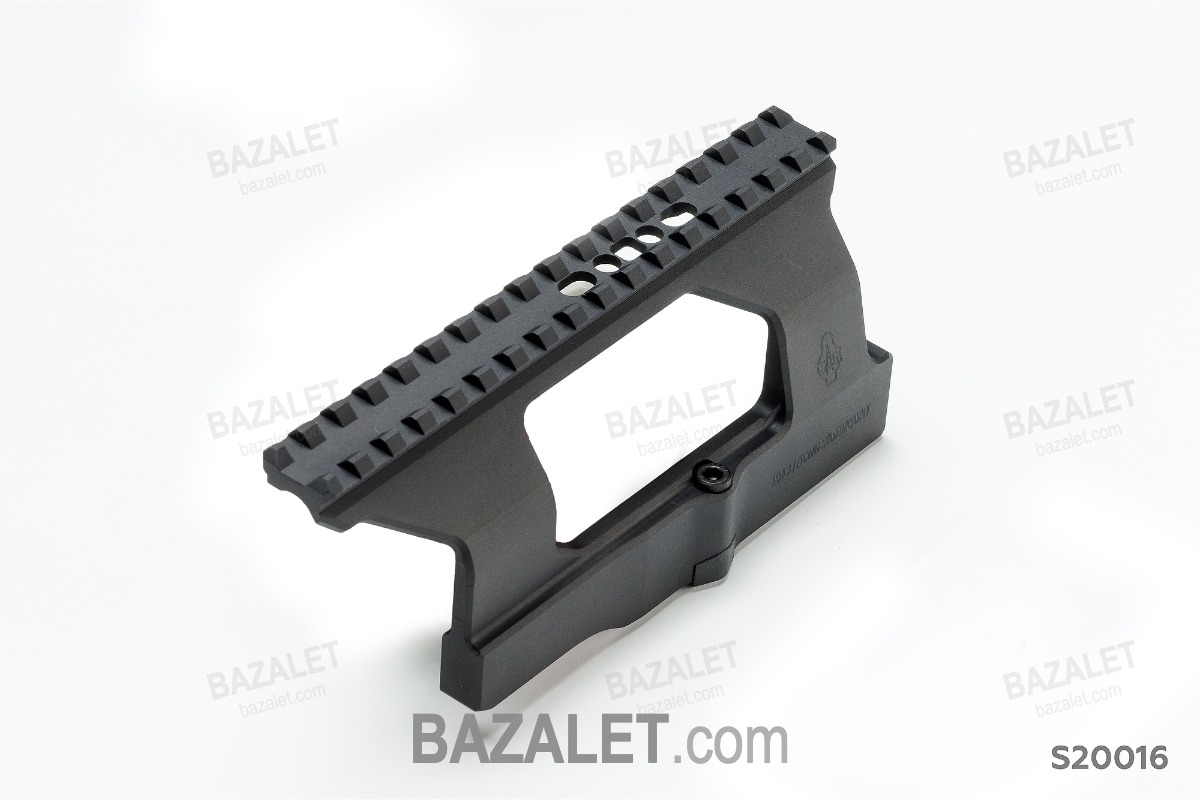

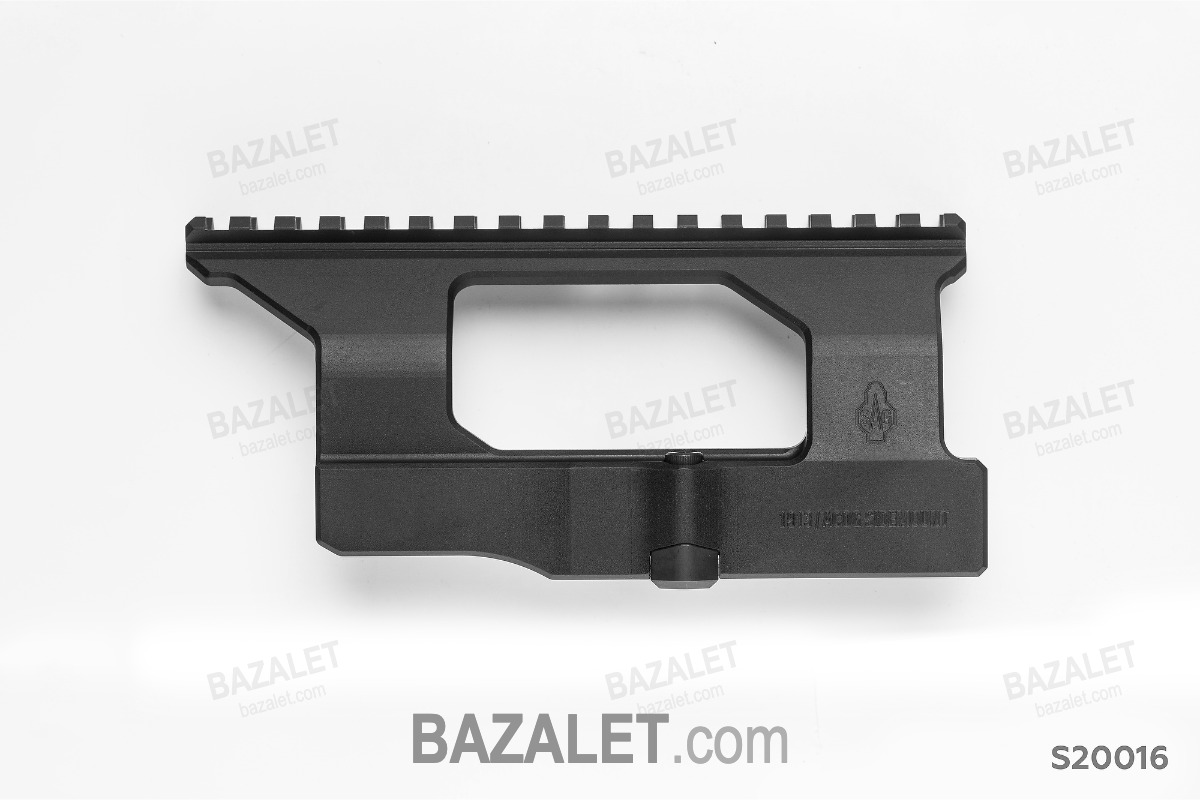

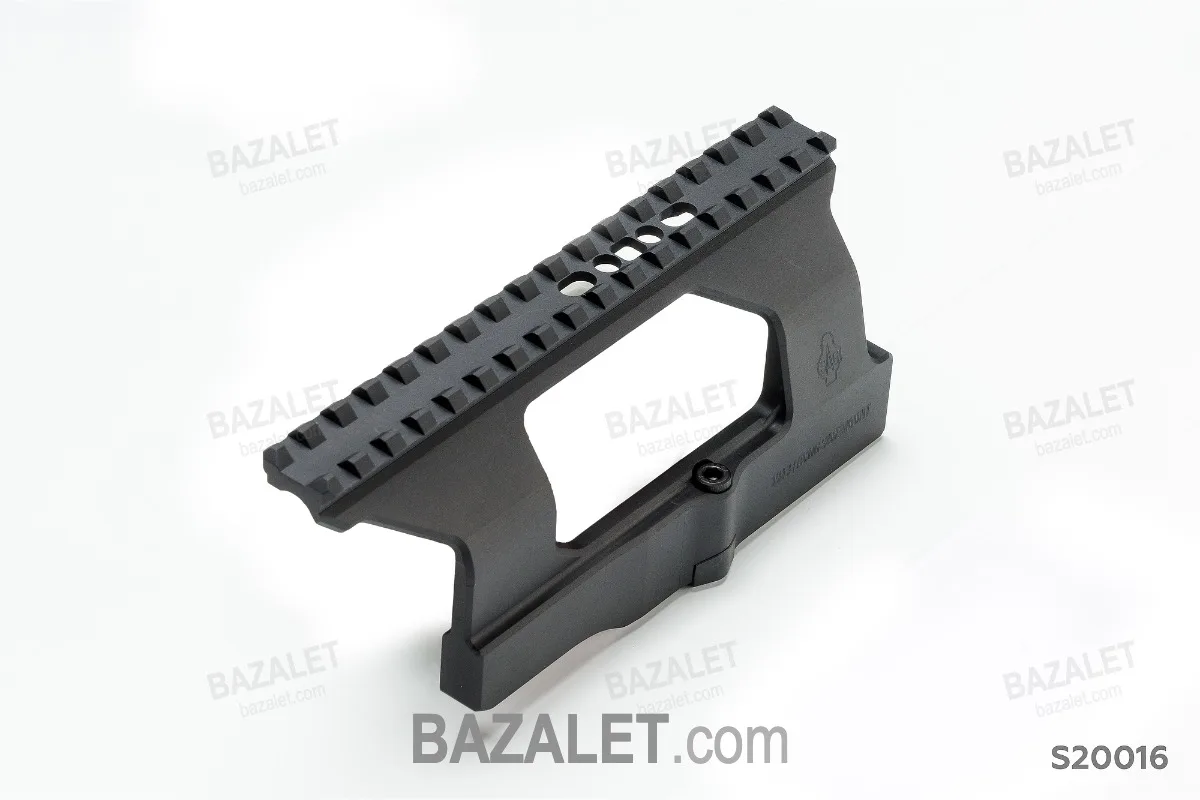

SAG Side-Rail ACOG Optic Mount - 1913 Mount for Sporting Platforms

CNC-Machined Aluminum | 17-Slot 1913 Rail | 0 MOA | ACOG / Primary Arms Prism Interface

In short: A CNC-aluminum side-rail mount that puts a 17-slot 1913 rail over the receiver at 0 MOA, sized around Trijicon ACOG and Primary Arms prism optics.

Overview

The S20016 clamps onto the standard side rail and carries a full-length 17-slot 1913 rail across the top of the receiver. Seventeen slots is a lot of real estate: it lets a long-eye-relief prism optic be positioned exactly where the shooter's head naturally sits, rather than wherever a two-slot mount happens to place it.

The rail sits at 0 MOA, which is the right choice for a red dot or a prism optic used inside a few hundred metres - the optic's own adjustment range does the work and nothing is given away to a built-in cant.

The body is milled from high-strength aluminum alloy and the clamping tooth is steel, so the part of the mount that takes the load against the rail is the part that resists wear. It tightens with a 4 mm hex key to 4 N·m (35 inch-pounds) - no permanent modification to the platform, and the mount comes off exactly as easily as it went on.

Key Advantages

No modification required - mounts to the standard side rail
17-slot 1913-MIL-STD rail - 0 MOA, fits red dots to full-size scopes
Integrated ACOG prism interface - direct fit for Trijicon ACOG / Primary Arms
Does not block iron sights - retain your backup sights
Does not obstruct disassembly - clean the carbine without removing the mount
Aluminum body, steel clamp - lightweight, secure, repeatable lock-up

Technical Specifications

Material	High-Strength Aluminum Alloy (CNC-milled), steel clamping tooth
Product Code	SAG-S20016
Rail Standard	1913-MIL-STD, 17 slots
Rail Angle	0 MOA
Optic Interface	Trijicon ACOG / Primary Arms prism
Mounting	Standard side rail (screw clamp)
Tightening Torque	4 N·m (35 inch-pounds), 4 mm hex key

Compatibility

Designed for the standard side rail with non-railed top cover. See the compatibility filter on this page to confirm fitment for your specific sporting platform.

What's in the Box

(1) SAG Side-Rail ACOG Optic Mount
(1) Installation Manual

Frequently Asked Questions

Do I need to modify my carbine?

No - the mount installs on the standard side rail with no permanent modifications.

What optics does it fit?

The 17-slot 1913-MIL-STD rail fits everything from red dots to full-size scopes, plus a direct Trijicon ACOG / Primary Arms prism interface.

Will it block my iron sights?

No - it does not block the iron sights and does not obstruct disassembly of the carbine.

How is it secured?

With a steel clamp and M5 screw, tightened to 4 N·m (35 inch-pounds) using a 4 mm hex key.

How does shipping work?

US orders are fulfilled and delivered through our partner's domestic US logistics network. Delivery is not express, but it is reliable and fully guaranteed.

Is this a genuine SAG part?

Yes. Bazalet is an official dealer and every item is supplied by Sureshot Armament Group.

Mount Your Optic the Right Way

In Stock Guaranteed US Delivery CNC-Machined Quality

General

Brand SAG

Manufacturer Part Number (MPN) SAG-S20016

Condition New

Material High-Strength Aluminum Alloy (CNC-milled), steel clamping tooth

Mounting & Rails

Mounting Standard side rail (screw clamp)
