SAG Low Side-Rail Marksman Optic Mount - CNC Aluminum 1913 Mount (20 MOA)

Name: SAG Low Side-Rail Marksman Optic Mount - CNC Aluminum 1913 Mount (20 MOA)
Brand: SAG (Sureshot Armament Group)
SKU: SAG-S20021
Price: 269 USD
Availability: InStock

Brand: SAG (Sureshot Armament Group)

Product Code: SAG-S20021

Availability: In Stock

SKU: SAG-S20021

MPN: SAG-S20021

$269.00
Qty

0 reviews0

SAG Low Side-Rail Marksman Optic Mount - 1913 Mount for Marksman Sporting Platforms

CNC-Machined Aluminum | 17-Slot 1913 Rail | 20 MOA | Steel Clamp & Recoil Lug | Low Profile

In short: A low-profile 17-slot side-rail mount with a 20 MOA built-in cant - the same long-range geometry as the S20020, closer to the bore.

Overview

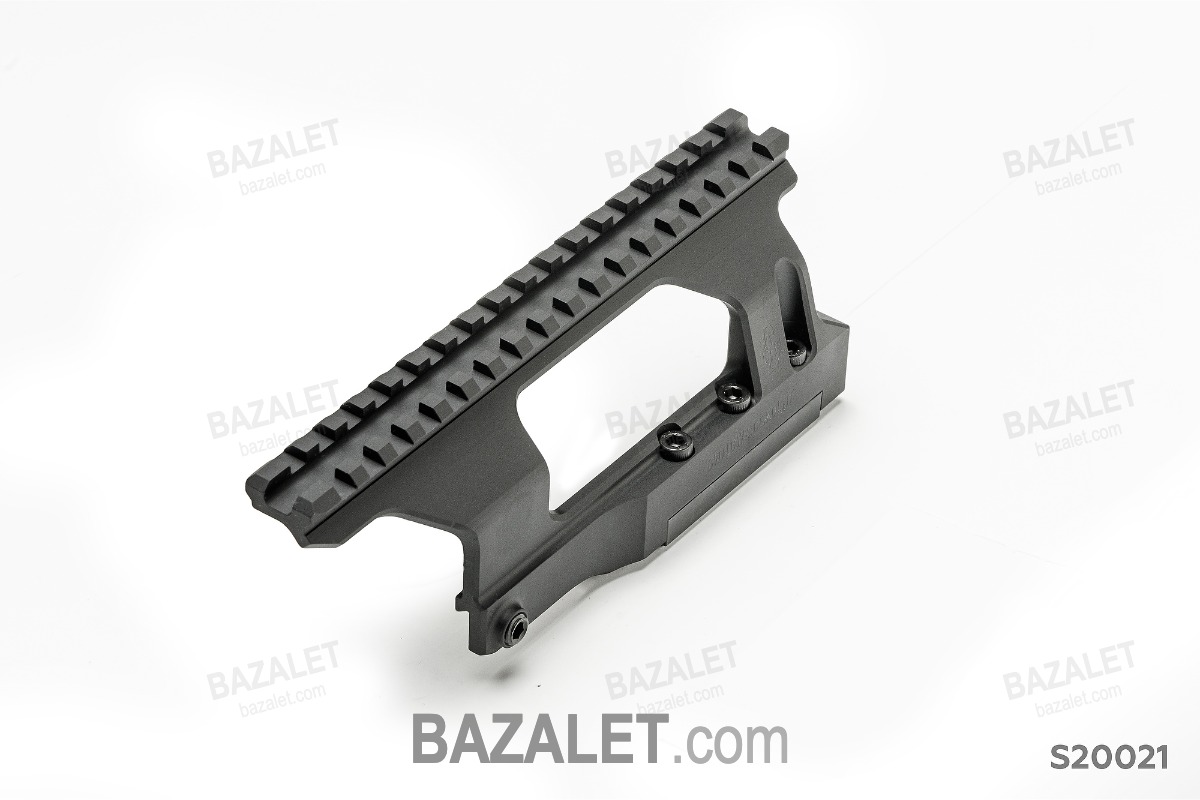

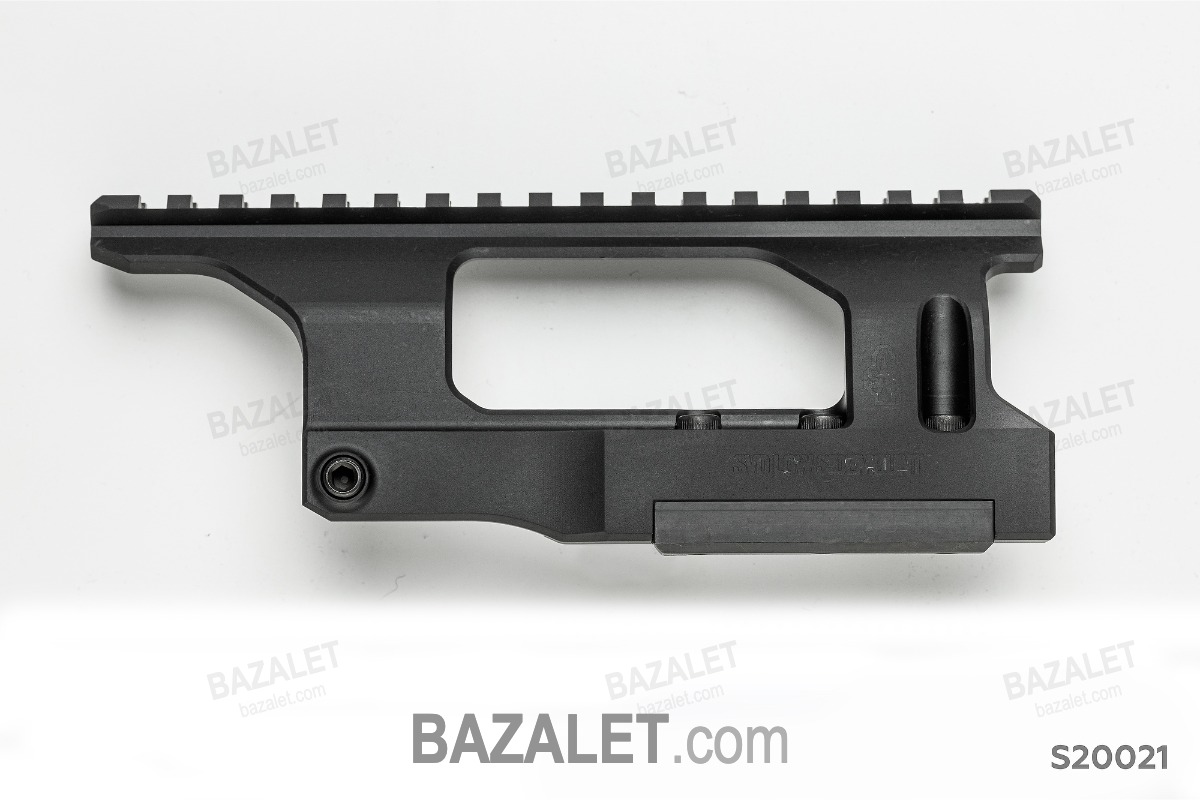

The S20021 is the low-profile version of SAG's 20 MOA marksman mount. The rail is the same: 17 slots of 1913-MIL-STD with twenty minutes of forward cant built in, so a scope keeps its elevation range in reserve for distance instead of spending it getting to zero.

What differs is height. The low profile puts the optical axis closer to the bore, which suits compact scopes and LPVOs and gives a natural cheek weld on a standard comb without a riser. If your scope has a large objective bell or you run a raised comb, the high-profile S20020 is the better match.

The body is CNC-milled high-strength aluminum alloy with a steel clamping tooth and steel recoil lug. It fits the standard side rail of marksman sporting platforms and tightens with a 4 mm hex key to 4 N·m (35 inch-pounds).

Key Advantages

Low profile - keeps the optic close to the bore for a natural cheek weld
17-slot 1913-MIL-STD rail - fits a wide range of optics
20 MOA elevation - built for extended-range precision range use
Steel clamp & recoil lug - handles recoil with a secure, repeatable lock-up
Does not block iron sights - retain your backup sights
No carbine modification - installs on the standard side rail

Technical Specifications

Material	High-Strength Aluminum Alloy (CNC-milled), steel clamping tooth & recoil lug
Product Code	SAG-S20021
Rail Standard	1913-MIL-STD, 17 slots
Rail Angle	20 MOA
Profile	Low
Mounting	Standard side rail (screw clamp)
Tightening Torque	4 N·m (35 inch-pounds), 4 mm hex key

Compatibility

Designed for the standard side rail of marksman sporting platforms. See the compatibility filter on this page to confirm fitment for your specific platform.

What's in the Box

(1) SAG Low Side-Rail Marksman Optic Mount
(1) Installation Manual

Frequently Asked Questions

What is the difference between the Low and High versions?

The Low version keeps the optic close to the bore for a natural cheek weld; the High version sits higher for larger optics. Note: the Low mount must be removed for disassembly of the carbine, while the High mount does not require removal.

Why a 20 MOA rail?

The 20 MOA angle gives you extra elevation range for long-distance precision range use.

Do I need to modify my carbine?

No - it installs on the standard side rail with no permanent modifications.

Will it handle recoil?

Yes - the steel clamping tooth and steel recoil lug are designed for a secure, repeatable lock-up under recoil.

How does shipping work?

US orders are fulfilled and delivered through our partner's domestic US logistics network. Delivery is not express, but it is reliable and fully guaranteed.

Is this a genuine SAG part?

Yes. Bazalet is an official dealer and every item is supplied by Sureshot Armament Group.

Low, Solid, Precise

In Stock Guaranteed US Delivery CNC-Machined Quality
