SAG S20075 Railed Top Cover for SVD, Tigr and NDM86
- $849
In short: The SAG S20075 railed top cover provides a low 1913-MIL-STD optic path for SVD, Tigr and NDM86 platforms while the dovetail-mounted side section remains installed during routine servicing.
Compatibility checkpoint
- Confirmed platforms: SVD, Tigr and NDM86.
- Required platform interface: compatible side-rail dovetail.
- Main rail: 1913-MIL-STD, 16 slots, 0 MOA.
- Detachable rear-cover rail: 1913-MIL-STD, 9 slots.
Selection rule: Confirm the SVD/Tigr/NDM86 platform family and a compatible side-rail dovetail before ordering.
Purpose
S20075 positions compatible optics low over the platform and keeps the side-mounted optic base in place during routine servicing.

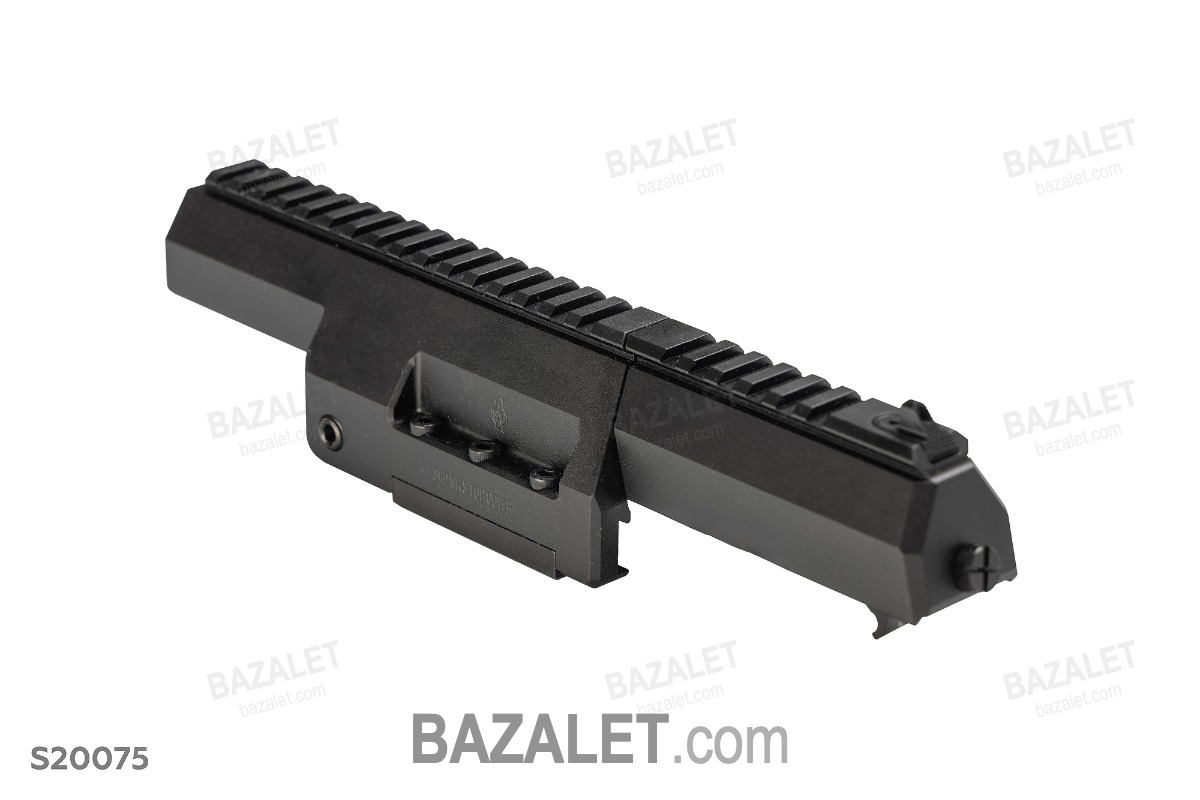

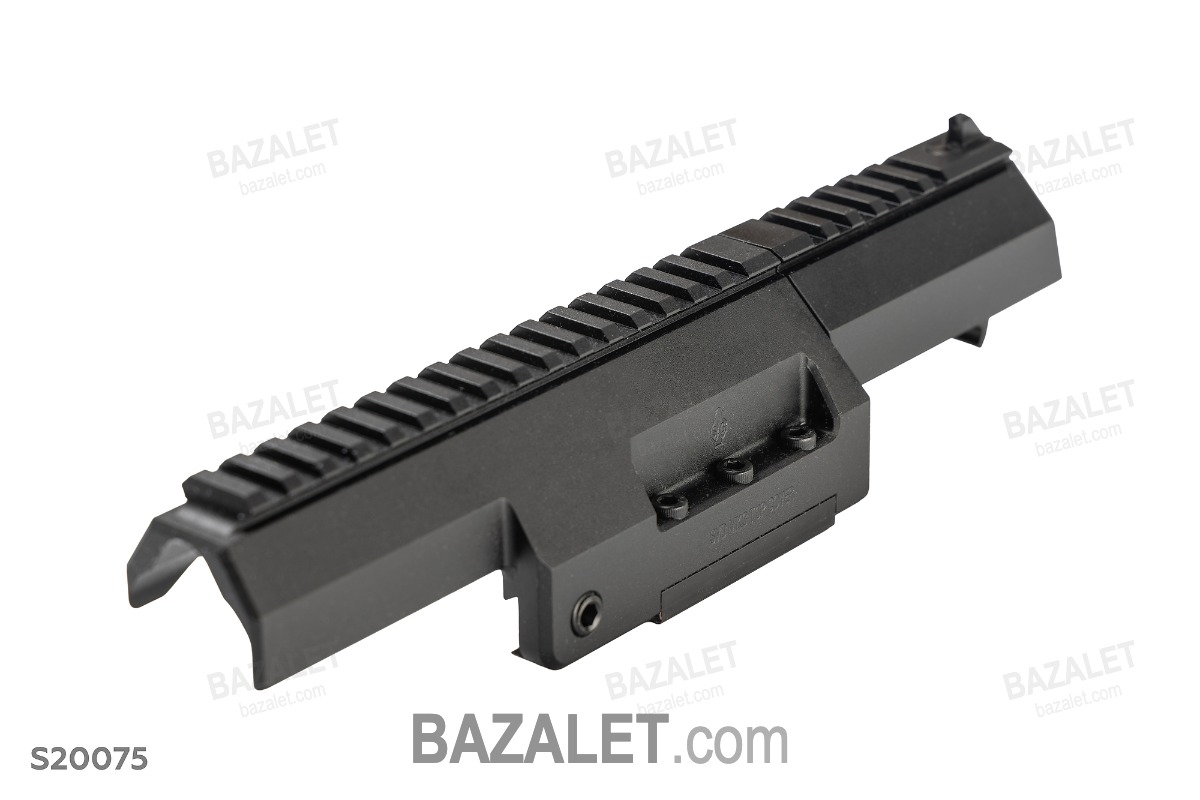

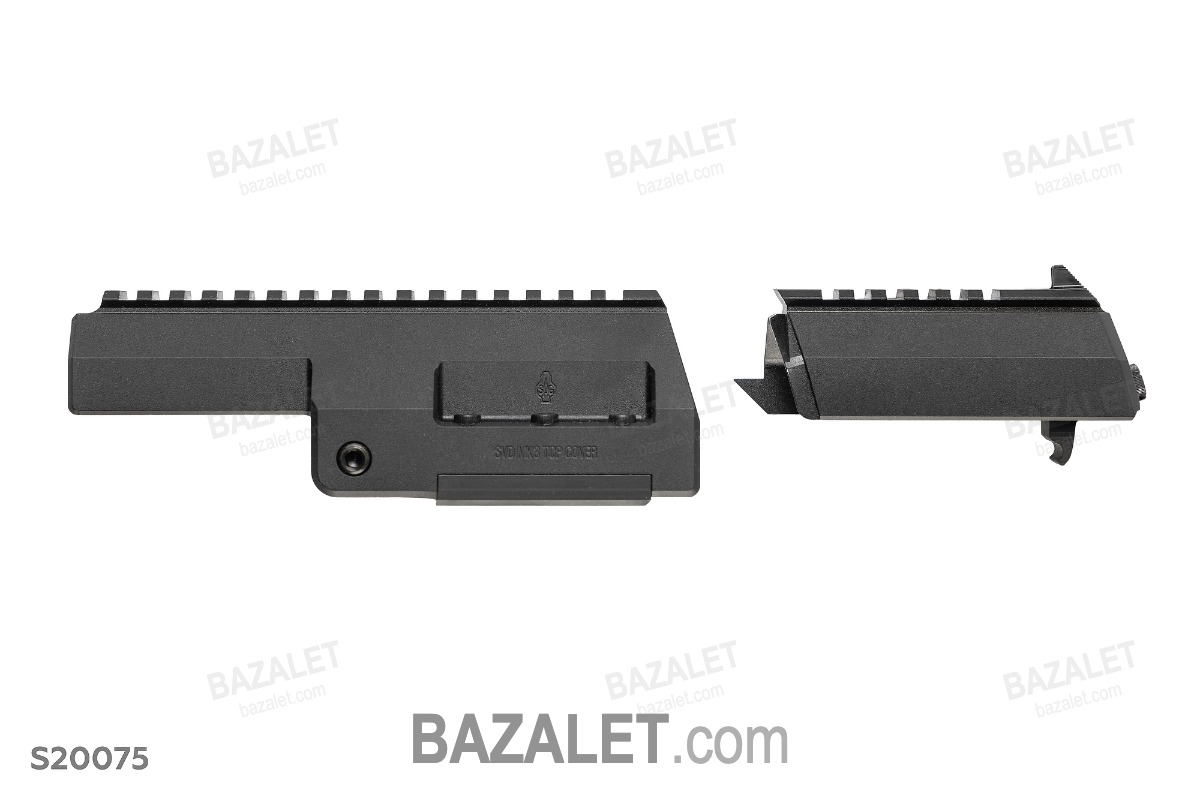

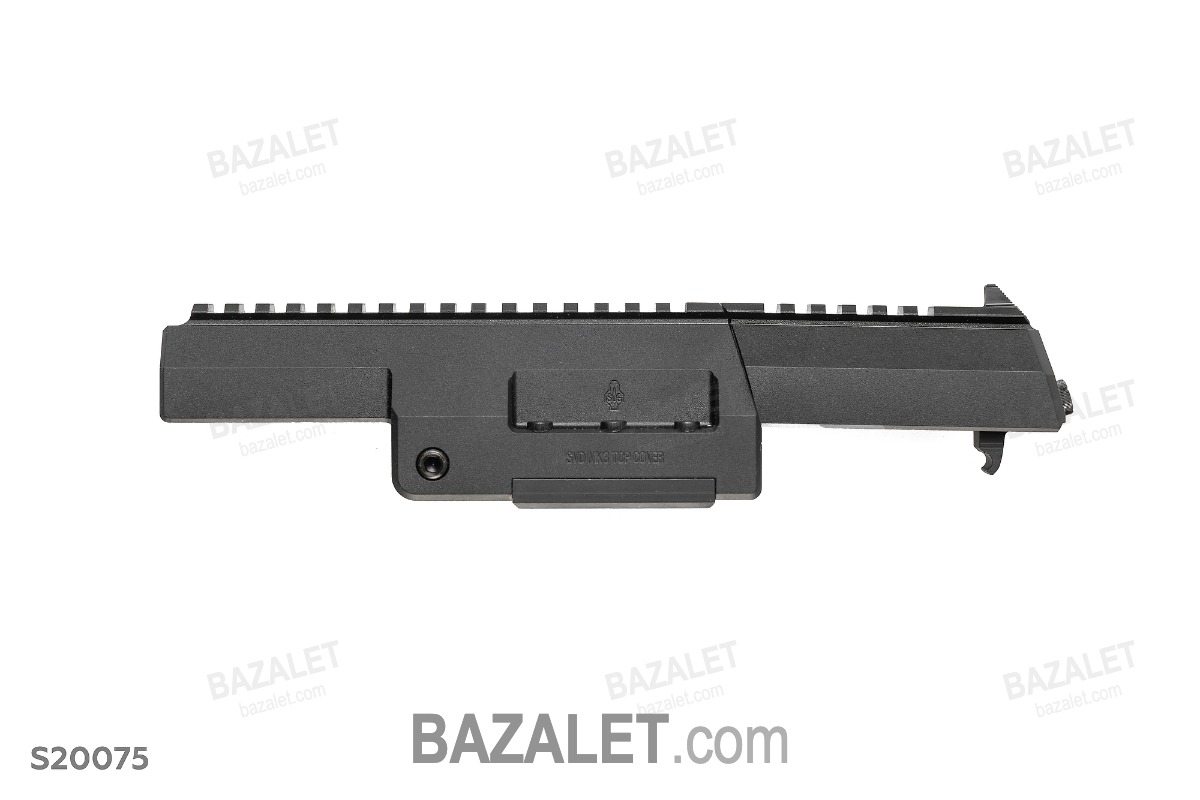

Three-part construction
- Side-mounted optic base for the platform dovetail.
- Recoil-spring strut that supports the detachable rear cover and spring mount.
- Detachable rear cover with its positioning screw.
Technical specifications
| Model | S20075 |
|---|---|
| Body | CNC-milled high-strength aluminum alloy |
| Clamping tooth and recoil lug | Steel |
| Main rail | 1913-MIL-STD, 16 slots, 0 MOA |
| Rear-cover rail | 1913-MIL-STD, 9 slots |
What's in the Box
| SAG S20075 three-part railed top-cover system × 1 | Manufacturer package |
Installation
Mount the optic base to the compatible side-rail dovetail and assemble the strut and detachable rear cover according to the SAG installation manual. Confirm secure positioning before attaching an optic.
Frequently asked questions
Which platforms are confirmed for SAG S20075?
S20075 is designed for SVD, Tigr and NDM86 platforms with a compatible side-rail dovetail.
How many 1913 rail slots are provided?
The main 0 MOA rail has 16 slots, and the detachable rear-cover rail has 9 slots.
Does the optic base stay installed during routine servicing?
Yes. The dovetail-mounted side section remains in place while the rear cover is detached.
What are the three principal sections?
The assembly includes the side-mounted optic base, recoil-spring strut and detachable rear cover with positioning screw.
