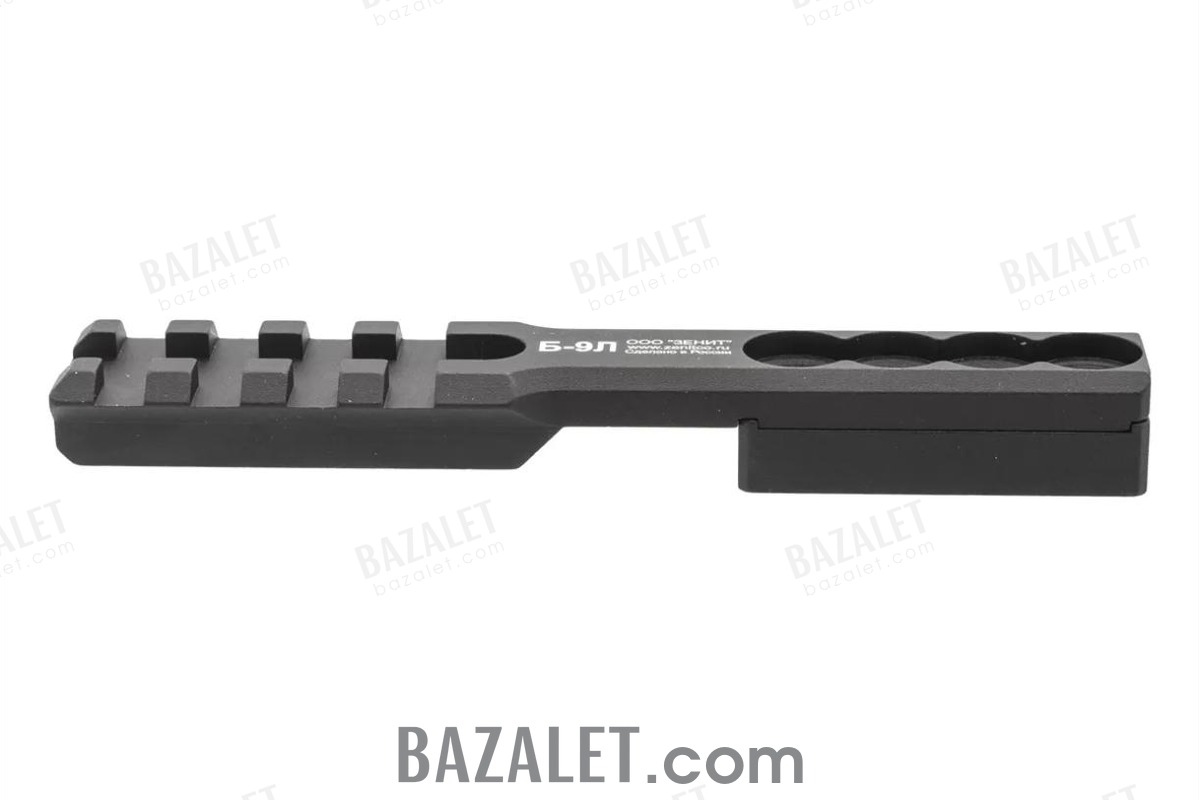

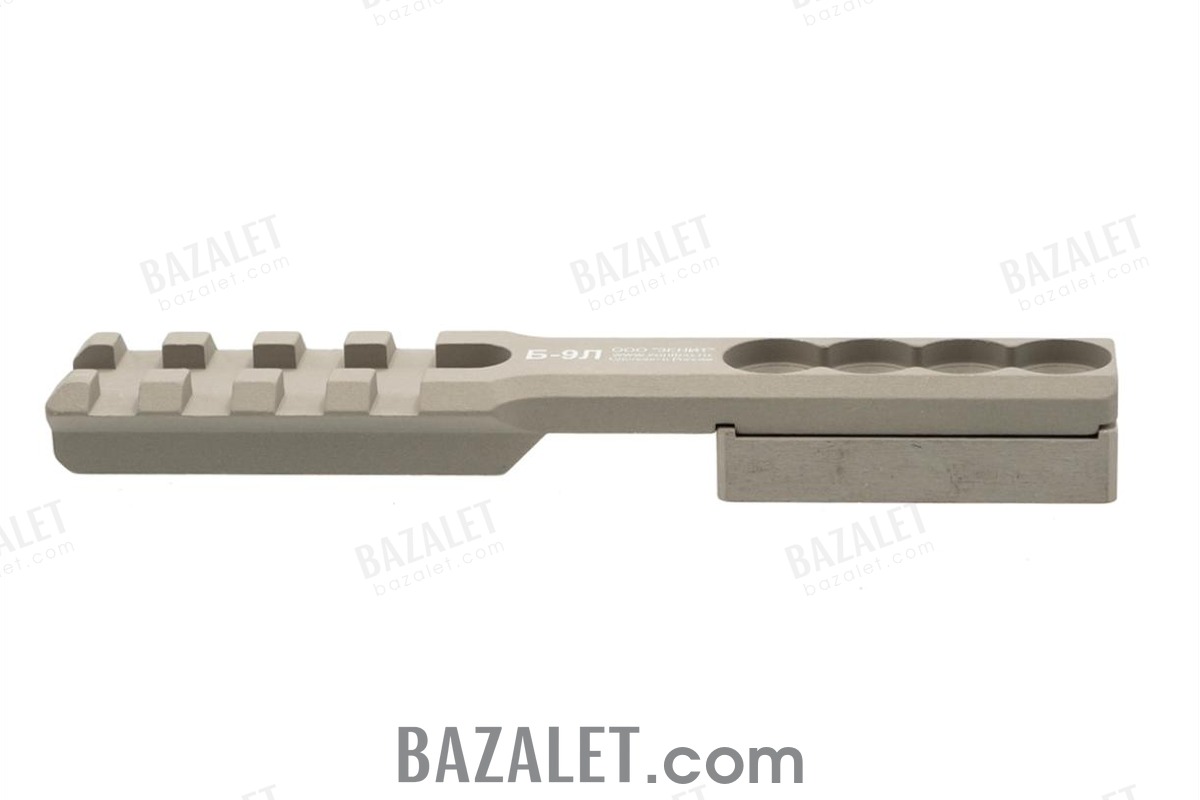

Zenitco B-9L Light Mount

In short: the Zenitco B-9L is a compact CNC-milled D16T aluminum adapter that clamps directly onto the Bazis dovetail rail of Zenitco Sport, Joker, and "U" / "L" handguards. It forms a Picatinny mounting point as close to the bore as possible for a Klesch-series underbarrel light or an LTSU aiming module.

Overview

The B-9L puts a light or an aiming module directly onto a Bazis guide, without a Picatinny adapter in between. It suits the Sport and Joker handguards and every handguard carrying the U or L suffix.

The point of the design is height: mounting straight on Bazis brings the light as close to the barrel as the handguard allows, so it sits inside the silhouette instead of hanging below it.

The kit is modular. A spacer, a short cam clamp and a long cam clamp are supplied along with two M5x9 screws, so the same bracket can be configured for different Bazis positions. In its fullest configuration it measures 115 x 21 x 18 mm and weighs 45 g.

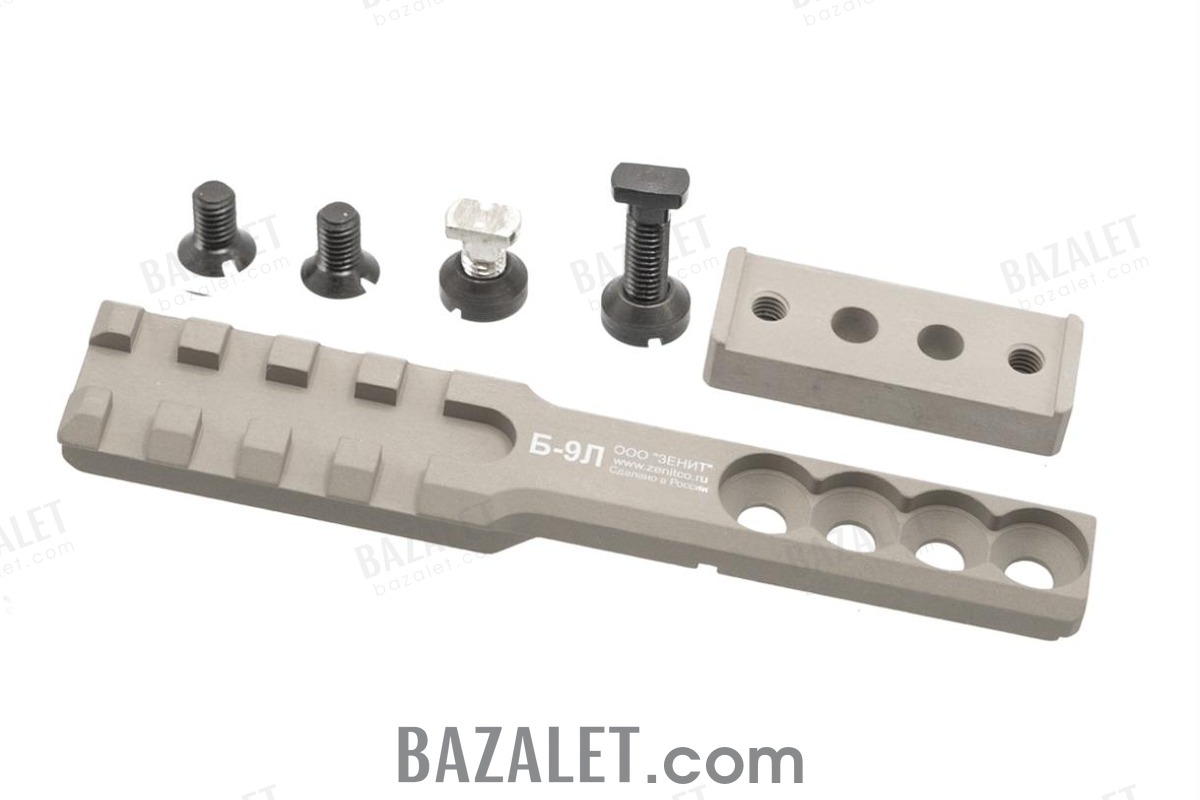

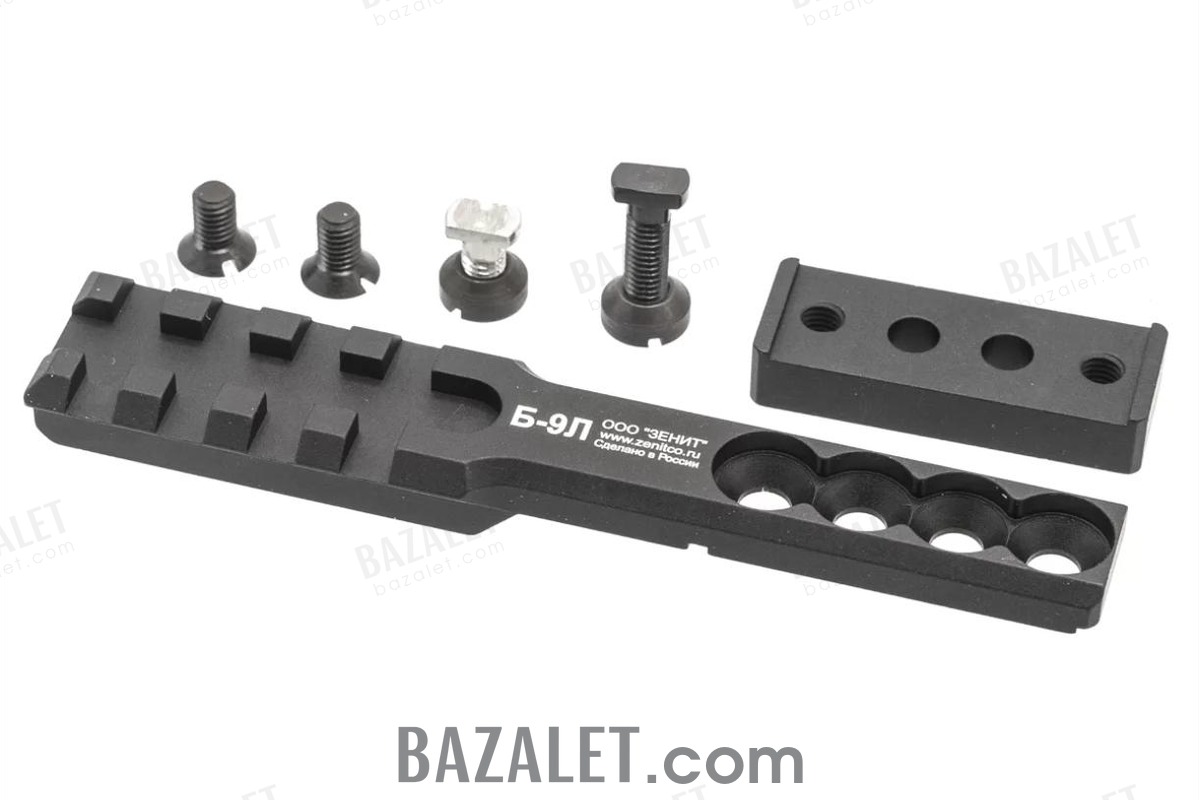

What's in the Box

✓Zenitco B-9L Rail	x 1
✓Spacer	x 1
✓M5x9 Screws	x 2
✓Short Cam Clamp	x 1
✓Long Cam Clamp	x 1
✓User Manual	x 1

Compatibility: fits the Bazis dovetail rail found on the Zenitco Sport and Joker handguard series and on handguards carrying the "U" and "L" designations. An included spacer lets the bracket clear the barrel band when needed - it can be used with or without the spacer depending on the handguard.

Key Advantages

Places a light or LTSU aiming module as close to the bore as possible
Clamps onto the Bazis dovetail rail with cam levers - no drilling
Two cam clamps (short and long) plus a spacer for different handguards
High or low mounting position options
One-piece CNC-milled D16T aluminum
Very light at 45 g; wide operating range -50 to +50 °C

Technical Specifications

Brand	Zenitco
Type	Bazis-rail to Picatinny light bracket
Material	D16T aluminum alloy (CNC)
Mounting	Cam-lever clamp on the Bazis dovetail rail (high / low position)
Fits	Zenitco Sport / Joker handguards and "U" / "L" handguards
Weight	45 ± 5 g (max configuration)
Dimensions	115 x 21 x 18 mm (± 5 mm, max configuration)
Operating temperature	-50 to +50 °C
Warranty	60 months
Colors	Black, Desert
MPN	Zen-B-9L
Condition	New

In the Box

B-9L guide rail
Spacer
2 x M5 x 9 screws
Short cam clamp
Long cam clamp
User manual

Frequently Asked Questions

What is the B-9L for?

It forms a Picatinny mounting point on the Bazis dovetail rail of Zenitco Sport / Joker / U / L handguards, so you can fit a Klesch-series light or an LTSU aiming module close to the bore.

How does it attach?

It clamps onto the Bazis dovetail rail with a cam lever - a short and a long cam clamp are included - and can be set in a high or low position. No drilling is required.

What is the spacer for?

The spacer lets the bracket clear the barrel band on some handguards. Depending on your handguard, the B-9L can be used with or without it.

What colors are available?

Black and Desert.

Do I need a Picatinny adapter with the B-9L?

No. That is the point of it - the B-9L mounts directly on the Bazis guide and forms the Picatinny point itself.

Is this a genuine Zenitco part?

Yes - it is an original Zenitco B-9L bracket with guaranteed US delivery.
