Zenitco B-9AK V2.0 Quick-Detach Picatinny Mount
- $99
Available Options

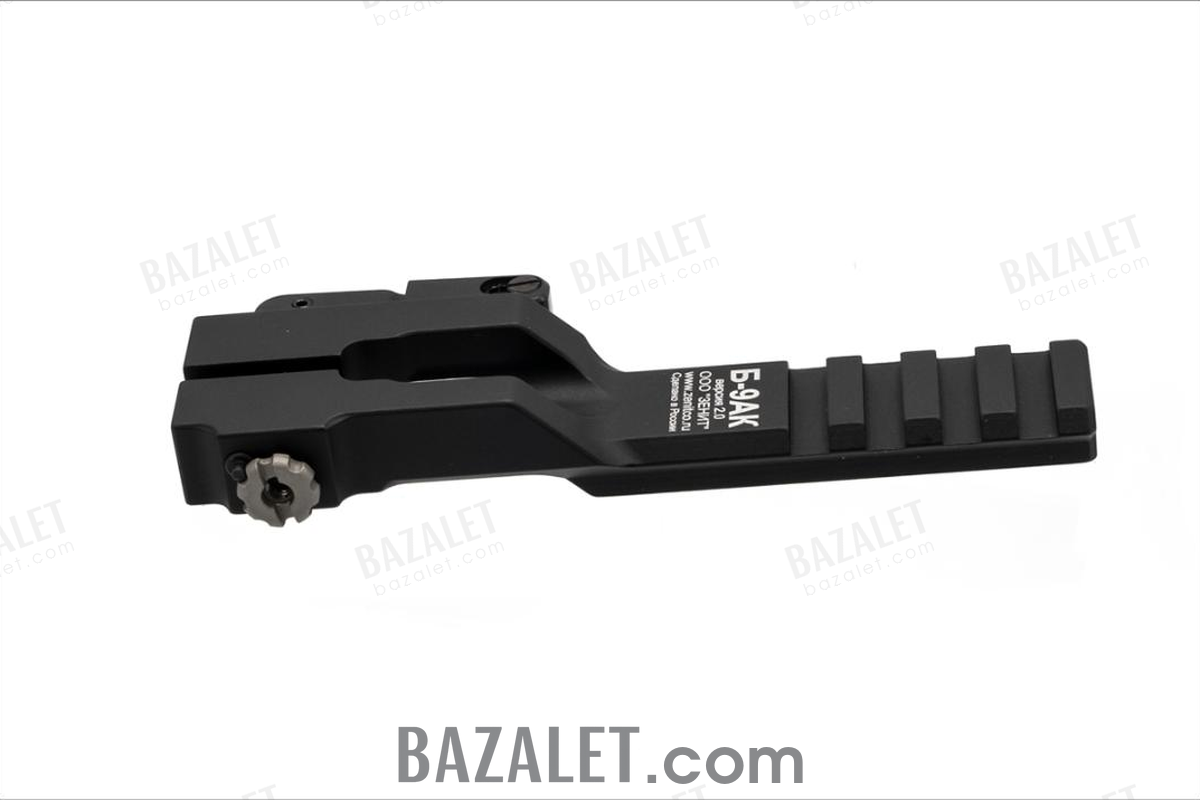

In short: The Zenitco B-9AK V2.0 is a quick-detach bracket that installs on the lower Picatinny rail of seven documented Zenitco handguards and creates an offset Picatinny mounting point for a compatible light.
Compatibility checkpoint
Install B-9AK only on the lower Picatinny rail of a documented receiving handguard:
Purpose and quick-detach system
The offset layout places the added Picatinny section beside the receiving rail. Version 2.0 uses a clamping lever with a safety catch, allowing removal and reinstallation without loosening the mounting screws.
Technical specifications
| Material | D16T aluminum alloy |
|---|---|
| Weight | 59 g, manufacturer lists +5 g tolerance |
| Dimensions | 122 × 43 × 18 mm, manufacturer lists +2 mm tolerance |
| Operating range | −50°C to +50°C |

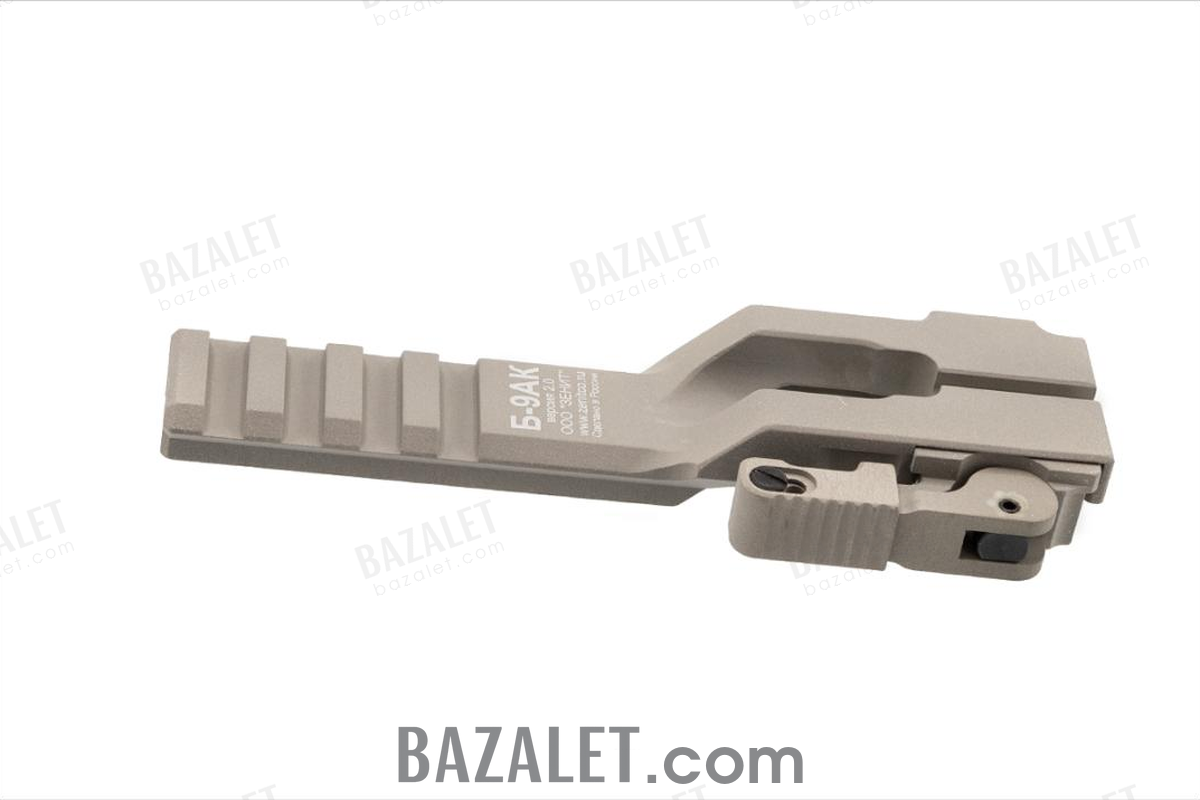

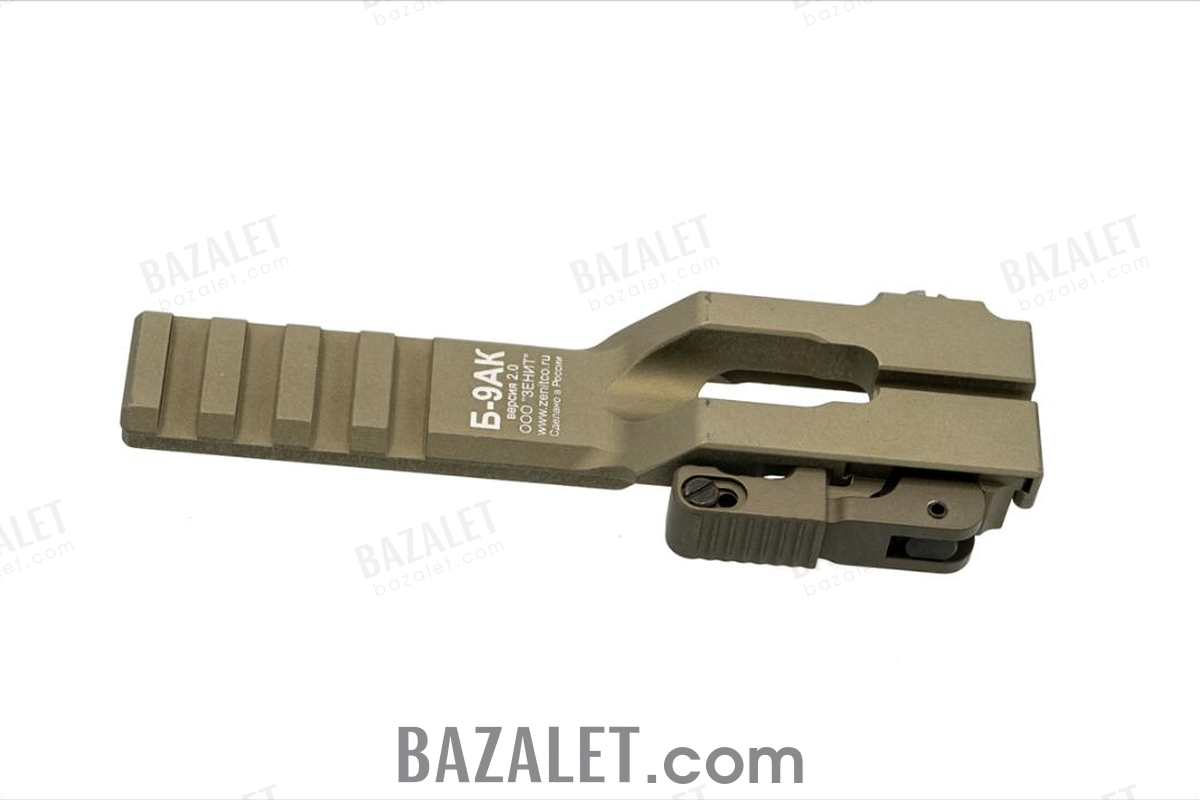

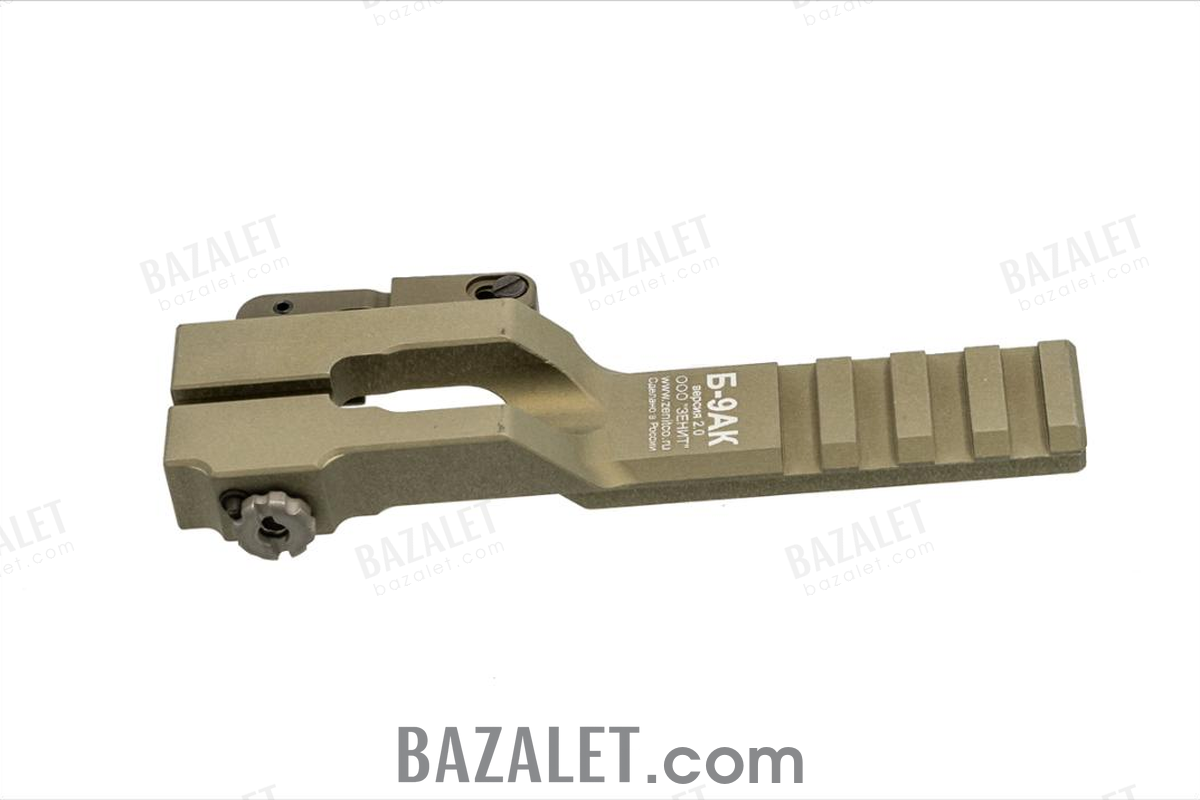

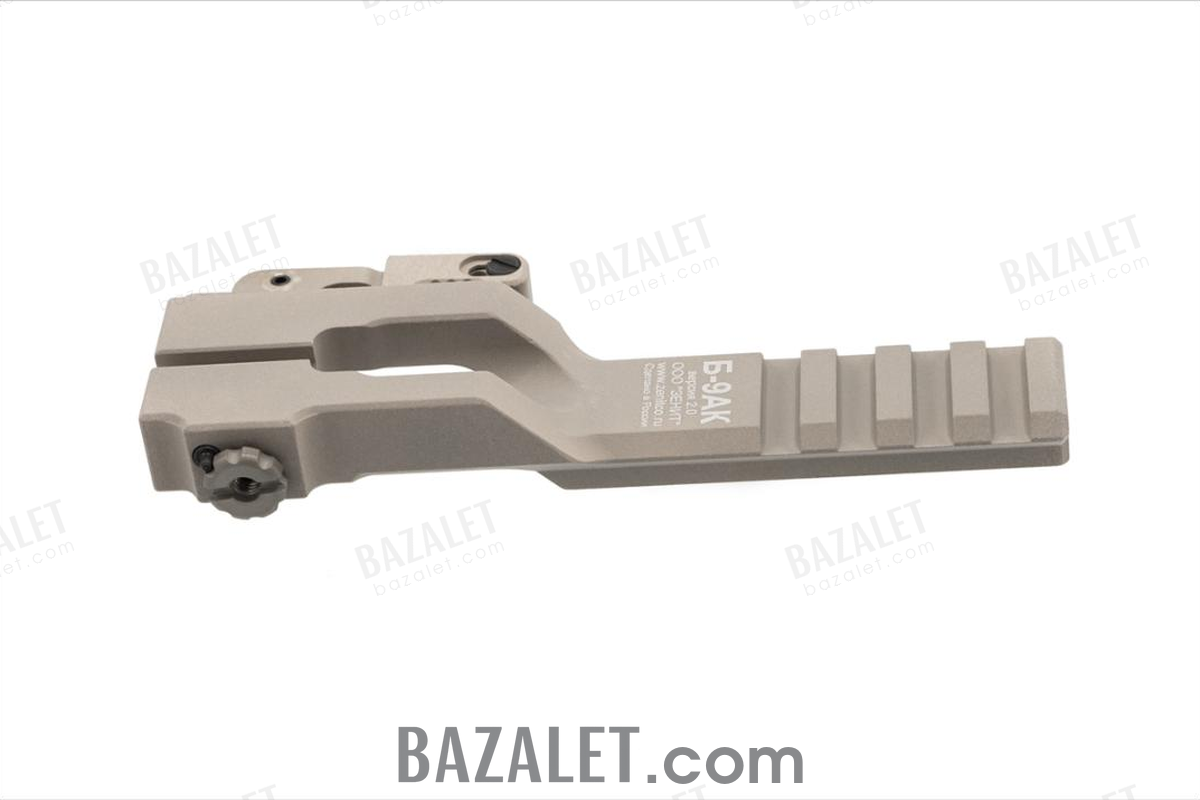

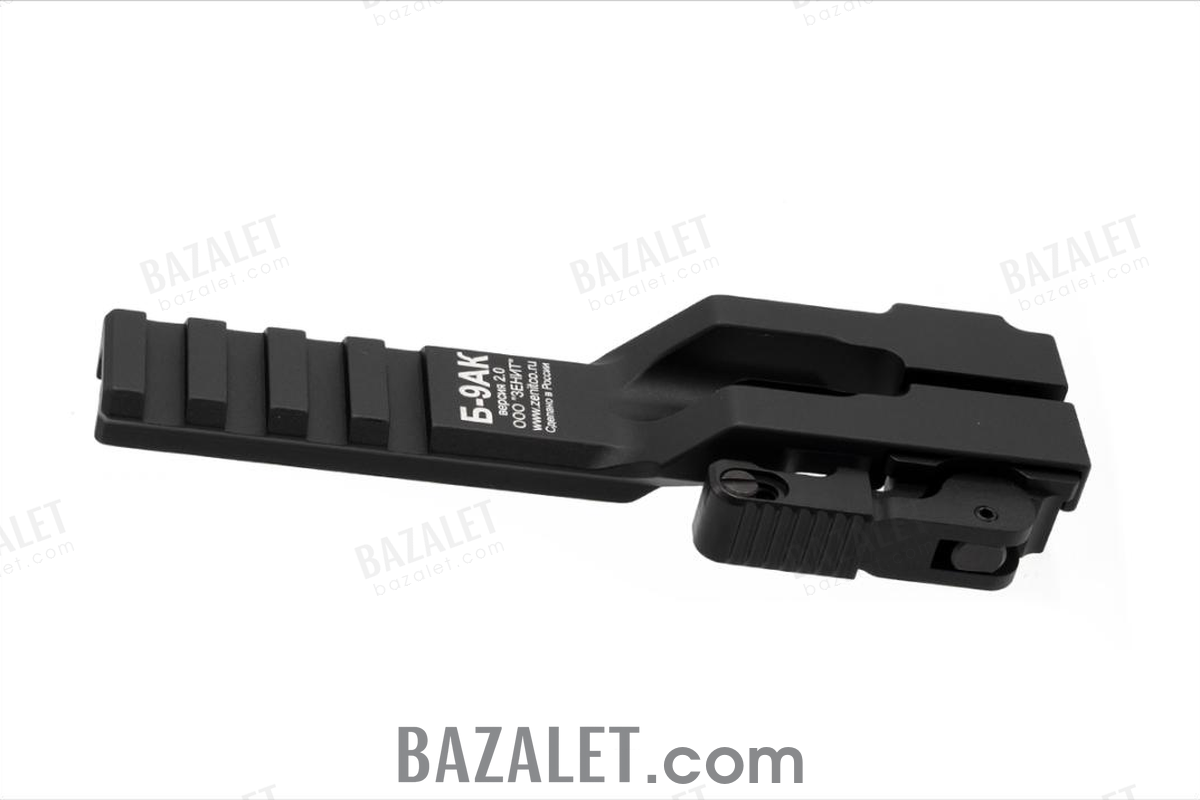

| Finish options | Black, Desert or Golden khaki |
| Manufacturer warranty | 60 months |
What's in the Box
- B-9AK V2.0 quick-detach mount — 1
- Operating manual — 1
Installation
- Pull the safety catch and open the clamping lever.
- Place the mount on the lower Picatinny rail and close the lever and catch.
- Check for movement. If adjustment is needed, press the screw catch and turn the screw clockwise with a slotted screwdriver until the movement is removed.
- Confirm secure engagement before attaching a compatible light.
Frequently asked questions
Which receiving rails are documented?
B-10M, B-10U, B-20U, B-21M, B-21U, B-30 and B-30U lower Picatinny rails.
Is this the quick-detach version?
Yes. B-9AK V2.0 uses a lever with a safety catch.
How is clamp movement corrected?
Press the screw catch and turn the adjustment screw clockwise with a slotted screwdriver until movement is removed, then make sure the catch returns to the screw slot.
What is included?
One B-9AK V2.0 quick-detach mount and one operating manual.
