In brief

The B-33 is more than just an attractive rail: it is a precision-engineered solution from Zenitco, designed to preserve point-of-impact consistency after repeated removal and refitting, and to provide a reliable mounting base for optics.

• Material: milled D16T aluminum alloy.
• Weight: 215 ± 10 g.
• Overall dimensions: (300 × 50 × 37) ± 2 mm.
• Picatinny rail length above the barrel: 170 ± 5 mm.
• Operating temperature range: ?50 °C to +50 °C.
• Kit contents: B-33 dust cover, rear of the return mechanism with guide rod, 4 × M5×7 screws, manual.

Why an integrated Picatinny rail?

In short — to allow quick, secure mounting of sights and other devices without losing zero when the cover is removed and reinstalled. Practical benefits include:

• Ease of optics installation (binary/monoblock mounts, red dots, low-profile scopes, etc.).
• Zero consistency — the design minimizes shift in the point of impact after repeated removal/installation of the cover.
• Does not obstruct iron sights — the rail is positioned so it does not block the sight picture when using the standard rear sight/front sight.

Design and mounting compatibility

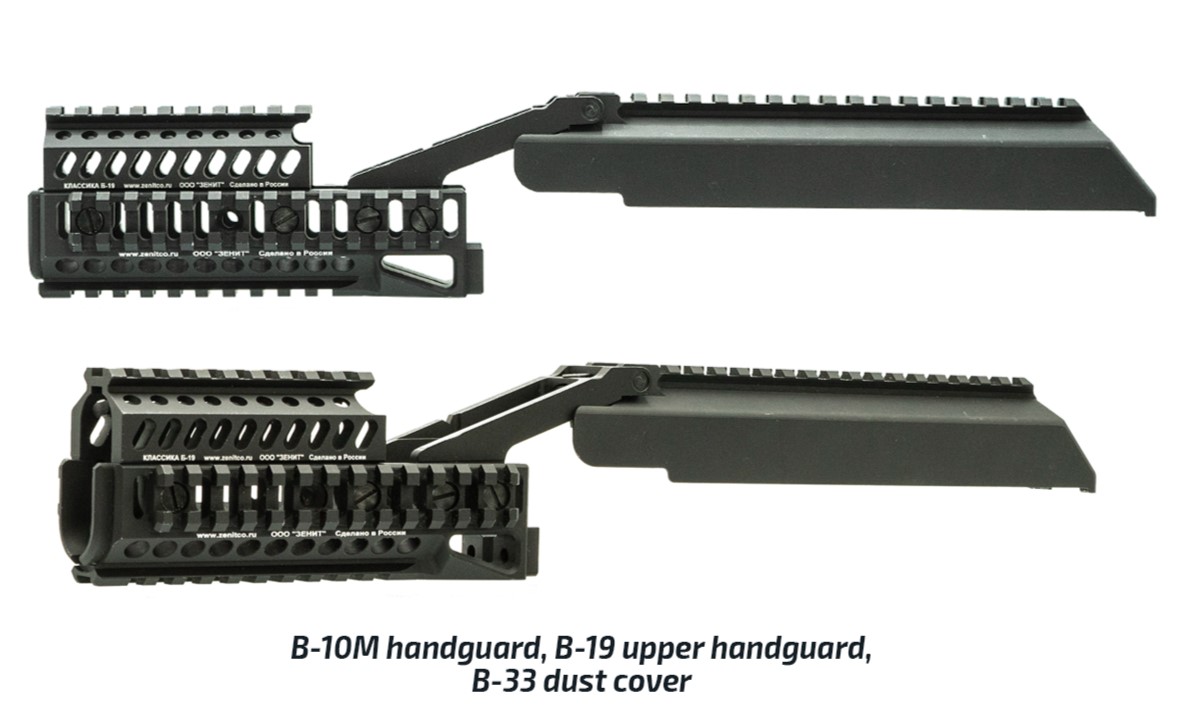

The B-33 mounts to compatible handguard modules (B-10M, B-10U, B-10L, B-30 or B-30U) using five attachment points: four screws secure the cover to the handguard, and a fifth screw (through a steel insert) additionally secures the cover to the receiver. This approach reduces play and ensures a rigid, repeatable mounting platform.

Brief installation notes

1. Remove the standard receiver cover and the return spring assembly; set the gas-block retainer and rear sight to the upper position.
2. Unscrew the mounting screws on the bracket (an Allen key is included).
3. Insert the B-33 into the grooves of the installed bracket (B-10M or B-30) and fasten it with four M5×7 screws.
4. Install the steel insert and tighten the insert screw (use thread locker recommended).
5. Secure the remaining screws that fix the cover to the handguard, reinstall the bolt carrier and the return spring assembly supplied with the B-33 kit, then close and lock the cover with the return spring retainer.

Note: the longer (fifth) screw and the steel insert provide an additional support point on the receiver — this is the key to stability and repeatable zero.

Benefits of the B-33 (practical advantages)

• Retains zero after remove/replace cycles — valuable in the field and in competition.
• Clean Picatinny work surface above the barrel — enough room for medium-size optics and quick-detach mounts.
• Lightweight yet rigid material — a good balance of mass and strength.
• Preserves sight picture — the rail is designed so as not to interfere with standard mechanical sights.

Drawbacks and cautions

• Not recommended for use with a muzzle device damper. The geometry and operating characteristics of the B-33 assume a certain thermal and mechanical regime; adding a damper may affect compatibility and behavior under fire.
• Requires accurate installation. An improperly fastened cover will produce play and loss of repeatability; using a thread locker on the fifth screw is advisable.
• Metal conducts heat. The aluminum cover transfers heat from the barrel to mounted optics/mounts more readily — during intense shooting consider thermal barriers for heat-sensitive devices.
• Cost and repairability. Milled aluminum and precision joints are more expensive and less forgiving under rough use than basic plastic covers.

Who will benefit most from the B-33?

• Practical shooters and competitors who need fast optics changes with retained zero.
• Tactical users and instructors who frequently remount devices and require a stable platform.
• Custom builders and upgraders looking to replace the standard cover with a functional optic base.
• Users of red-dot sights and small optics where accurate, repeatable mounting above the barrel is critical.

Maintenance and care tips

• Use the recommended screws and apply thread locker to the fifth (insert) screw to reduce the risk of loosening during use.
• Regularly check screw torque and the condition of the finish: if the anodizing is chipped or scratched, restore the coating to prevent corrosion.
• Monitor optic temperature during sustained firing — use thermal pads or mounts with thermal breaks if needed.
• Store the kit in a dry place and avoid aggressive chemicals on the railÂ’s finish.

Bottom line — what the shooter gets

The B-33 from Zenitco is a pragmatic upgrade: minimally complex to install yet maximally effective for those who want a reliable, repeatable optic mounting platform on an AK. If you work with optics often, swap sights quickly, or simply want a stable, professional foundation — the B-33 will fit neatly into your toolkit.
