ZENITCO “VZOR” Red Dot Sight Mounting Heights: Complete Guide

The “Vzor” red dot sight series allows users to configure different mounting heights depending on shooting tasks, weapon setup, and additional accessories. Choosing the correct mounting height directly affects shooting comfort, sight acquisition speed, ergonomics, and compatibility with magnifiers.

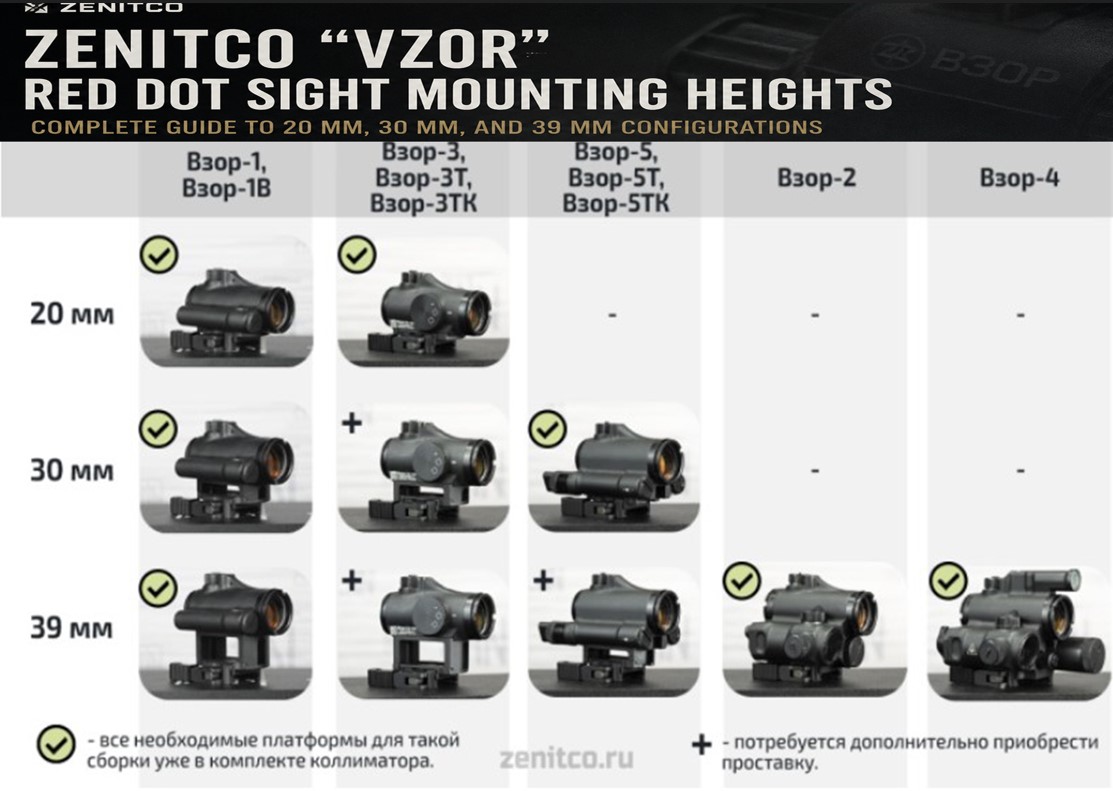

In this article, we will take a detailed look at the three most popular mounting heights for “Vzor” optics:

• Low — 20 mm
• Medium — 30 mm
• High — 39 mm

The medium and high configurations are especially relevant for users planning to use the “Vzor” magnifier. Depending on whether a riser is installed, the optical axis height above the top surface of the Picatinny rail may be either 30 mm or 39 mm.

This article does not cover the ultra-low 17 mm configuration, which can be achieved by mounting the “Vzor-1” (-1V) or “Vzor-3” (-3T, -3TK) on the PN-1 platform, as well as derivative configurations with additional spacers. A separate article is dedicated to those setups.

Why Mounting Height Matters

The mounting height of a red dot sight affects several important aspects of weapon handling.

1. Shooting Comfort and Head Position

The higher the optic is mounted, the less the shooter needs to tilt their head downward. This becomes especially important when using modern tactical equipment such as:

• helmets;
• active hearing protection;
• protective masks;
• body armor;
• shooting glasses.

Lower mounting options are usually preferred by shooters who want the most compact setup and a more traditional cheek weld.

2. Faster Target Acquisition

Medium and high mounting configurations allow faster alignment between the eye and the reticle during dynamic shooting. This is particularly noticeable when engaging multiple targets or shooting under time pressure.

3. Magnifier Compatibility

If you plan to use a “Vzor” magnifier, maintaining the correct optical axis height is extremely important. That is why the 30 mm and 39 mm configurations are the most popular choices.

4. Weapon Ergonomics

Different weapon platforms and configurations may require different optic heights. There is no universal solution — the best setup depends on the shooter’s preferences and intended use.

Low Mounting Height — 20 mm

The low-profile configuration is ideal for shooters who prefer a traditional shooting stance and the most compact optic placement possible.

20 mm Configurations

Vzor-1 (-1V)

Mounted on the PB-1 platform (included in the package).

Vzor-3 (-3T, -3TK)

Mounted on the PB-1 platform (included in the package).

Vzor-5 (-5T, -5TK)

This mounting height is not available for these models.

Vzor-2 and Vzor-4

This mounting height is not available for these models.

Advantages of the Low Configuration

• minimal overall profile;
• traditional cheek weld;
• compact setup;
• excellent for classic rifle configurations.

Best Suited For

The low configuration is especially popular among shooters who prefer:

• compact builds;
• sport shooting;
• minimalist setups;
• traditional ergonomics.

Medium Mounting Height — 30 mm

The 30 mm height is considered one of the most versatile configurations. It offers a comfortable shooting position while maintaining excellent magnifier compatibility.

Many shooters consider this option the ideal balance between low and high mounting setups.

30 mm Configurations

Vzor-1 (-1V)

Mounted on the PB-1 platform with the PV-30 riser.

• Both the platform and riser are included in the standard package.
• In the “Carbine” package, the PV-30 riser is sold separately.

Vzor-3 (-3T, -3TK)

Mounted on the PB-1 platform with the PV-30 riser.

• The platform is included.
• The riser is sold separately.

Vzor-5 (-5T, -5TK)

Mounted on the PB-3 platform (included in the package).

Vzor-2 and Vzor-4

This mounting height is not available for these models.

Advantages of the Medium Configuration

• excellent versatility;
• comfortable cheek weld;
• good compatibility with magnifiers;
• comfortable during extended shooting sessions;
• fast reticle acquisition.

Recommended Use

The 30 mm setup is ideal for:

• tactical applications;
• dynamic shooting;
• magnifier use;
• versatile rifle builds.

High Mounting Height — 39 mm

The high mounting configuration provides the most upright head position and is especially popular in modern tactical setups.

This height significantly improves comfort when using tactical equipment and speeds up weapon handling during dynamic shooting.

39 mm Configurations

Vzor-1 (-1V)

Mounted on the PB-1 platform with the PV-39 riser.

• Both the platform and riser are included in the standard package.
• In the “Carbine” package, the PV-39 riser is sold separately.

Vzor-3 (-3T, -3TK)

Mounted on the PB-1 platform with the PV-39 riser.

• The platform is included.
• The riser is sold separately.

Vzor-5 (-5T, -5TK)

Mounted on the PB-3 platform with the “Vzor-5” riser.

• The platform is included.
• The riser is sold separately.

Vzor-2 and Vzor-4

The 39 mm height is available in the standard configuration.

The mount is integrated directly into the optic body.

Advantages of the High Configuration

• the most natural and comfortable head position;
• easier use with helmets and hearing protection;
• faster target transitions;
• improved comfort during prolonged weapon handling;
• excellent compatibility with magnifiers.

Best Suited For

The high mounting setup is commonly used for:

• tactical rifle configurations;
• operation with full gear and equipment;
• dynamic shooting;
• magnifier and auxiliary optic use.

Magnifier Compatibility

When using a magnifier, matching the optical axis height is extremely important. That is why the manufacturer offers multiple platform and riser combinations.

The most popular magnifier-compatible heights are:

• 30 mm;
• 39 mm.

These configurations allow shooters to:

• properly align optical axes;
• maintain a comfortable shooting posture;
• ensure fast and stable weapon handling.

How to Choose the Right Mounting Height

When selecting a mounting height, it is recommended to consider several factors.

Weapon Platform

Different rifle platforms may require different optic heights for maximum comfort.

Tactical Equipment

If you use helmets, hearing protection, or face protection, a higher mount is often more comfortable.

Shooting Style

• 20 mm is often preferred for traditional shooting styles.
• 30 mm is considered the most universal option.
• 39 mm is ideal for modern tactical setups.

Magnifier Usage

If you plan to use a “Vzor” magnifier, it is recommended to choose either the 30 mm or 39 mm configuration.

Conclusion

The “Vzor” red dot sight series offers extensive customization options for different shooting tasks and personal preferences.

Main mounting options:

• 20 mm — low-profile setup for traditional cheek weld and compact builds;
• 30 mm — versatile configuration with excellent magnifier compatibility;
• 39 mm — modern high-rise setup for tactical applications and maximum comfort.

Thanks to multiple platform and riser combinations, users can configure their optics to perfectly match their weapon, shooting style, and operational requirements.

Before making a final choice, it is recommended to determine:

• whether a magnifier will be used;
• whether shooting gear or helmets will be worn;
• which shooting posture feels most comfortable.

Choosing the correct mounting height will help maximize the effectiveness and comfort of using optics from the “Vzor” series.
