Zenitco Vzor-2 Multi-Visor with Visible and IR Aiming Modules
- $1 499
In short: Zenitco Vzor-2 combines a 1× red-dot optic with co-adjusted visible and infrared aiming modules in one D16T aluminum housing. It mounts to a Picatinny interface and supports three red-reticle patterns with ten brightness levels.
Compatibility checkpoint
The manufacturer documents compatibility with a standard Picatinny interface and night-vision equipment. Confirm available rail space and clearance for the 72 × 69 × 69 mm body before ordering.
Optic and aiming functions
The reticle can display a 1 MOA dot, a 34 MOA circle, or the circle-and-dot combination. Windage and elevation adjust in 1 MOA clicks. The visible 520 nm and infrared 850 nm modules are adjusted together and can be operated from the body or the included KV-D2 remote switch.
Technical specifications
| Brand / model | Zenitco Vzor-2 |
|---|---|
| Magnification | 1× |
| Objective diameter | 22 mm |
| Reticle | Red; 1 MOA dot, 34 MOA circle, or circle + dot |
| Brightness | 10 levels |
| Adjustment | 1 MOA per click |
| Visible module | 20 mW, 520 nm |
| Infrared module | 20 mW, 850 nm |
| Power | One CR123A 3 V battery |
| Material | D16T aluminum alloy; polymer lens covers |
| Mass | 243 ± 2 g without battery and protective covers |
| Dimensions | 72 × 69 × 69 mm ± 2 mm without protective covers |
| Operating range | −30°C to +50°C |
| Water resistance | Immersion up to 10 m |
| Manufacturer warranty | 12 months |

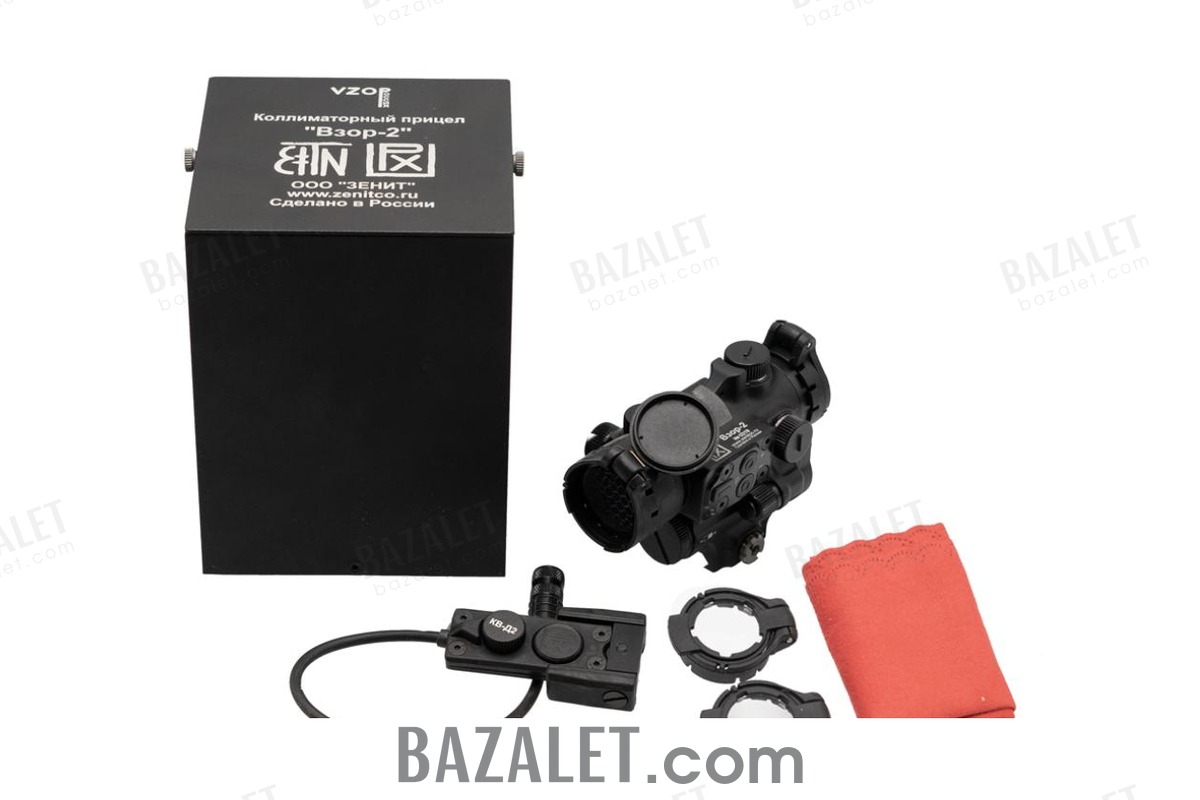

What's in the Box
- Vzor-2 multi-visor — 1
- CR123A battery — 1
- Protective lens covers — 4
- Anti-glare hood — 1
- KV-D2 remote switch — 1
- User manual — 1
- Cleaning cloth — 1
- Packaging — 1
Runtime note
The manufacturer states up to five years for the dot at medium brightness with the aiming modules off, or about ten hours for circle-and-dot at maximum brightness with an aiming module on. These figures assume room temperature and a suitable battery.
Frequently asked questions
Which mounting interface does Vzor-2 use?
The manufacturer documents a standard Picatinny interface.
Is it compatible with night vision?
Yes. Night-vision compatibility is included in the official specification.
Are the visible and IR modules adjusted separately?
No. The official instructions state that both modules are adjusted together.
Which battery is required?
One CR123A 3 V battery, included in the documented supplied set.
Installation
Confirm the required interface before installation: standard Picatinny rail through the integrated mount. Fit the component according to the manufacturer instructions, then verify the resulting interface or function: 1× multi-visor with visible 520 nm and infrared 850 nm aiming modules.
