Zenitco Vzor-4 Multi-Visor with Visible/IR Modules and IR Illuminator
- $1 999
In short: Zenitco Vzor-4 combines a 1× red-dot optic, co-adjusted visible and infrared aiming modules, and an 850 nm infrared illuminator in one D16T aluminum housing. It mounts to a Picatinny interface and supports three red-reticle patterns with ten brightness levels.
Compatibility checkpoint
The manufacturer documents compatibility with a standard Picatinny interface and night-vision equipment. Confirm available rail space and clearance for the 96 × 69 × 74 mm body before ordering.
Optic and aiming functions
The reticle can display a 1 MOA dot, a 34 MOA circle, or the circle-and-dot combination. Windage and elevation adjust in 1 MOA clicks. The visible 520 nm and infrared 850 nm modules are adjusted together. A separate 850 nm, 0.5 W infrared illuminator supports four selector modes, including combined IR-module and illuminator operation.
Technical specifications
| Brand / model | Zenitco Vzor-4 |
|---|---|
| Magnification | 1× |
| Objective diameter | 22 mm |
| Reticle | Red; 1 MOA dot, 34 MOA circle, or circle + dot |
| Brightness | 10 levels |
| Adjustment | 1 MOA per click |
| Visible module | 520 nm |
| Infrared module | 850 nm |
| Infrared illuminator | 0.5 W, 850 nm |
| Power | One 18650 rechargeable battery |
| Material | D16T aluminum alloy; polymer lens covers |
| Mass | 298 ± 2 g without battery and protective covers |
| Dimensions | 96 × 69 × 74 mm ± 2 mm without protective covers |
| Operating range | −30°C to +50°C |
| Water resistance | Immersion up to 1 m |
| Manufacturer warranty | 12 months |

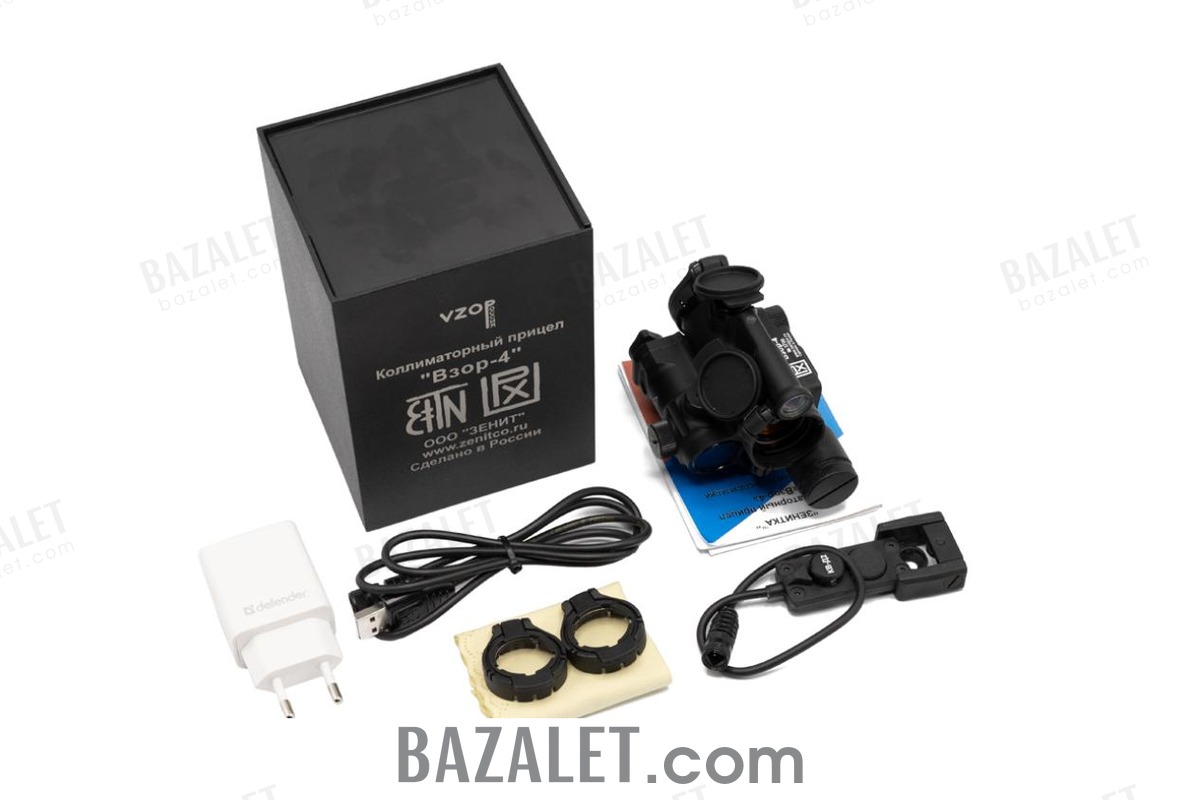

What's in the Box
- Vzor-4 multi-visor — 1
- 18650 rechargeable battery — 1
- Protective lens covers — 4
- KV-D2 remote switch — 1
- User manual — 1
- Cleaning cloth — 1
- Charger with cable — 1
- Packaging — 1
Runtime note
The manufacturer states up to five years for the dot at medium brightness with the aiming modules and illuminator off, or about twenty hours for circle-and-dot at maximum brightness with an aiming module on and the illuminator off. These figures assume room temperature and a suitable battery.
Frequently asked questions
Which mounting interface does Vzor-4 use?
The manufacturer documents a standard Picatinny interface.
Is it compatible with night vision?
Yes. Night-vision compatibility is included in the official specification.
Are the visible and IR modules adjusted separately?
No. The official instructions state that both modules are adjusted together.
Which battery is required?
One 18650 rechargeable battery, included with a charger and cable in the documented supplied set.
Installation
Confirm the required interface before installation: standard Picatinny rail through the integrated mount. Fit the component according to the manufacturer instructions, then verify the resulting interface or function: 1× multi-visor with visible 520 nm and infrared 850 nm modules plus 850 nm IR illuminator.
