Zenitco RK-4L Compact Vertical Grip for Bazis Rail
- $79
Available Options
In short: The Zenitco RK-4L is a compact vertical grip for the Bazis rail. It uses the supplied cam clamp on a standard Bazis guide and the supplied M5×9 screw on the reinforced Bazis products listed below. The sealed base provides a small internal storage compartment.
Compatibility checkpoint
- Interface: Zenitco Bazis rail.
- Standard Bazis guide: install with the supplied cam clamp.
- Reinforced Bazis guide: use the supplied M5×9 screw on Sport-1S, Sport-4S, Leader-S, B-10LS, DL-1S, DL-2S and DL-S Leader.
- Different interface: RK-4L does not mount directly to Picatinny, M-LOK or KeyMod. For Picatinny, choose the Zenitco RK-4.
The manufacturer also documents RK-L as the reinforcement adapter for the mounting point of L-series Bazis grips.
Purpose
RK-4L provides a compact vertical gripping surface without adding a separate Picatinny section. Its screw-off base closes a sealed compartment for small items.
Technical specifications
| Interface | Zenitco Bazis |
|---|---|
| Material | D16T aluminum alloy |
| Weight | 80 ± 5 g |
| Dimensions | (67 × 37) ± 5 mm |
| Operating range | −50°C to +50°C |
| Documented service and storage warranty | 60 months |

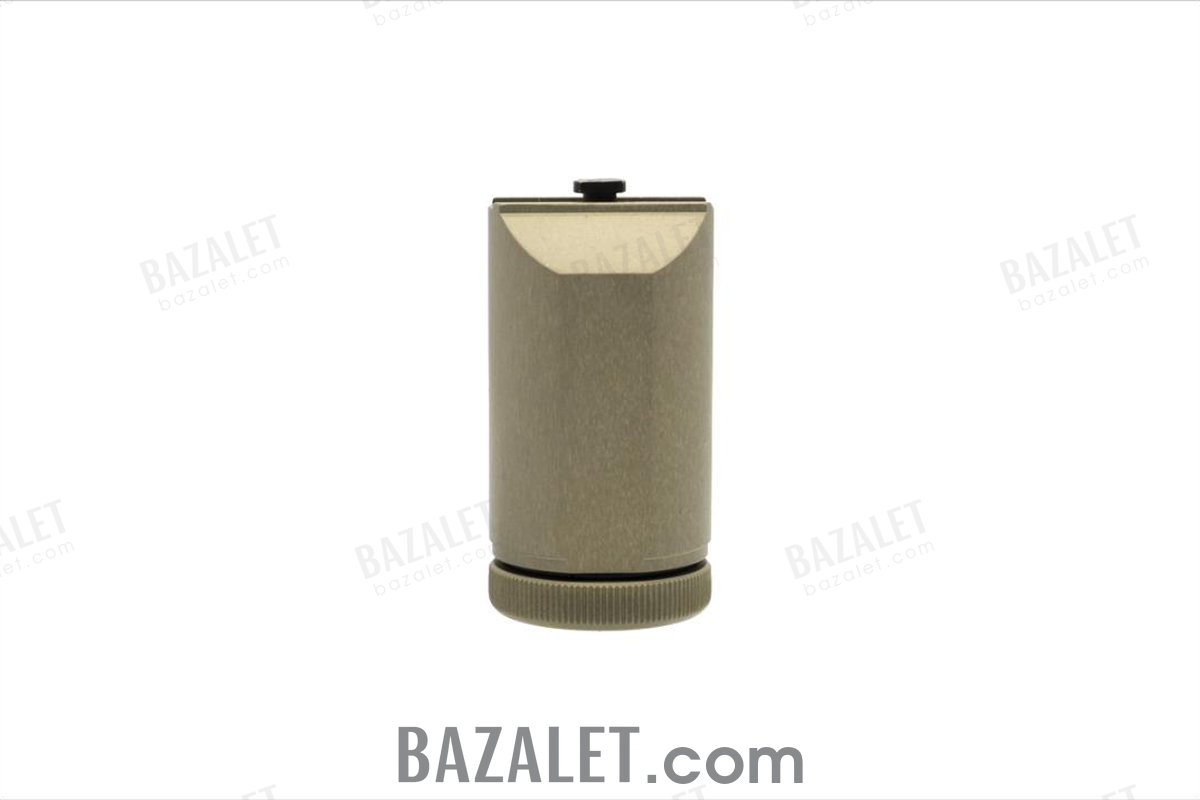

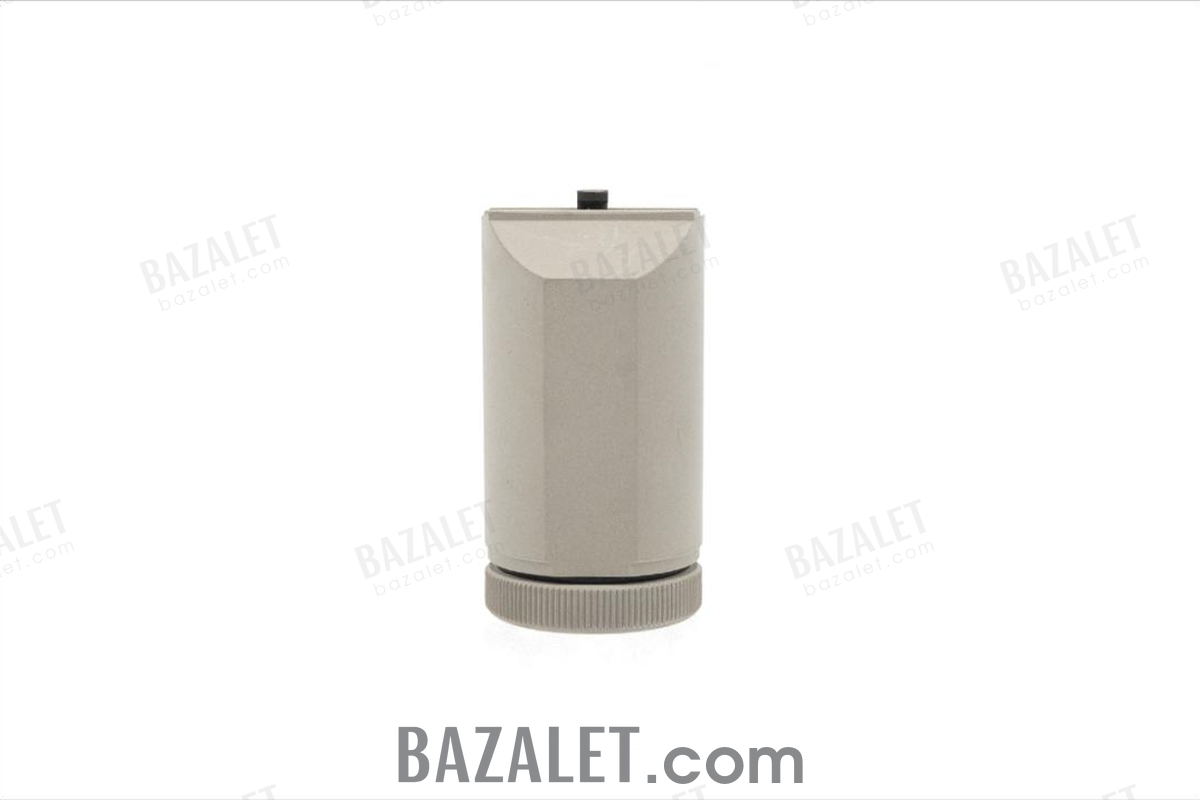

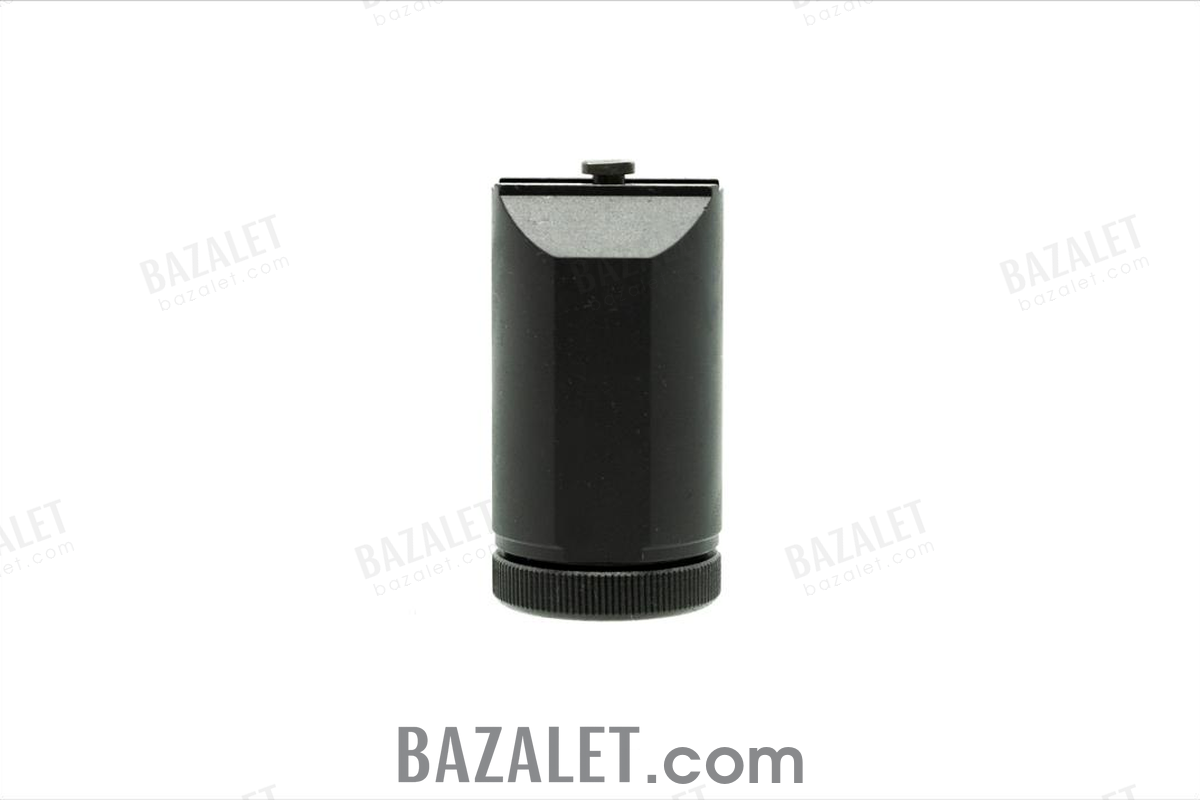

| Colors on this card | Black, desert and golden khaki |
What's in the Box
- RK-4L front grip — 1
- Cam clamp — 1
- M5×9 screw — 1
- User manual — 1
Installation
- Confirm that the mounting surface is a Bazis guide.
- Use the cam clamp on a standard guide, or the M5×9 screw on a documented reinforced guide.
- Position the grip and secure the selected fastener evenly.
- Verify that the grip is fully seated before use.
Frequently asked questions
Does RK-4L fit a Picatinny rail?
No. RK-4L mounts directly to the Bazis rail. Choose RK-4 for a direct Picatinny connection.
When is the M5×9 screw used?
Use it on the reinforced Bazis products documented by Zenitco: Sport-1S, Sport-4S, Leader-S, B-10LS, DL-1S, DL-2S and DL-S Leader.
Does the grip include storage?
Yes. The screw-off base closes a sealed internal compartment.
What is included?
One RK-4L grip, one cam clamp, one M5×9 screw and one user manual.
