Zenitco KV-D2 Remote Switch for Bazis and Picatinny
- $139
Available Options

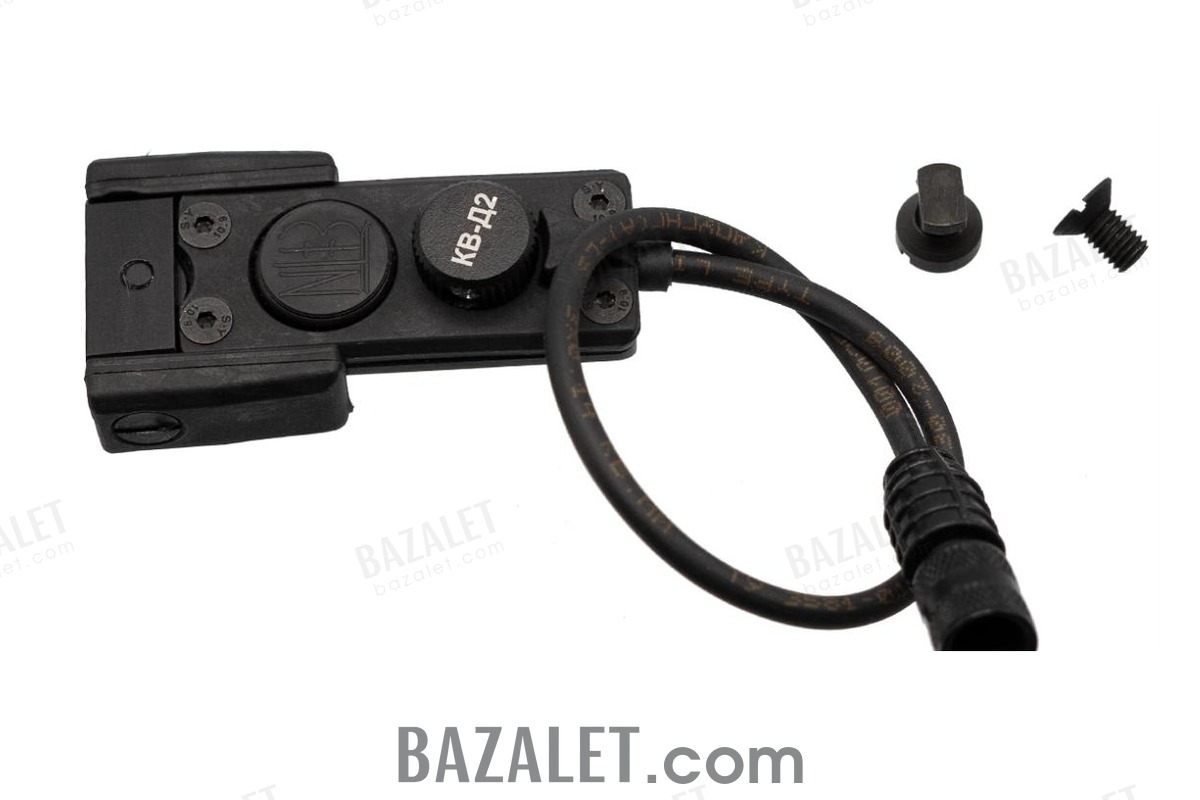

In short: The Zenitco KV-D2 is a wired remote switch with two supplied mounting paths: a cam clamp or M5×9 screw for a Bazis guide, plus an adapter for a Picatinny rail. Choose the connector version that exactly matches the connected device.
Compatibility checkpoint
- Compatible Perst families: Perst-4, Perst-4M, Perst Classic and Perst-2.
- Compatible Klesch families: Klesch-1, Klesch-1+LTsU, Klesch-2, Klesch-2PS+LTsU, Klesch-2P, Klesch-2D and Klesch-2U.
- Connector: choose the new V2.0 connector for current devices or the previous-generation connector for earlier devices. Match the physical connector before ordering.
- Mounting interface: Bazis guide or Picatinny rail using the supplied hardware.
Purpose and controls
KV-D2 duplicates the compatible device's body controls at a remote position. The rotary control adjusts brightness. Its D16T alloy housing has a black coating.
Technical specifications
| Material / finish | D16T aluminum alloy / black coating |
|---|---|
| Dimensions | 278 × 23 × 13 mm, manufacturer lists +5 mm tolerance |
| Weight without mount | 28 g, manufacturer lists +5 g tolerance |
| Operating range | −20°C to +40°C |
| Mounting | Bazis cam clamp or M5×9 screw; supplied Picatinny adapter |
| Manufacturer warranty | 12 months |

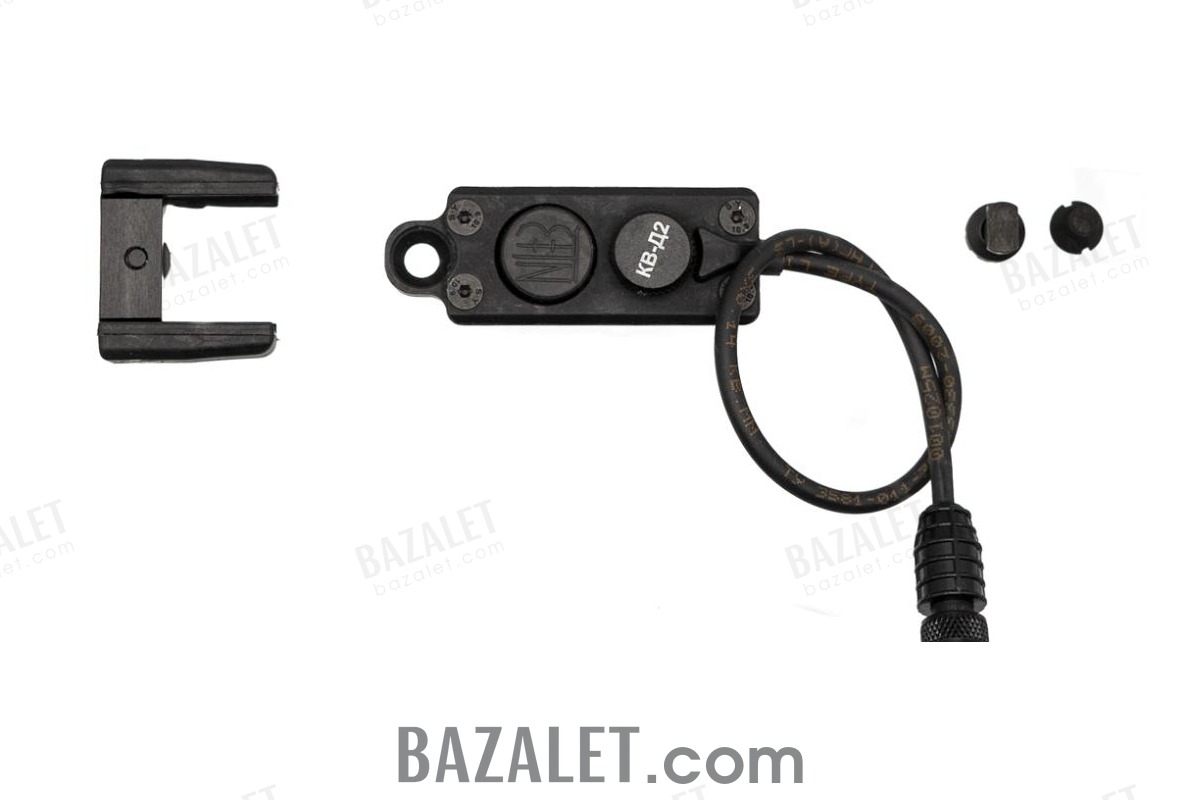

What's in the Box
- KV-D2 remote switch — 1
- Picatinny adapter — 1
- Cam clamp — 1
- M5×9 screw — 1
- Operating manual — 1
Installation
- Select the connector version that matches the compatible device.
- Remove the connector's rubber cover, align the contacts and insert the plug. Pull the locking ring to disconnect it.
- For Bazis, use the supplied cam clamp or M5×9 screw. For Picatinny, assemble the supplied adapter around the rail and secure its clamp.
- Confirm secure mounting and correct control operation before use.
Frequently asked questions
Which connector should I choose?
Choose V2.0 for current compatible devices and the previous-generation connector for earlier devices. Match the physical connector before ordering.
Can KV-D2 mount on both Bazis and Picatinny?
Yes. The delivery set includes a Bazis cam clamp, an M5×9 screw and a Picatinny adapter.
What does the rotary control do?
The manufacturer documents it as the brightness adjustment control for a compatible connected device.
What is included?
One KV-D2, one Picatinny adapter, one cam clamp, one M5×9 screw and one operating manual.
