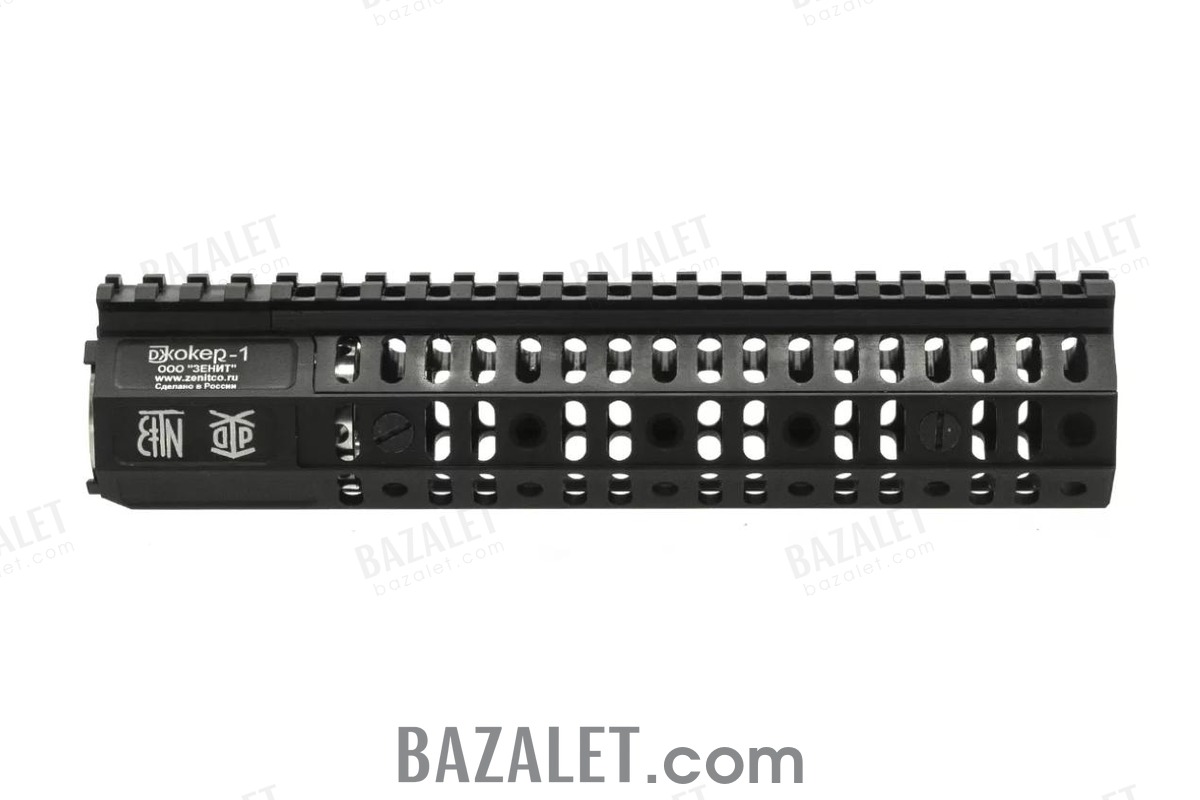

Joker-1 kit type A by Zenitco

Joker-1 kit type A by Zenitco is a modular handguard upgrade system for AR-15-based rifles, providing enhanced customization and accessory integration through its Picatinny and Basis rails. The kit includes upper and lower handguards, a titanium barrel nut, adjustable gas block, slingmount, stoppers, and additional mounting hardware.

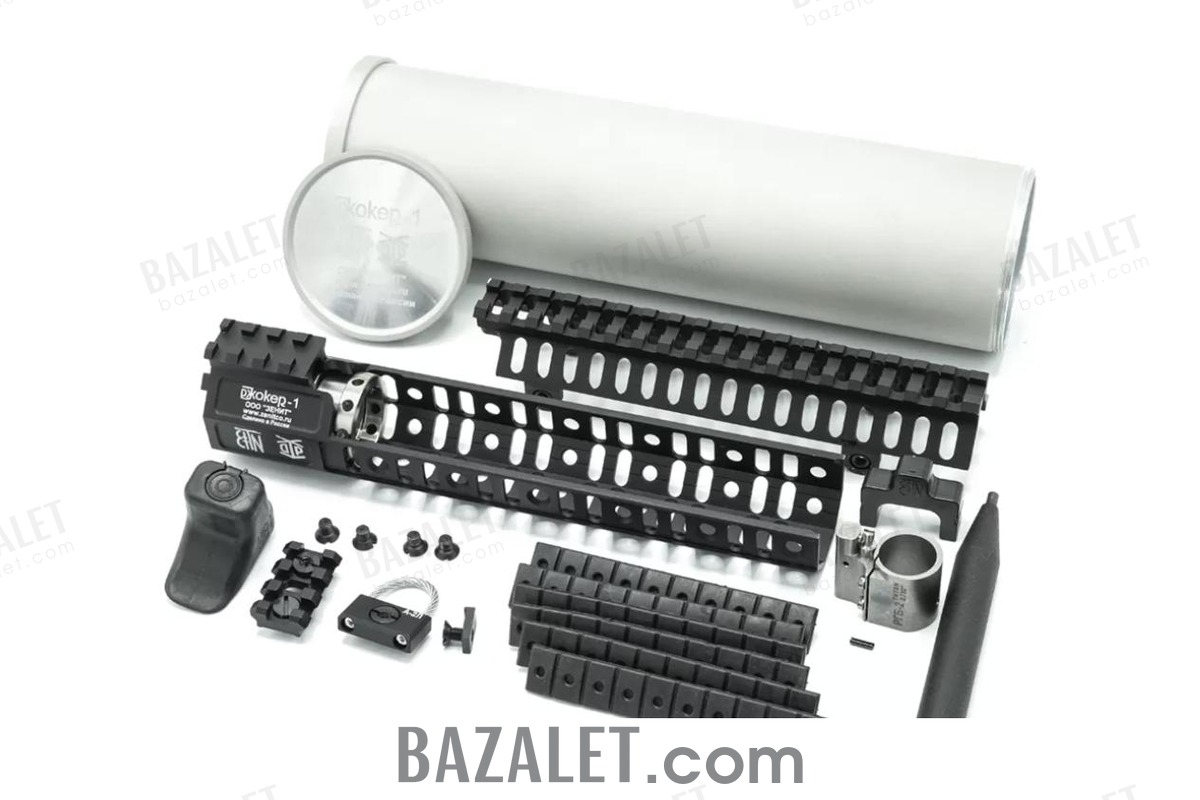

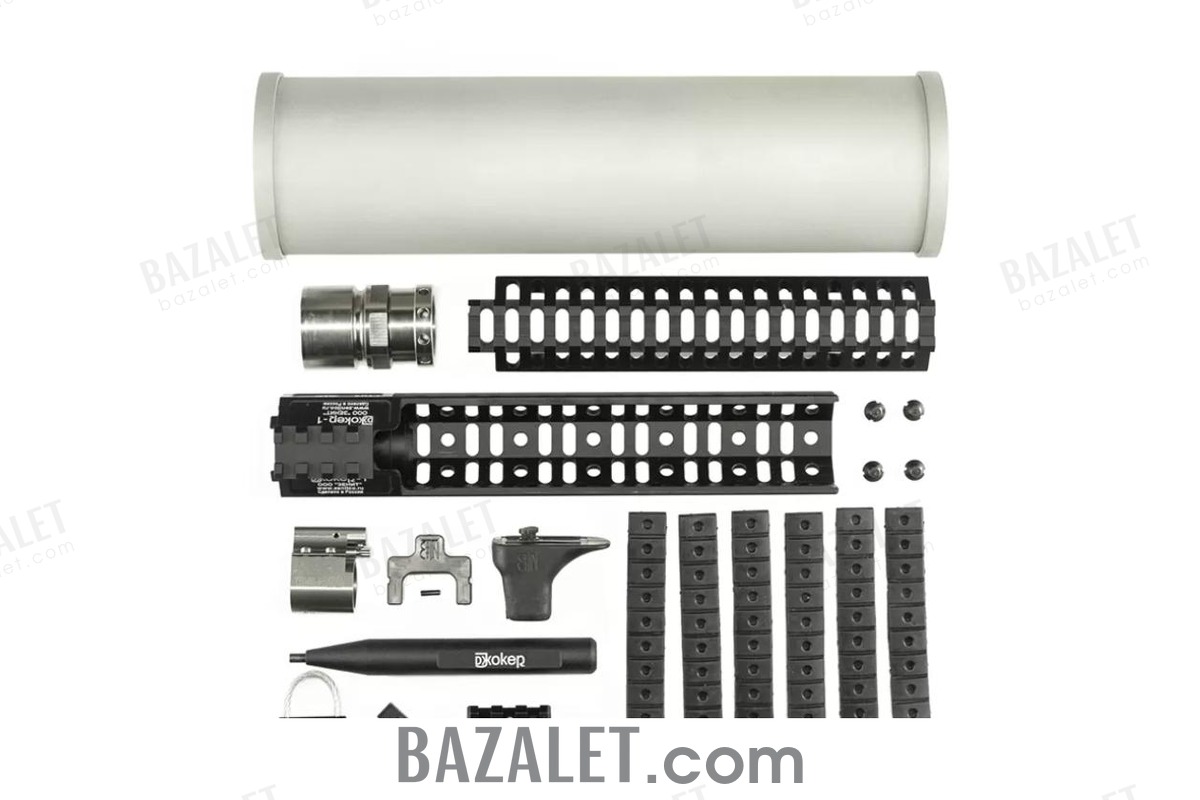

Included in the Kit:

• B-71 rail (upper) – 1 pc
• B-81 rail (lower) – 1 pc
• BN-1 titanium barrel nut – 1 pc
• RGB-2 adjustable gas block 0.750" with pin – 1 pc
• Device for RGB-2 positioning – 1 pc
• Joker key – 1 pc
• M5x7 screws – 4 pcs
• A-2L slingmount – 1 pc
• RL-1 hand stopper – 1 pc
• B-2L Picatinny rail – 1 pc
• NPN-2 Basis rail covers – 6 pcs
• Protective cylinder packaging – 1 pc
• Operation manual – 1 pc

Compatibility: Basis rails allow attachment of Zenitco accessories: B-2, B-2U, B-2L, B-2M Picatinny rails; A-1L, A-2L slingmounts; RK series grips; RL-1 stoppers; FP-3 wire holders; D-line tactical switches; NPN-2 covers.

Dimensions:

• B-71: 187 × 39 × 38 ± 5 mm
• B-81: 228 × 41 × 51 ± 5 mm
• BN-1 barrel nut: 53 × 35 ± 5 mm
• RGB-2 gas block: 40 × 32 × 22 ± 5 mm

Weight:

• B-71: 79 ± 3 g
• B-81: 119 ± 3 g
• BN-1 barrel nut: 62 ± 3 g
• RGB-2 gas block: 30 ± 3 g

Operating temperature range: from -50 °C to +50 °C

Warranty: 60 months

Installation Instructions:

1. Remove the standard muzzle device, handguard, gas block, and barrel nut.
2. Unscrew BN-1 barrel nut, separating it into mounting and fixation nuts. Tighten the mounting nut onto the barrel.
3. Install the B-81 lower rail and screw on the fixation nut. Tighten with the included Joker key.
4. Install RGB-2 adjustable gas block:
   • Insert a straight gas tube into the gas block
   • Mount RGB-2 on the barrel
   • Use the positioning device to align the gas outlet with the barrel inlet and tighten screws
   • Remove the positioning device
5. Slide the B-71 upper rail onto the B-81 rail and secure it with four screws.
6. Install A-2L slingmount, RL-1 hand stopper, B-2L rail, and NPN-2 covers as needed.

Optional: Use Key Rod №1 (sold separately) for convenient maintenance.
