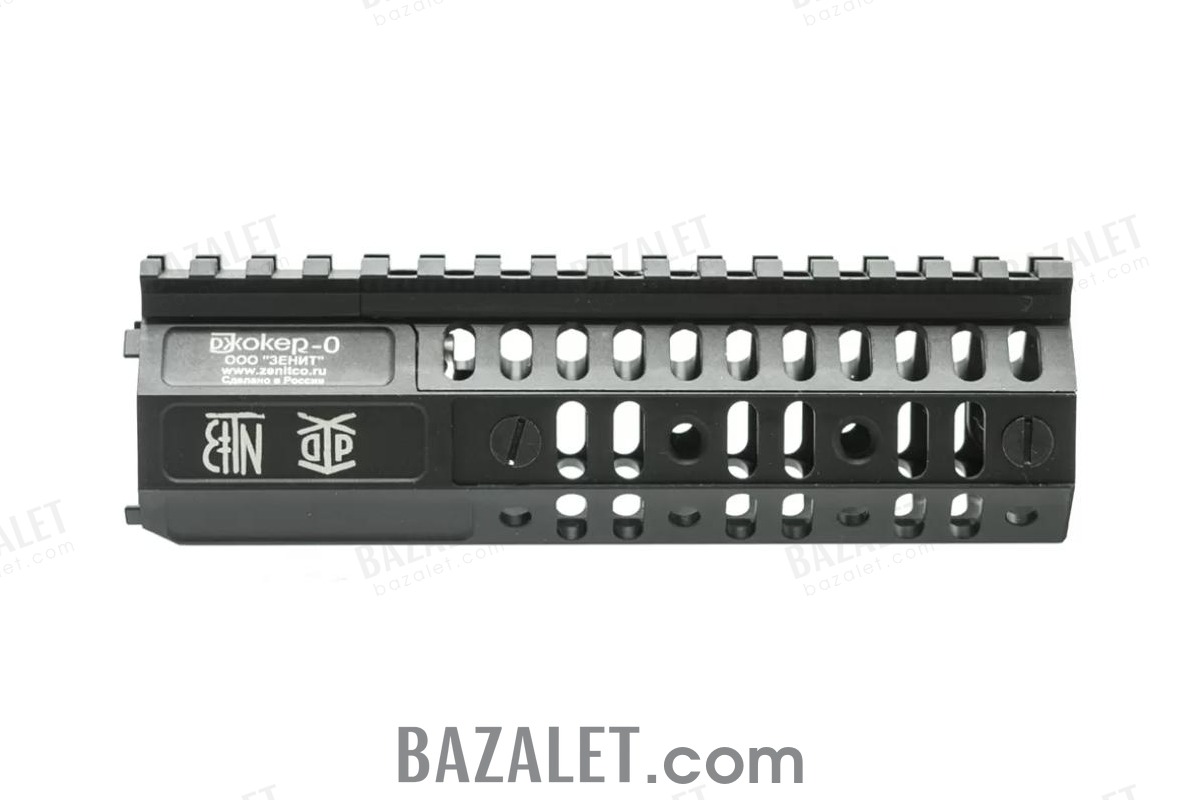

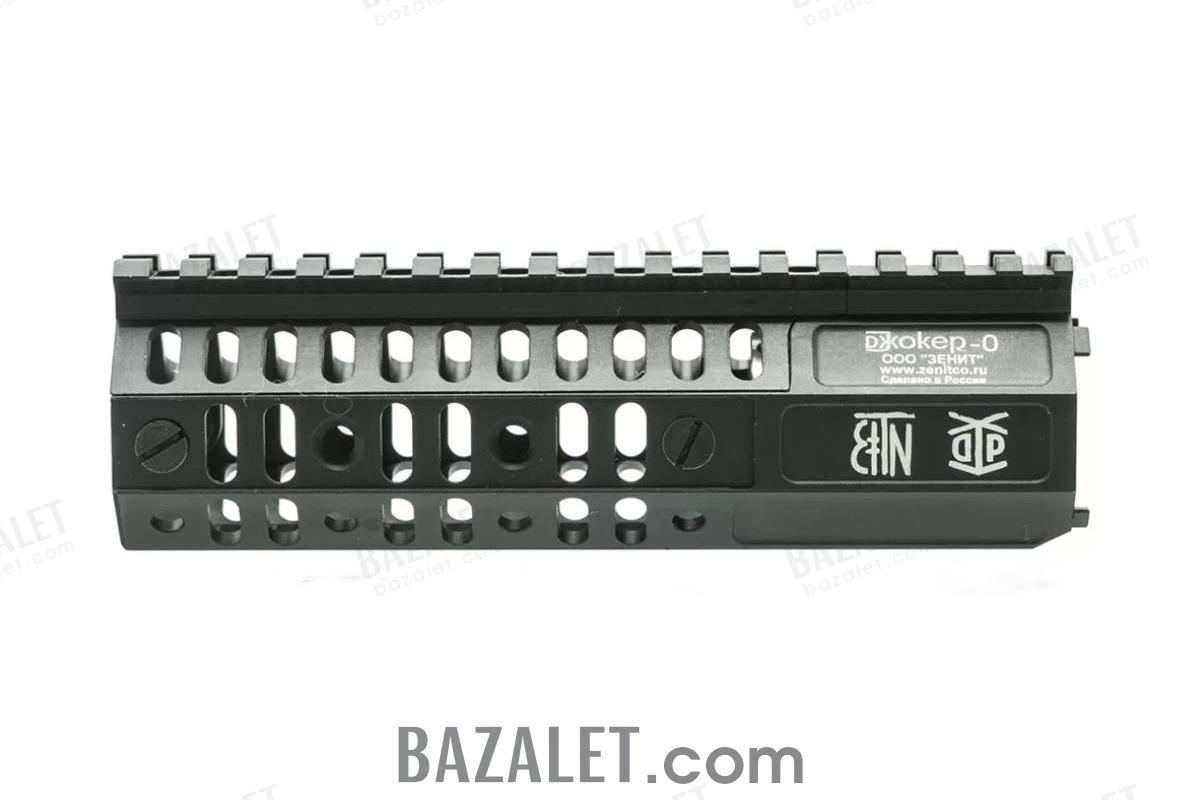

Joker-0 kit type A by Zenitco

Joker-0 kit type A by Zenitco is a premium handguard system for AR-15 platform carbines. It replaces the standard forend and integrates a Basis guide system for attaching additional tactical accessories.

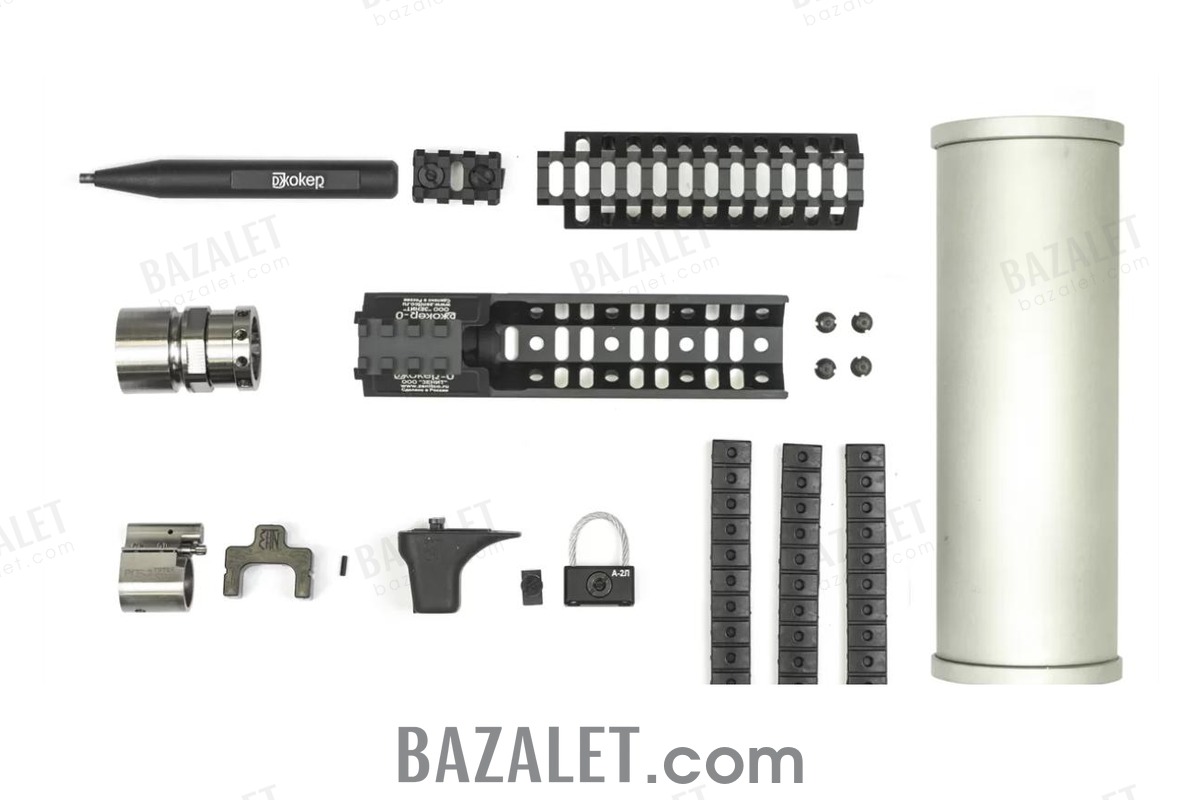

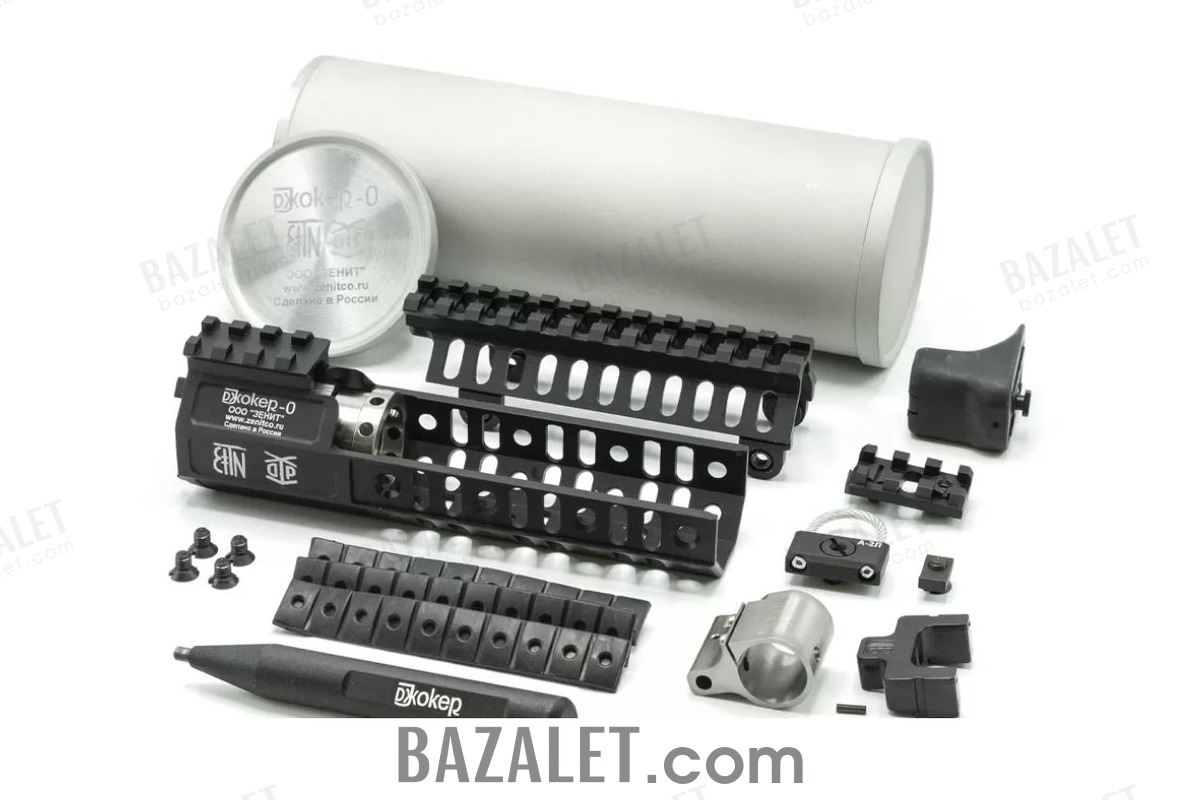

The kit includes everything necessary for professional upgrade:

• Bracket "Joker-0":
  • Upper handguard B-70
  • Lower handguard B-80
• Mounting base:
  • Nut and fixing nut (VT-6 titanium alloy)
• Adjustable gas block RGB-1 Titanium 0.750" (titanium VT-6)
• Fixing key for nut tightening
• RL-1 hand stopper
• Slingmount
• B-2L Picatinny rail
• Fixing screws – 4 pcs
• NPN-2 rail covers – 3 pcs
• Aluminum storage case
• Operation manual

Operational Advantages:

• Durable and rigid design
• Enhanced barrel cooling
• Modular expansion with Zenitco accessories
• Minimal weight and size

Technical Specifications:

• Weight of bracket assembly: 160 ± 5 g
• Weight of mounting base (barrel nut): 60 ± 2 g
• Overall dimensions: 169 х 41 х 51 ± 2 mm (length – 165 mm / 6.5")
• Material: D16T aluminum (handguard), VT-6 titanium (nut/gas block)
• Temperature range: -50°C to +50°C
• Warranty: 60 months

Installation Instructions:

1. Dismantle the standard muzzle device, forend, gas block, and mounting nut.
2. Install Zenitco barrel nut by removing its pre-locking nut, and tighten it securely.
3. Install the lower B-80 handguard and place the fixing nut on it.
4. Install the RGB-1 titanium gas block, aligning its mounting screws with holes on the B-80 bracket. Tighten to secure.
5. Firmly slide the lower bracket to the receiver so that the Picatinny rails align.
6. Use the included key to tighten the fixing nut and lock the bracket in place.
7. Install the upper B-70 handguard, and mount any included accessories (slingmount, rails, stopper, etc.).

Manufactured by: Zenitco
Distributed by: Bazalet
Available for worldwide shipping.
