Zenitco Zhuk-1 Adjustable Bipod Set for Bazis Rails
- $299
In short: Zenitco Zhuk-1 is a pair of folding, length-adjustable support legs designed for direct installation on the two side Bazis guides of a compatible handguard. Picatinny installation requires two Picatinny-to-Bazis adapters, sold separately.
Compatibility and required interfaces
| Available interface | Compatible mounting route | Additional part |
|---|---|---|
| Two side Bazis guides | Direct installation, one leg per side | None |
| Two side Picatinny rails | One Picatinny-to-Bazis adapter per leg | Two adapters, sold separately |
| Compatible Summator interface | Both legs attach to the Summator with cam clamps | Summator, sold separately |
Selection checkpoint: the documented direct interface is a pair of side Bazis guides. A Picatinny rail alone does not accept Zhuk-1 without the matching adapters.
Two documented Bazis attachment methods
- Two cam clamps per leg: use the oval openings in the Bazis guide.
- One cam clamp plus one M5×9 screw per leg: place the M5×9 where the upper and lower guide components meet, replacing the M5×7 screw at that position.
Each cam must rotate 90° into its locked position. Each leg folds by pulling and rotating it, and adjusts independently from 250 ± 5 mm folded to 325 ± 5 mm extended.
Technical specifications
| Material | D16T aluminum alloy |
|---|---|
| Weight | 134 ± 5 g per leg, excluding mounting hardware |
| Length | 250 ± 5 mm folded; 325 ± 5 mm extended |
| Operating temperature | −50 to +50 °C |
| Finish | Black |
Installation outline
- Confirm that both mounting positions use the same documented interface route.
- For direct Bazis installation, choose either two cam clamps or one cam clamp plus one M5×9 screw for each leg.
- For Picatinny, first attach each leg to a separate Picatinny-to-Bazis adapter, then secure both adapters to the side rails.
- For a Summator route, attach both legs to the compatible Summator with the cam clamps.
- Deploy and adjust both legs, then confirm every fastener and locking position.

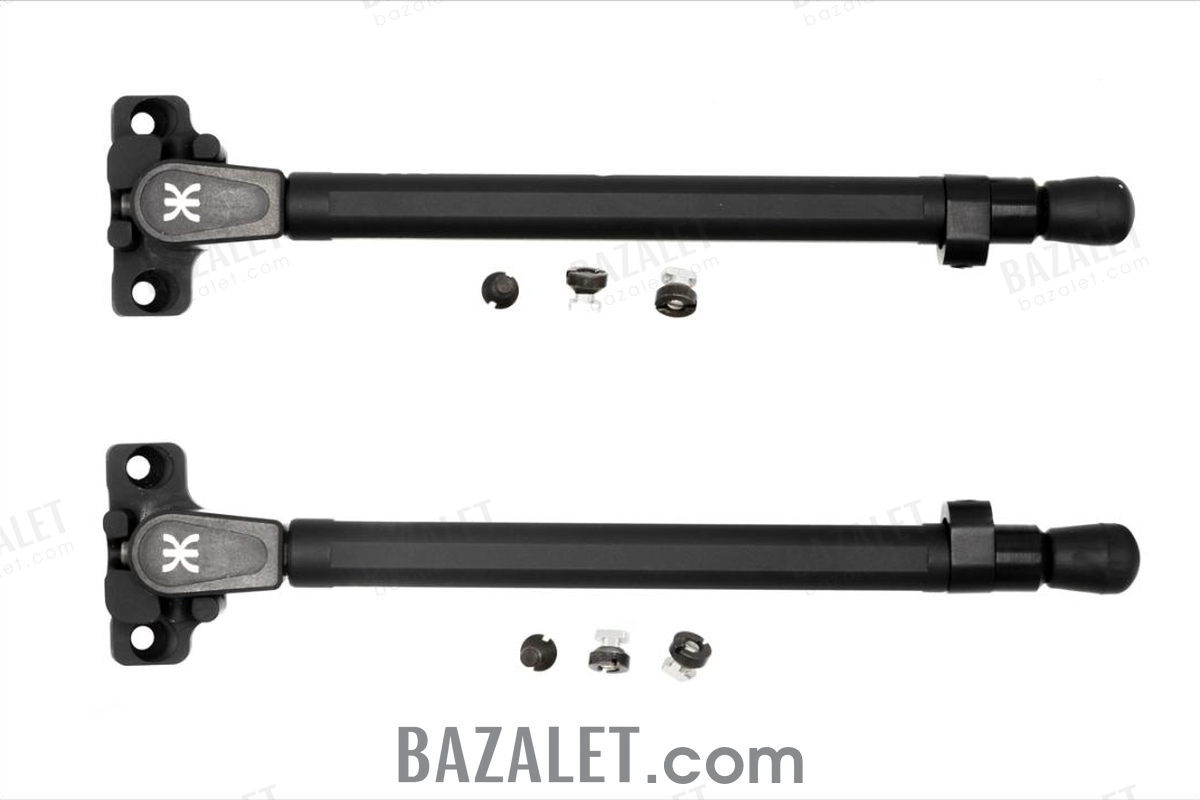

What's in the Box
| Zhuk-1 adjustable leg | × 2 |
| Cam clamp | × 4 |
| M5×9 screw | × 2 |
| Operating manual | × 1 |
Frequently asked questions
Does Zhuk-1 install directly on Bazis?
Yes. The direct route uses two side Bazis guides, with one independently mounted leg on each side.
Can it attach directly to Picatinny?
No. Picatinny installation requires two compatible Picatinny-to-Bazis adapters, sold separately.
Which fasteners are included?
The set includes four cam clamps and two M5×9 screws, supporting the two documented direct-Bazis attachment methods.
What is the adjustment range?
Each leg measures 250 ± 5 mm folded and 325 ± 5 mm extended.
