Zenitco Vzor-1W Red Dot Sight - Full Kit, 1x, 20 m Water Resistance
- $1 719

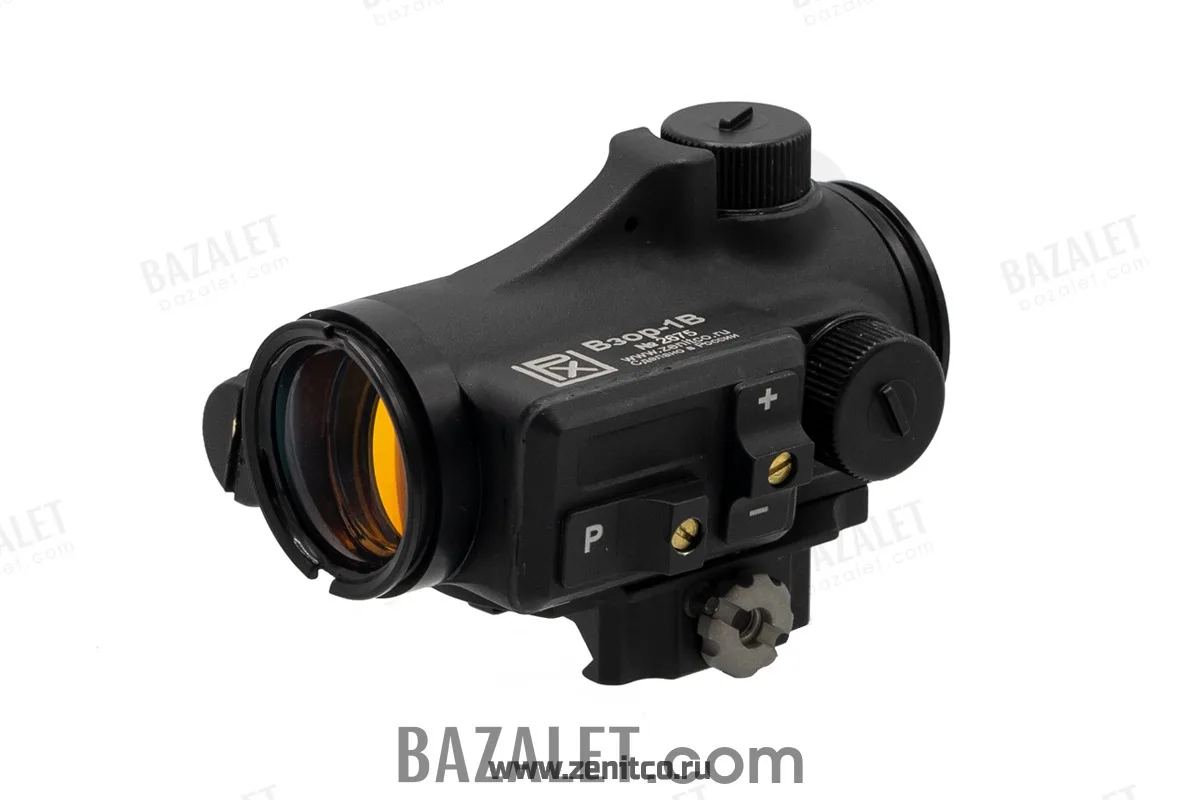

Zenitco Vzor-1W Red Dot Sight
Overview
The Vzor-1W is a 1x reflex sight for short and medium range on Picatinny or Basis rails. It runs a 1 MOA dot on its own or a dot inside a 34 MOA circle, across ten brightness levels, and works alongside night-vision devices. Adjustment is 1 MOA per click.
It is built for hard use: D16T aluminium body, D16T platforms with steel elements, polymer lens covers, and water resistance to 20 m. Its working range is -50 °C to +60 °C - wider than the Vzor-5 family. The sight weighs 103 g bare and measures 69 x 52 x 39 mm.
The kit is the reason to buy this version rather than the plain Vzor-1: the sight arrives on the PB-1 quick-release platform with the battery installed, and the box also holds PV-30 and PV-39 spacers, the PN-1 platform, the PV-B45U 45-degree platform, four lens covers and an anti-glare hood - everything for mounting it on almost any configuration. One AAA cell runs about a year in dot mode at medium brightness.
| ✓Vzor-1W Red Dot Sight on PB-1 Platform, Battery Installed | x 1 |
| ✓PV-30 Spacer | x 1 |
| ✓PV-39 Spacer | x 1 |
| ✓PN-1 Platform | x 1 |
| ✓PV-B45U Platform | x 1 |
| ✓Lens Covers | x 4 |
| ✓Anti-Glare Hood | x 1 |
| ✓Manual | x 1 |
| ✓Short Manual | x 1 |
| ✓Metal Box | x 1 |
Key Advantages
- Full kit: four platforms and spacers, four lens covers, anti-glare hood
- Ten brightness levels, night-vision compatible
- Water resistant to 20 m; -50 °C to +60 °C
- About a year on one AAA cell in dot mode
- Light: 103 g bare, 69 x 52 x 39 mm
- D16T aluminium body
Technical Specifications
| Brand | Zenitco |
| Type | 1x reflex (red dot) sight, full kit |
| Magnification | 1x |
| Lens diameter | 22 mm |
| Reticle - dot | 1 MOA |
| Reticle - circle | 34 MOA |
| Brightness levels | 10 |
| Adjustment | 1 click = 1 MOA |
| Night vision compatible | Yes |
| Water resistance | 20 m |
| Battery | AAA, 1.5 V (or 1.2 V rechargeable), fitted at the factory |
| Battery life | About 1 year in dot mode at medium brightness; 60 hours in dot+circle at maximum |
| Operating temperature | -50 °C to +60 °C |
| Material | Sight: D16T aluminum alloy; platforms: D16T with steel elements; lens covers: polymer |
| Weight | 103 ± 2 g (without battery, platform and lens covers) |
| Dimensions (L x W x H) | 69 x 52 x 39 mm (± 2 mm, without platform and lens covers) |
| Mounting | Picatinny or Basis rail; PB-1, PN-1 and PV-B45U platforms supplied |
| Color / Finish | Black |
| MPN | Zen-Vzor-1V |
| Condition | New |
Frequently Asked Questions
What's in the Box
Installation
Confirm the required interface before installation: select the supplied platform matching the host rail interface. Fit the component according to the manufacturer instructions, then verify the resulting interface or function: 1x Vzor-1V sight installation with two reticle elements and ten brightness levels.
