Zenitco RL-1 Hand Stop for Bazis Guides
- $29
Available Options
In short: Zenitco RL-1 is a compact hand stop for the Bazis guide. It mounts with the included 16.6 mm cam clamp; an M5×12 screw is also supplied for the manufacturer's reinforced Bazis products.
Purpose
RL-1 provides a low contact and indexing point without the height of a full front grip. Its position can be selected along a compatible Bazis guide and then secured with the documented mounting hardware.
Technical specifications
| Interface | Bazis guide |
|---|---|
| Standard mount | 16.6 mm cam clamp |
| Reinforced-guide fastener | M5×12 screw |
| Dimensions | 33 × 49 × 26 mm, tolerance ± 5 mm |
| Weight | 18 ± 2 g, excluding the mounting screw |
| Operating range | −50°C to +50°C |
| Manufacturer warranty | 60 months |
Compatibility
RL-1 requires a Bazis guide. Standard Bazis examples include the side guides on B-21U and the three-sided interface on B-10L. Confirm that the selected mounting position is Bazis rather than Picatinny.
Reinforced Bazis installation
The manufacturer specifies the included M5×12 screw for reinforced Bazis products: Sport-1S, Sport-4S, Leader-S, B-10LS, DL-1S, DL-2S and DL-S Leader. Use the fastener assigned to the exact guide type rather than substituting the standard clamp arrangement.
RL-1 vs RK-6L
RL-1 is a compact stop and index point. The RK-6L is a larger angled D16T hand stop for Bazis. Select by the required contact area, form and documented guide hardware.
Colors

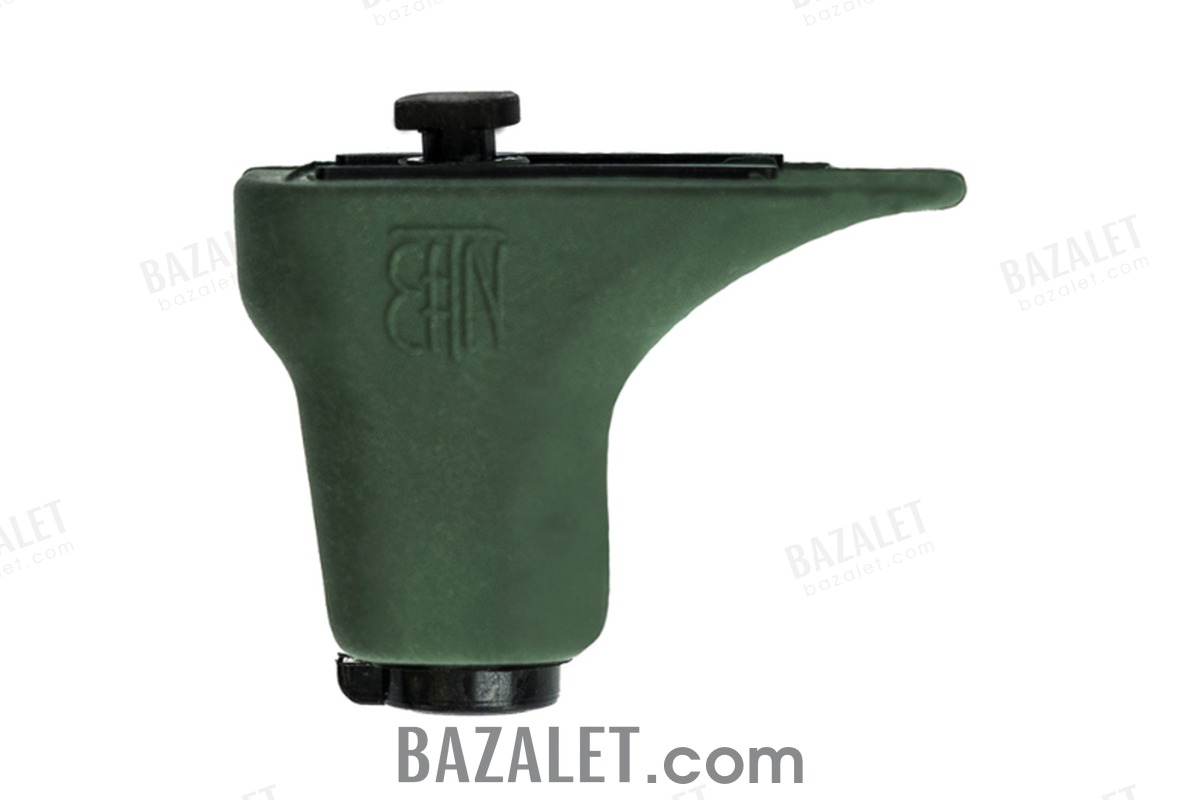

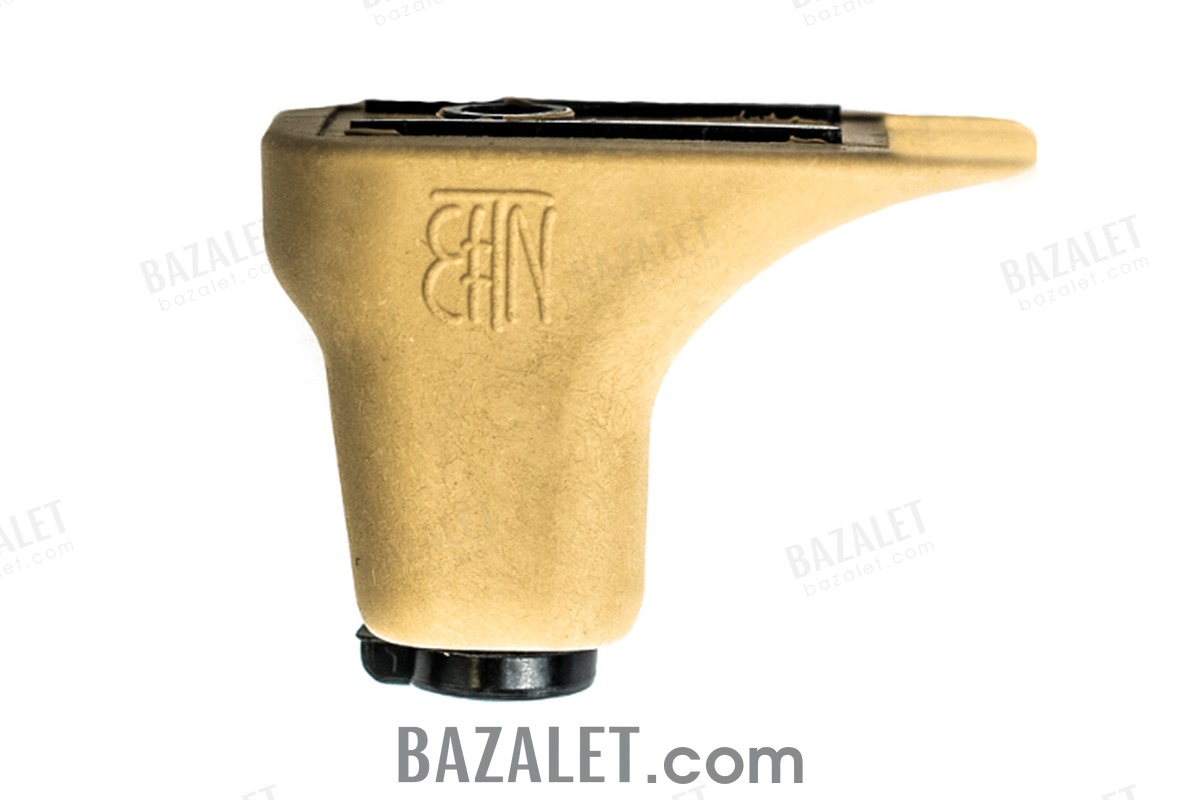

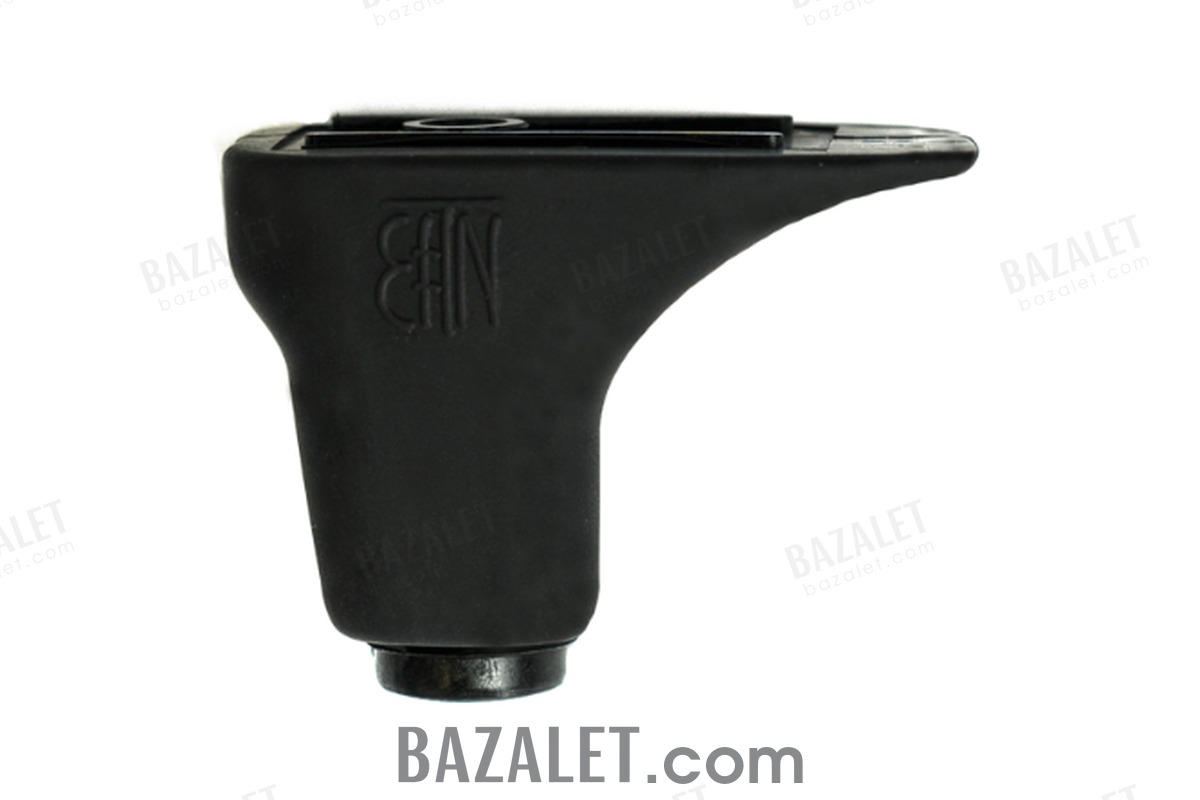

The required selection offers Black, Desert and Green. The gallery contains one exact product image for each finish.
Delivery basis
- RL-1 hand stop — 1
- 16.6 mm cam clamp — 1
- M5×12 screw — 1
- User manual — 1
Installation
- Confirm whether the mounting position uses a standard or reinforced Bazis guide.
- Place RL-1 at the required position on the Bazis guide.
- Secure it with the included 16.6 mm cam clamp on a standard guide.
- For a documented reinforced Bazis product, use the included M5×12 screw according to the product manual.
- Verify that the stop is fully seated and secure.
Frequently asked questions
Does RL-1 mount on Picatinny?
No. RL-1 is documented for the Bazis guide.
When is the M5×12 screw used?
It is used with the reinforced Bazis products listed by the manufacturer, including Sport-1S, Sport-4S, Leader-S, B-10LS, DL-1S, DL-2S and DL-S Leader.
What is the weight?
The documented weight is 18 ± 2 g without the mounting screw.
What is included?
RL-1, a 16.6 mm cam clamp, an M5×12 screw and the user manual are included.
