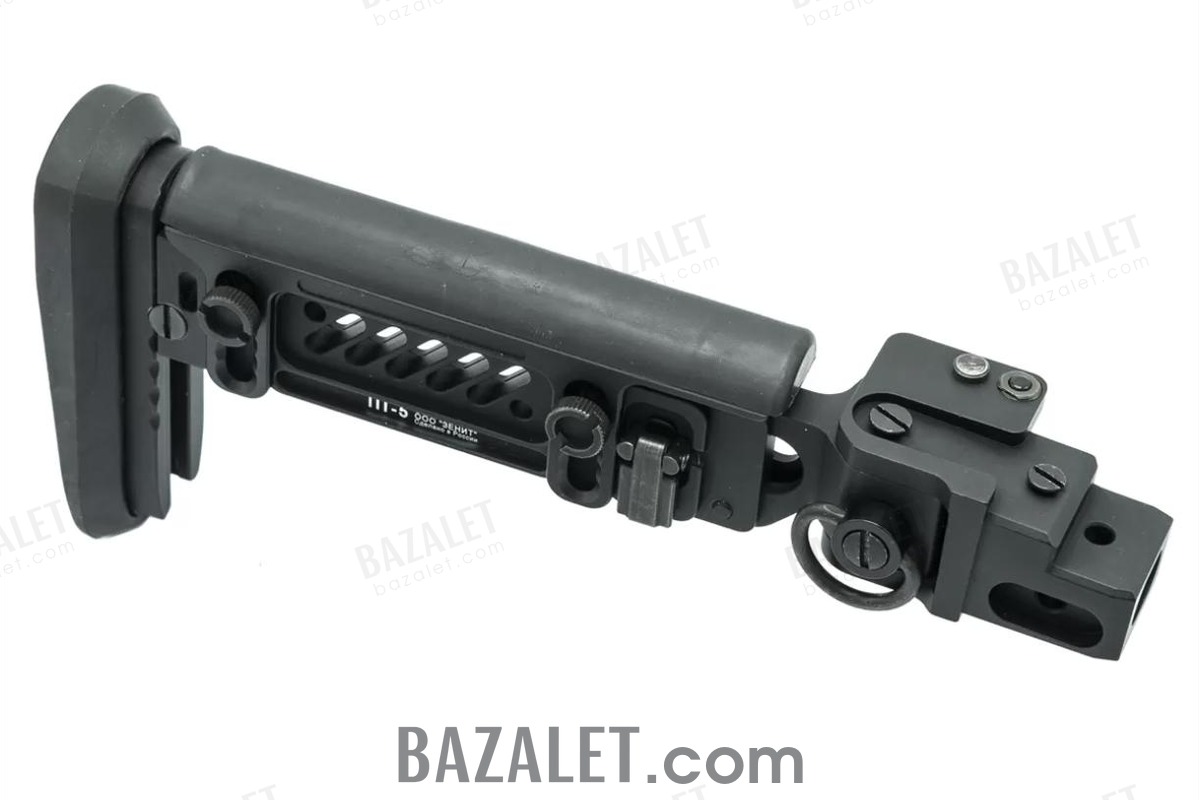

Zenitco PT-5 Folding Stock for AKM and AK-74
- $769
Available Options
In short: Zenitco PT-5 replaces the original non-folding rear assembly on AKM and AK-74 with an adjustable folding system. It uses the original two-screw fixed-stock interface, adjusts from 261 to 361 mm and is explicitly excluded from AK-74M, B-13 and every dovetail side-mount path.
Compatibility matrix
| Host model | Required input | Installation | Restrictions |
|---|---|---|---|
| AKM | Original non-folding two-screw rear interface | Direct internal replacement | No B-13 or dovetail side mount |
| AK-74 | Original non-folding two-screw rear interface | Direct internal replacement | AK-74M excluded; no B-13 or dovetail side mount |
Selection checkpoint: PT-5 is for the documented fixed-stock AKM and AK-74 route. It does not use a PT-series folding-axis adapter. Do not select it for AK-74M or any configuration that must retain a B-13 or other dovetail side mount.
Adjustments and operation
Length adjusts from 261 to 361 mm. Cheek height and rubber rear-pad height adjust independently. The mechanism folds and locks alongside the receiver at any telescopic position, while the cheek in its lowest position preserves access to the original sight line.
Technical specifications
| Compatible models | AKM; AK-74 with original non-folding rear interface |
|---|---|
| Material | D16T aluminum alloy, one-piece machined construction |
| Length adjustment | 261–361 mm |
| Height adjustment | 121–142 mm |
| Width | 49 mm |
| Weight | 596 g ± 5 g |
| Operating temperature | −50 to +50 °C |

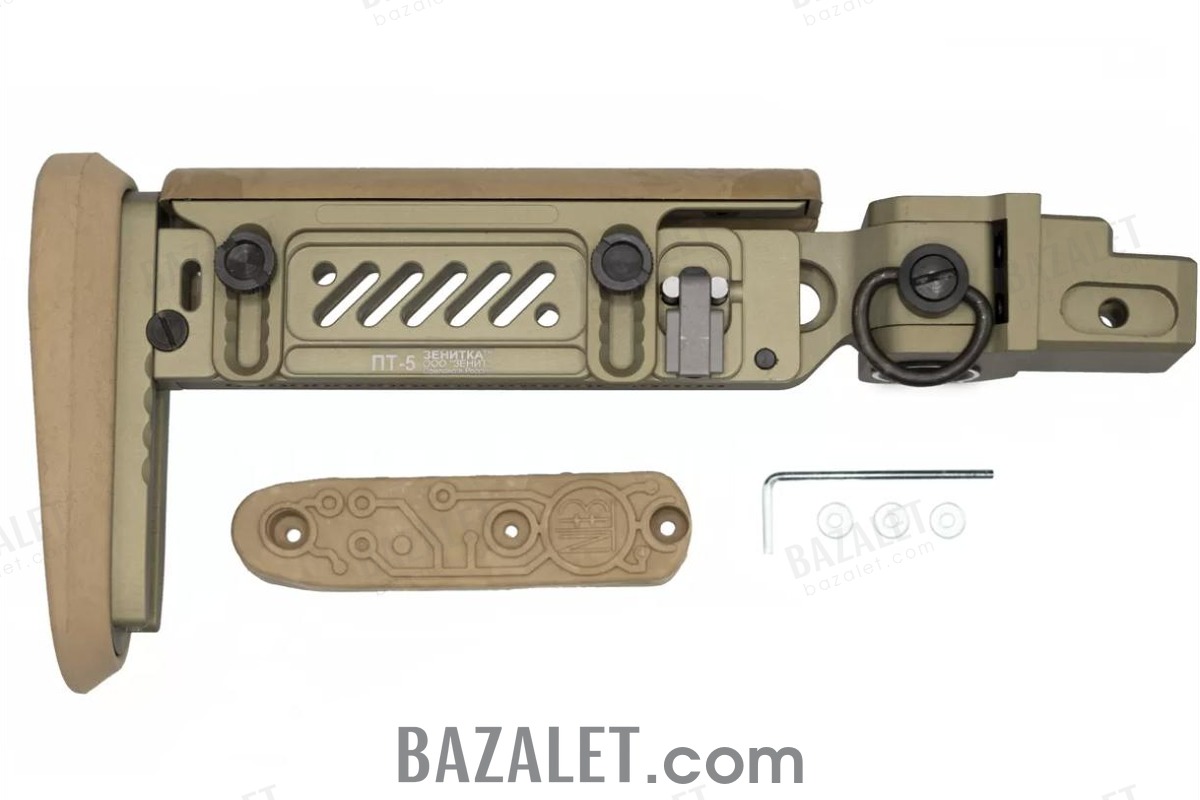

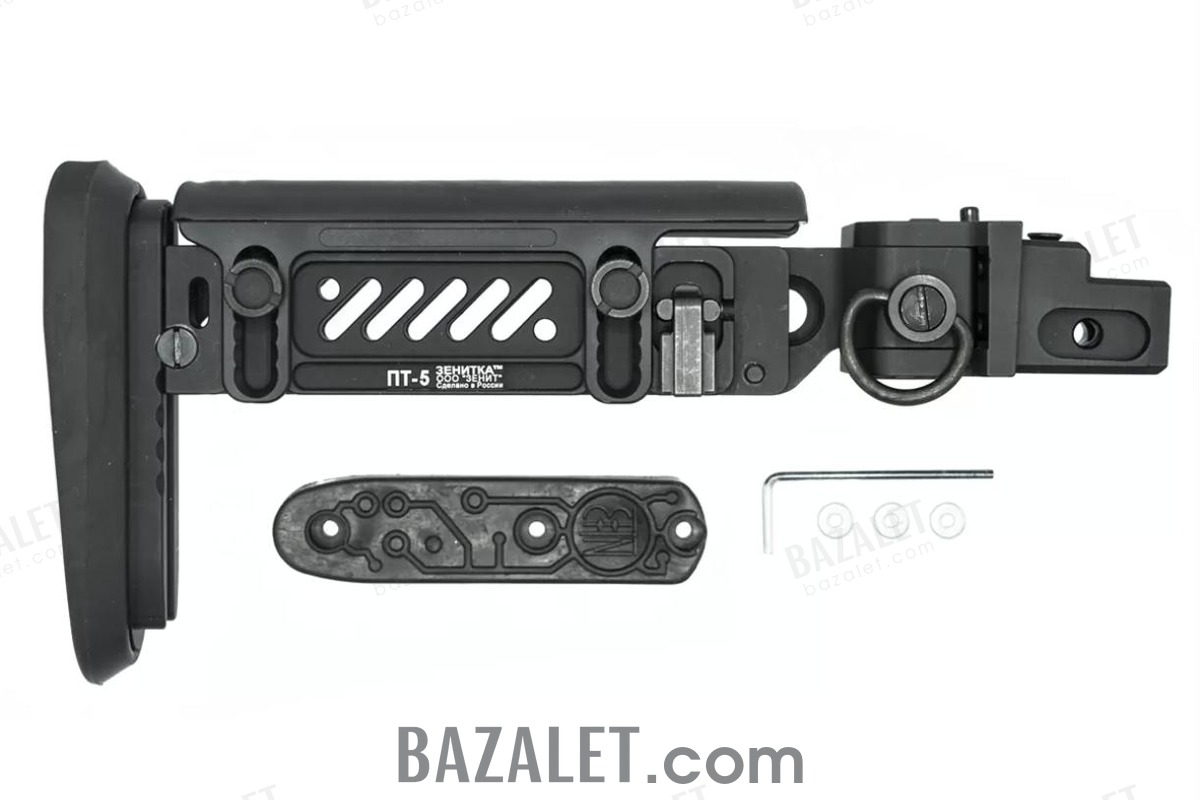

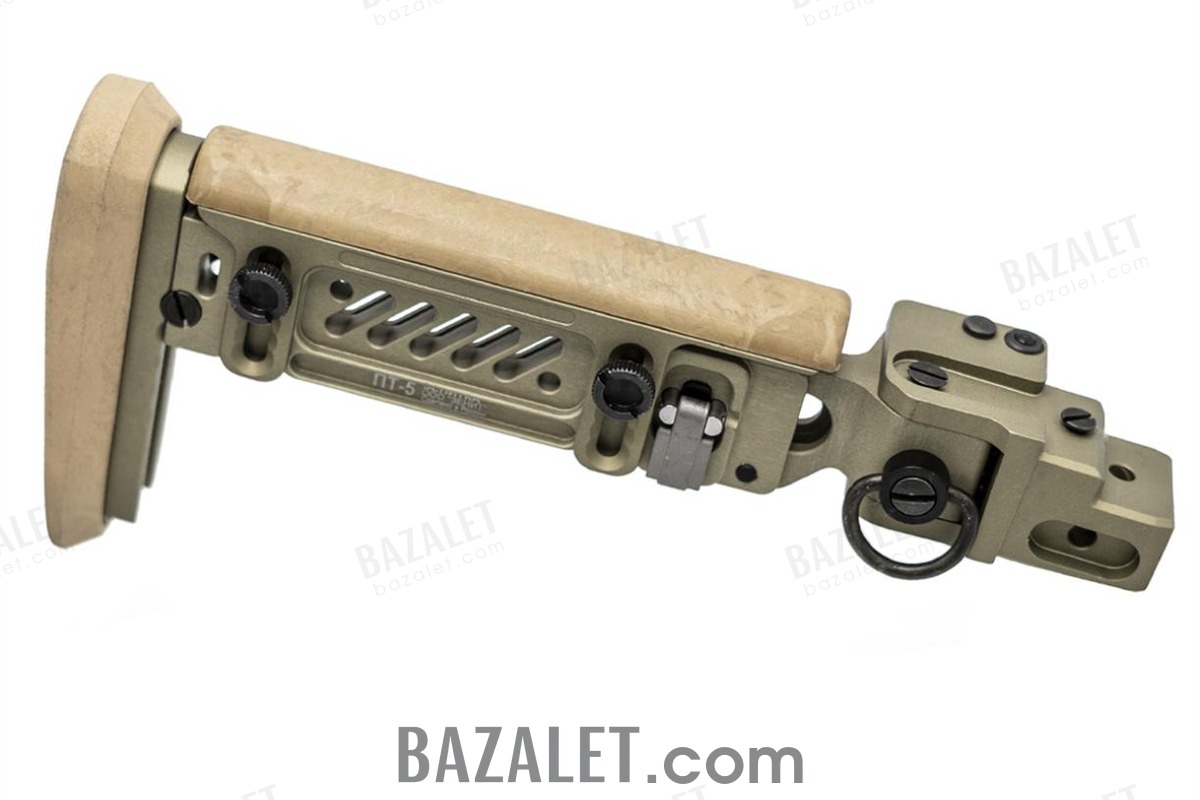

| Finishes | Black; Golden khaki |
| Manufacturer period | 60 months for storage and operation |
Installation
Remove the original non-folding assembly and its two upper screws according to the service instructions. Seat PT-5 in the original internal interface, secure it with the two screws and complete reassembly. No machining is required.
What's in the Box
| Zenitco PT-5 assembly | × 1 |
| Hex key | × 1 |
| Rubber rear-pad overlays | × 2 |
| User manual | × 1 |
Frequently asked questions
Which models accept PT-5?
The official application is AKM and AK-74 with the original non-folding two-screw rear interface.
Does PT-5 fit AK-74M?
No. AK-74M is explicitly excluded.
Can PT-5 be used with B-13?
No. B-13 and every dovetail side-mount configuration are excluded.
Is a folding-axis adapter required?
No. PT-5 uses the original fixed-stock two-screw attachment route.
