PT-5 RPK Telescopic Stock by Zenitco

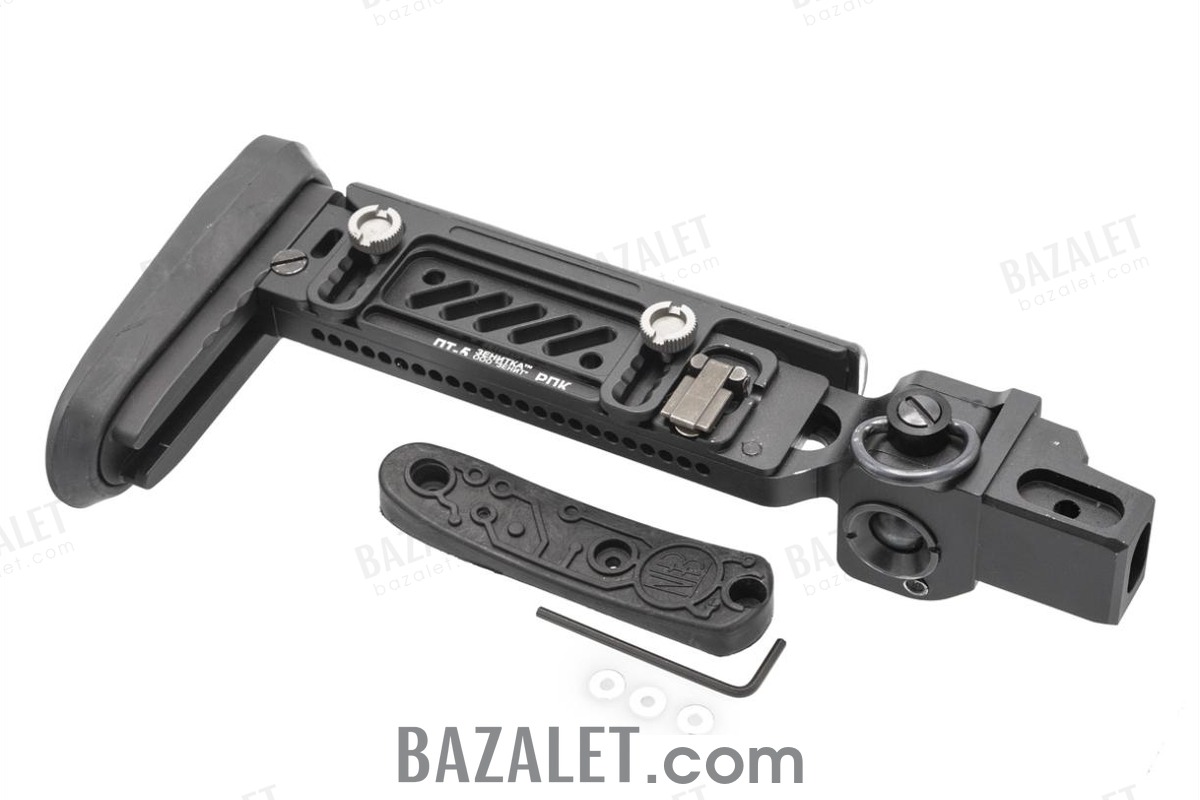

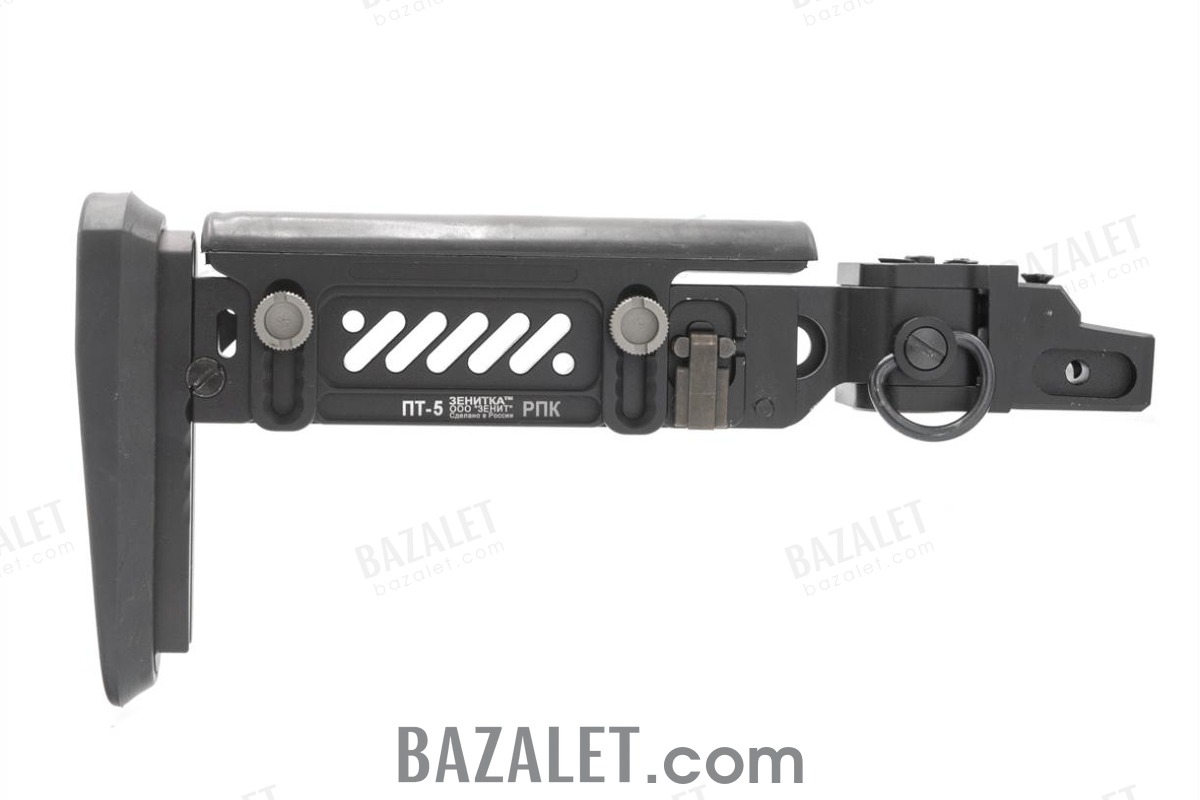

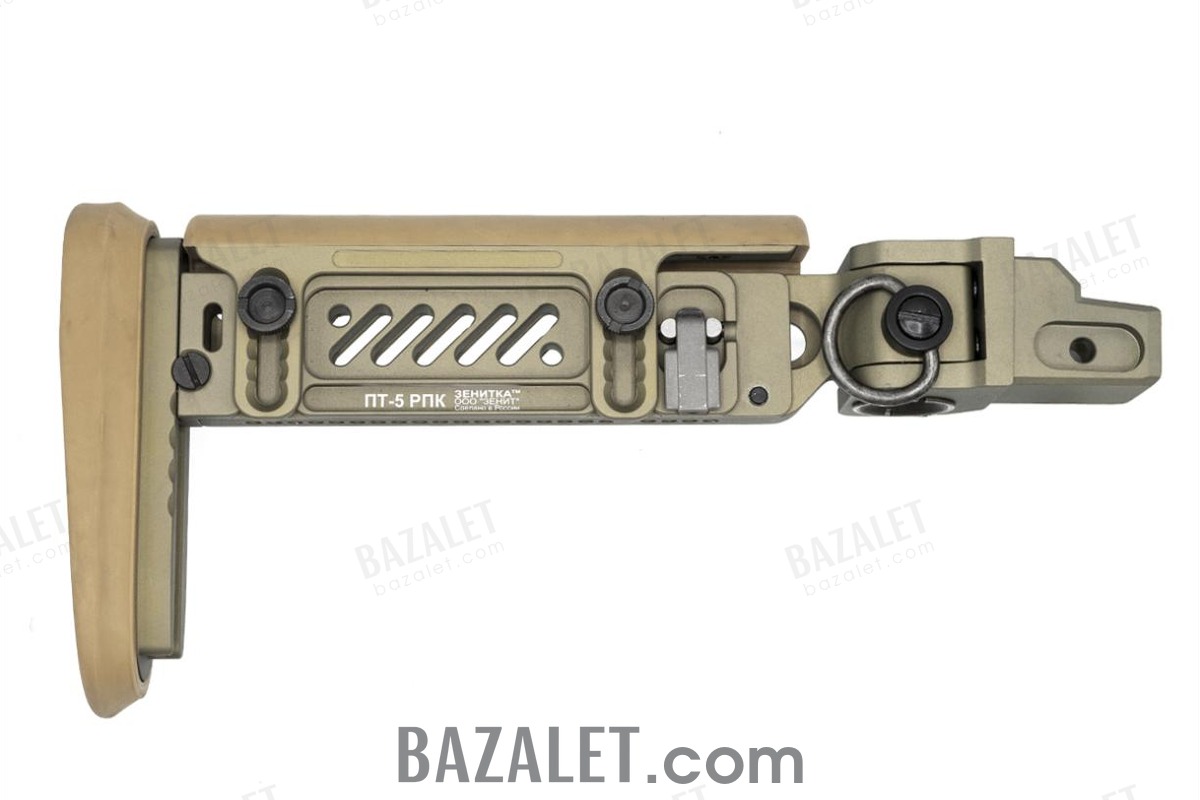

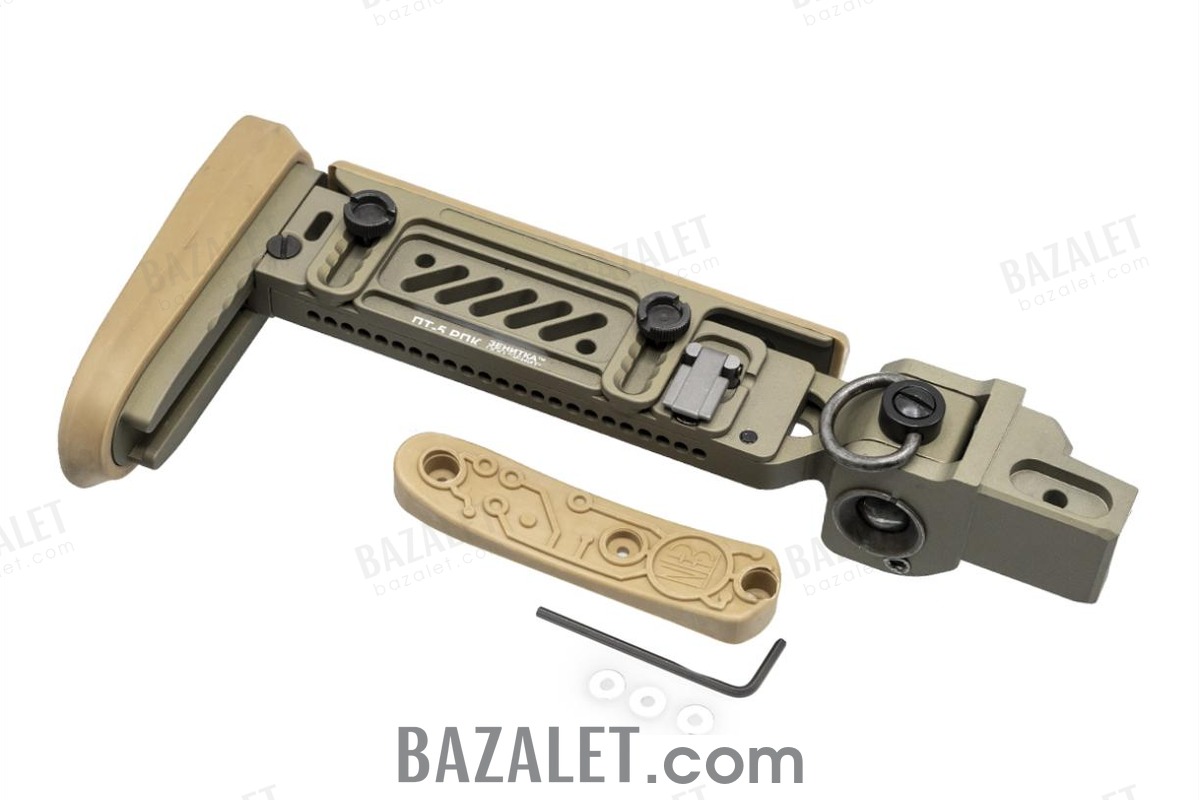

PT-5 RPK Telescopic Stock by Zenitco is a CNC-machined, skeleton-style folding stock designed for use with RPK-based rifles that originally come with fixed stocks. This modern upgrade allows you to replace the standard non-folding stock with a fully adjustable folding option.

Important: Not compatible with B-13 side mount brackets!

Key Features:

• Direct installation on RPK without modification
• Folding and adjustable stock design
• Cheek rest and buttpad height adjustment
• Telescopic mechanism with 100 mm range
• Can be folded and locked along the receiver at any length or cheek rest setting
• Allows use of iron sights in the lowest cheek position
• Two buttpad sizes included: wide and narrow

Specifications:

• Weight: 595 ± 10 g (with wide rubber buttpad)
• Dimensions: (261/361 × 121/142 × 49) mm
• Material: D16T hardened aircraft-grade aluminum alloy
• Color: Black
• Operating temperature range: -50°C to +50°C
• Warranty: 60 months

Package Contents:

• PT-5 RPK stock – 1 pc
• Hex key – 1 pc
• Rubber buttpad – 2 pcs (wide and narrow)
• User manual – 1 pc

Installation Instructions:

1. Remove the original stock by unscrewing its mounting screws and pulling it out.
2. Insert the PT-5 RPK stock into the receiver (tap gently with a mallet and spacer if needed), and tighten the screws.
3. To fold: Press the lower folding button and rotate the stock until it locks in place.
4. To unfold: Press the upper button and rotate the stock back into the extended position.
5. To adjust length: Lift the locking lever, press the button beneath it, extend or collapse the stock to desired length, and release the lever.
6. To adjust cheek height: Loosen the screws, set the cheek rest height, then retighten the screws.
7. To adjust buttpad height: Loosen the set screw, reposition the buttpad, then tighten the screw again.
8. Select and install the preferred rubber buttpad (wide or narrow).

Maintenance: Clean all moving parts of the telescopic mechanism during routine firearm maintenance.

This is an original Zenitco product. Available for worldwide delivery from Bazalet.
