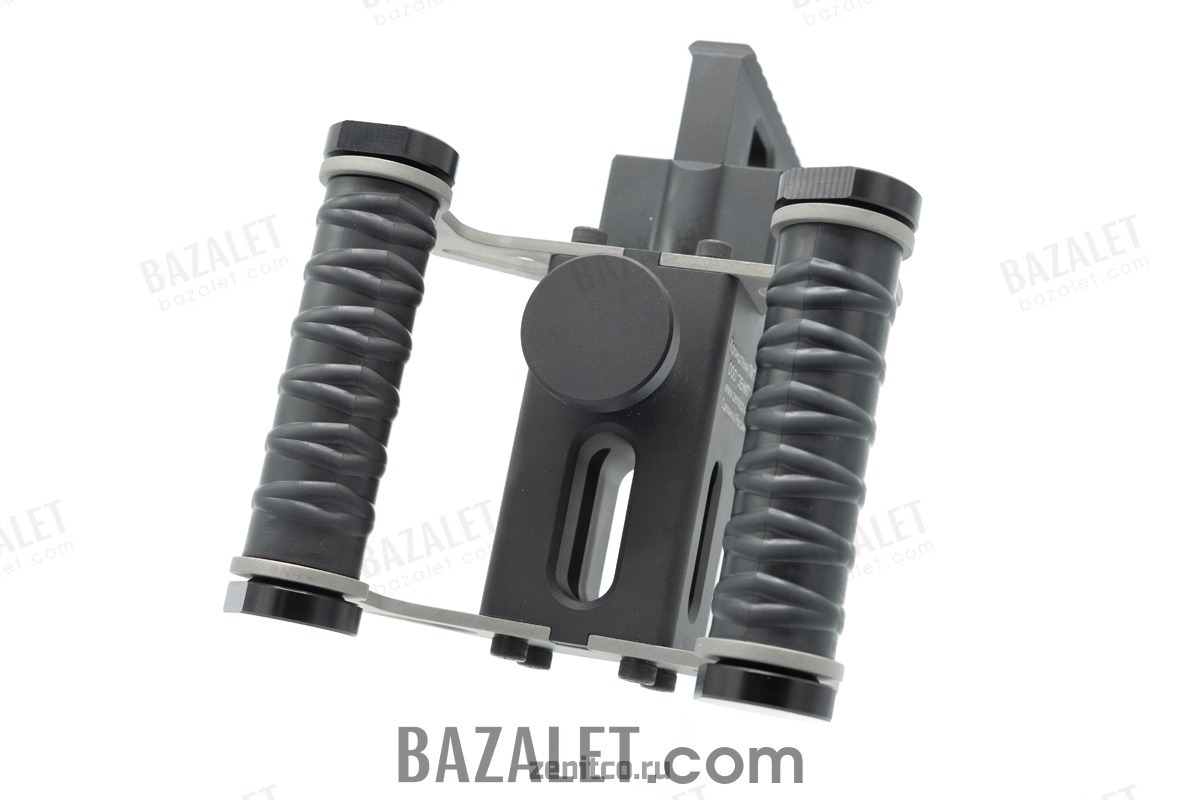

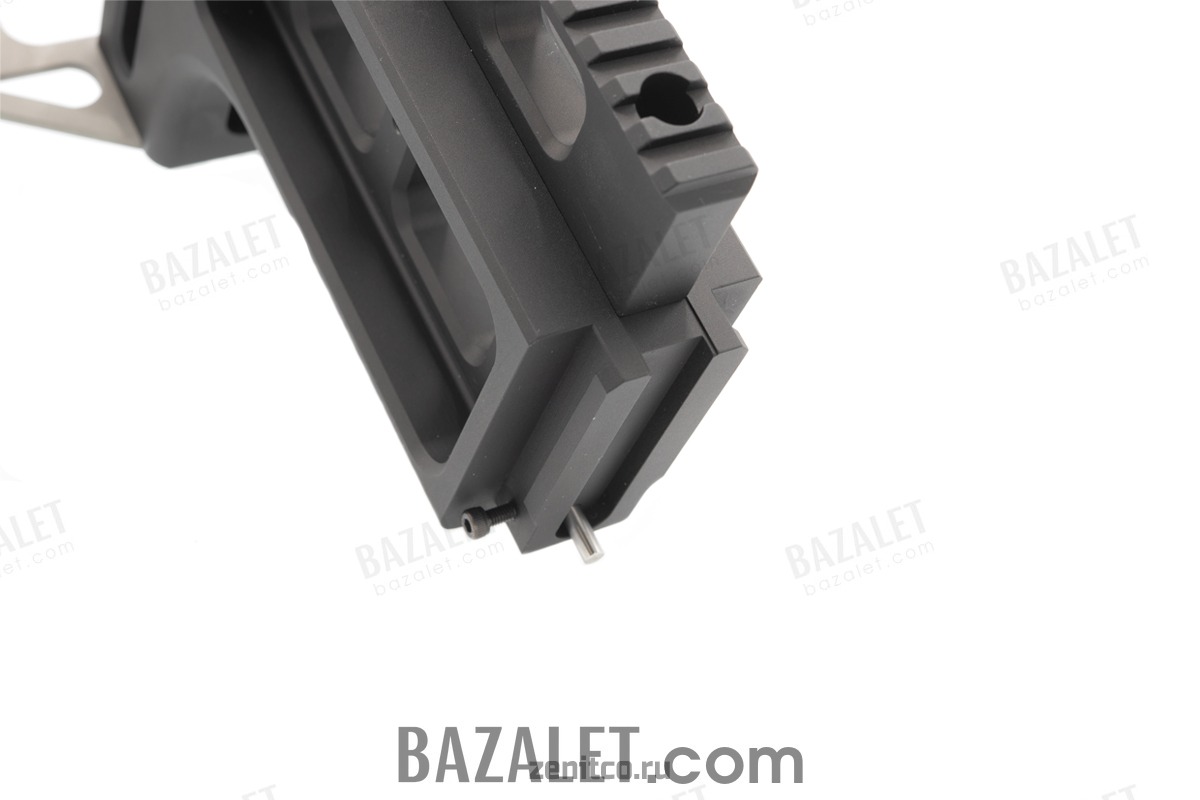

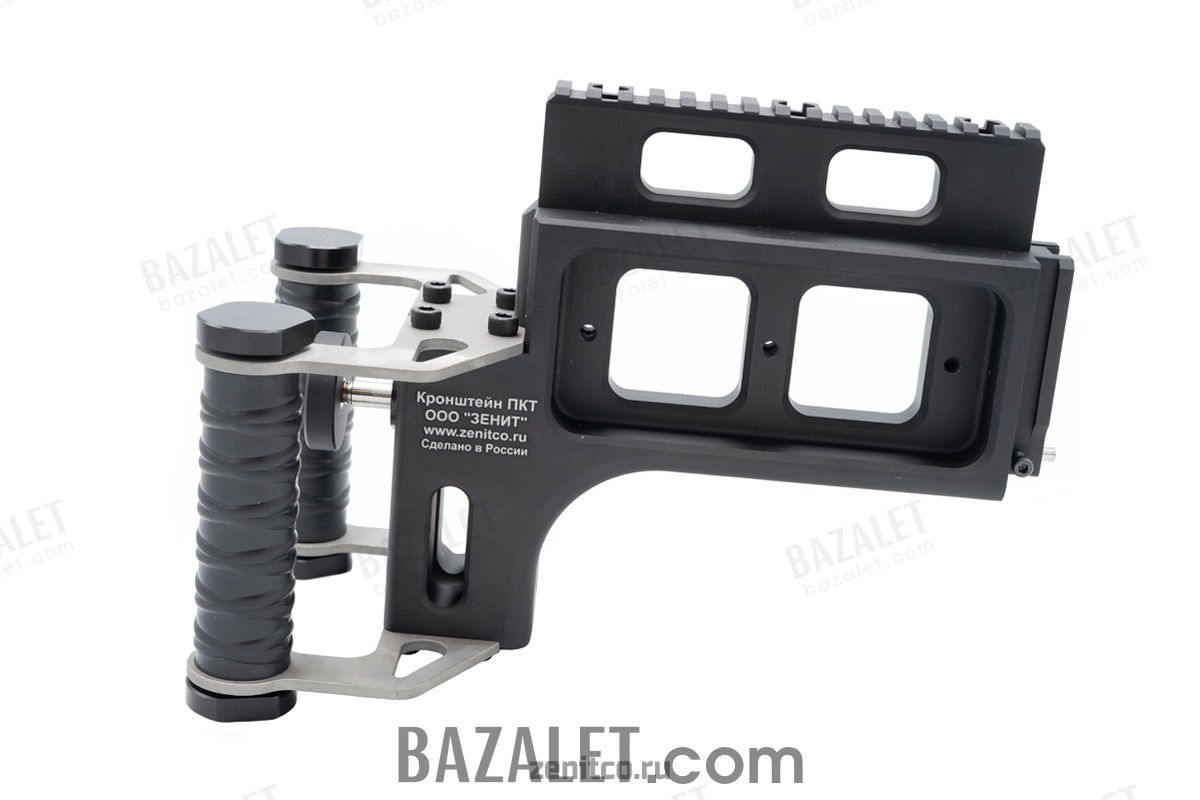

PKT Mount for Gran Monitor and Thermal Sight System

Purpose

The PKT Mount is designed to serve as a mounting base for the 8" “Gran” monitor and the thermal sighting and observation complex “Gran‑1N” 640‑50. In addition, it secures the PKT and enables mechanical triggering. This mount replaces the standard electric trigger mechanism.

Technical Specifications

• Weight: not more than 2750 ± 15 g
• Overall dimensions: (279 × 156 × 197) ± 5 mm
• Operating temperature range: from -50°C to +50°C
• Storage and operational service life: 60 months

Delivery Basis

• PKT Mount – 1 pc
• Mounting screw – 1 pc
• Hex key – 1 pc
• User manual – 1 pc

Installation

The PKT Mount is installed in place of the standard electric trigger device. Installation requires no special modifications and is performed using the supplied mounting screw and hex key. Once mounted, the bracket supports both the monitor and the thermal sight system in a stable configuration and allows mechanical control of the PKT.
