Zenitco KR-1U Extended Picatinny Light Mount
- $39

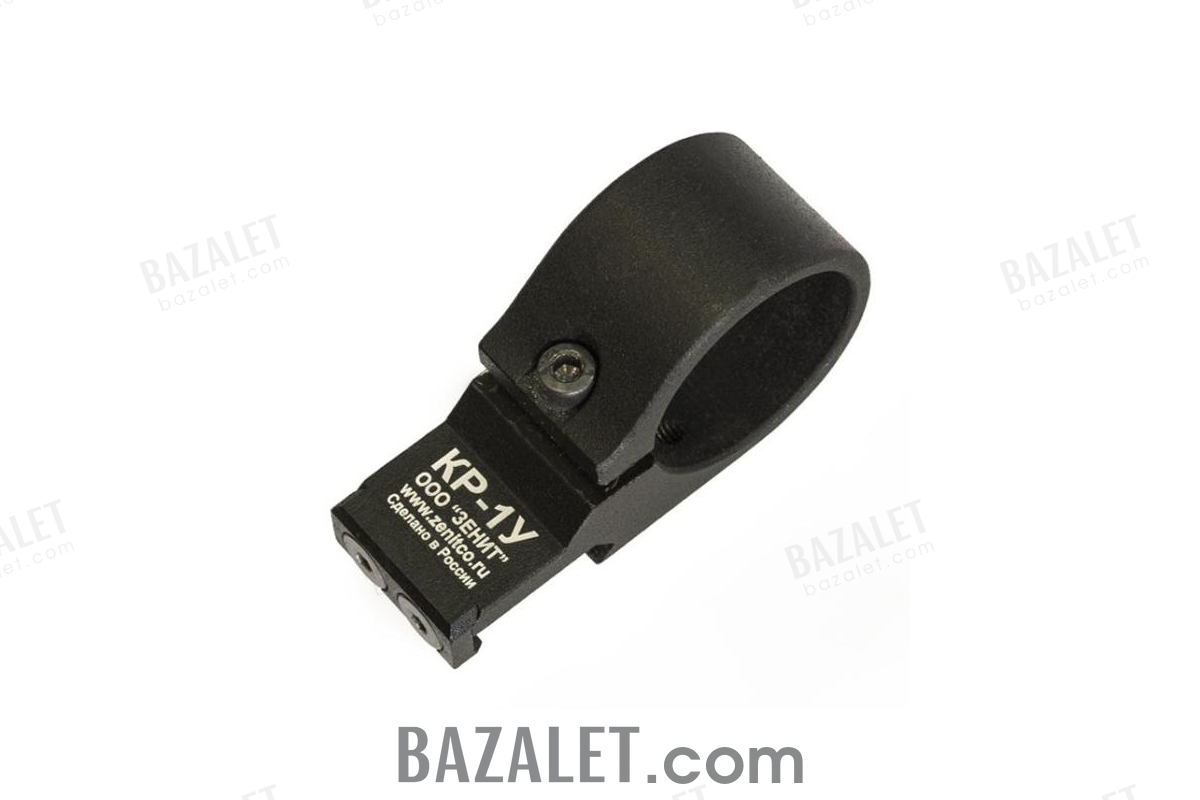

In short: The Zenitco KR-1U is an extended D16T aluminum mount for positioning a Zenitka-2GR or Zenitka-2D light beyond the end of a Picatinny rail. Its ring accepts a diameter up to 30 mm.
Compatibility checkpoint
- Documented lights: Zenitka-2GR and Zenitka-2D.
- Required interface: Picatinny rail.
- Ring limit: 30 mm maximum diameter.
Purpose
KR-1U carries the documented light forward beyond the rail while retaining a conventional Picatinny mounting point. Before ordering, confirm both the light model and available rail position.
Technical specifications
| Material and finish | D16T aluminum alloy, black finish |
|---|---|
| Dimensions | 122 × 30 × 18 mm, +2 mm |
| Weight | 48 +5 g |
| Maximum ring diameter | 30 mm |
| Operating range | −50°C to +50°C |
| Manufacturer warranty | 60 months |
What's in the Box
- KR-1U mount — 1
- Hex keys — 2
- Mounting screws — 3
- Operating manual — 1
Installation
Place KR-1U on the Picatinny rail and tighten its mounting screws with the supplied hex key. Position the compatible Zenitka light in the ring and tighten the ring screw. Recheck both connections after installation.
Related options: compare the compact Zenitco KR-1 and Zenitco KR-1B.
Frequently asked questions
Which lights are documented for KR-1U?
The manufacturer lists Zenitka-2GR and Zenitka-2D.
Which rail does KR-1U require?
It mounts to a Picatinny rail.
What is the maximum ring diameter?
The documented maximum is 30 mm.
What is supplied with the mount?
One KR-1U mount, two hex keys, three mounting screws and one operating manual.
