Zenitco KR-1 Picatinny Mount for Zenitka-2GR and 2D
- $39
Official distributorVerified product sourcing
Worldwide deliveryInternational destinations
Product supportBefore and after purchase

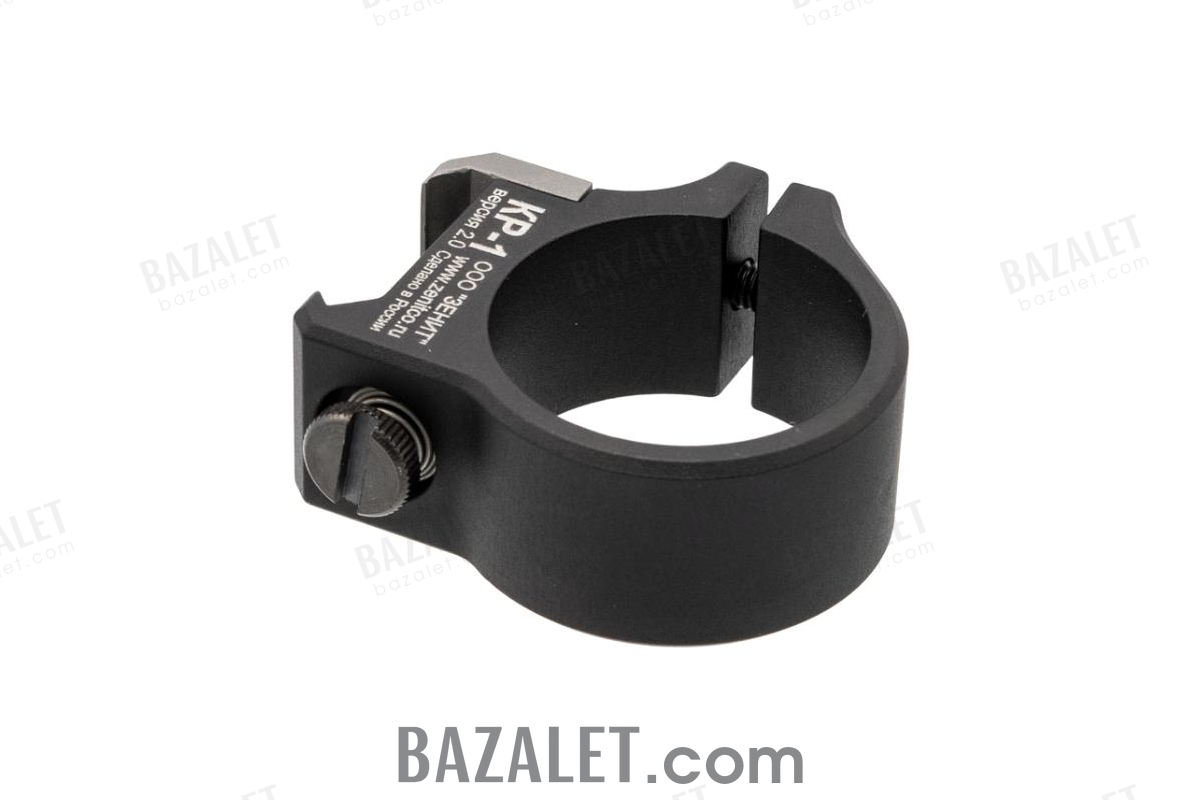

In short: The Zenitco KR-1 is a D16T aluminum ring mount that connects manufacturer-documented Zenitka-2GR and Zenitka-2D lights to a Picatinny rail. It replaces the middle rubber ring on the light body and secures with two connecting screws.
Compatibility checkpoint
- Documented lights: Zenitka-2GR and Zenitka-2D.
- Rail interface: Picatinny.
- Minimum ring diameter: 30 mm.
Technical specifications
| Material | D16T aluminum alloy |
|---|---|
| Finish | Black |
| Weight | 45 ± 5 g |
| Dimensions | 45 × 42 × 22 mm, ±5 mm tolerance |
| Minimum ring diameter | 30 mm |
| Manufacturer warranty | 60 months |
What's in the Box
- KR-1 mount — 1
- Hex key — 1
- Operating manual — 1
Installation
- Use the supplied hex key to remove the two connecting screws.
- Remove the middle of the three rubber rings from the compatible light body.
- Align the mount lug with the exposed groove.
- Secure the mount with both screws.
Frequently asked questions
Which lights fit the KR-1?
The current manufacturer record documents Zenitka-2GR and Zenitka-2D.
Which rail does KR-1 use?
It provides a Picatinny interface for the compatible light.
Does installation require a separate tool?
No. The required hex key is included with the mount.
What is the minimum ring diameter?
The documented minimum ring diameter is 30 mm.
General
Mounting interface
Picatinny
Product type
Light mount
Brand
Zenitco
Condition
New
Material
D16T aluminum alloy
Color / Finish
Black
Weight
45 ± 5 g
Dimensions (L x W x H) mm
45 × 42 × 22 mm, ±5 mm tolerance
Mounting & Rails
Mounting method
Picatinny
Function
Ring mount for manufacturer-documented Zenitka-2GR and Zenitka-2D lights; 30 mm minimum ring diameter
Care & Chemicals
Compatible platforms / hosts
Zenitka-2GR and Zenitka-2D lights
Required interface / configuration
documented light-body groove after removal of the middle rubber ring; compatible Picatinny rail
Resulting interface / function
fixed 30 mm ring-to-Picatinny mounting interface
Exclusions / limitations
other Zenitka models, incompatible body diameter and rails outside Picatinny
