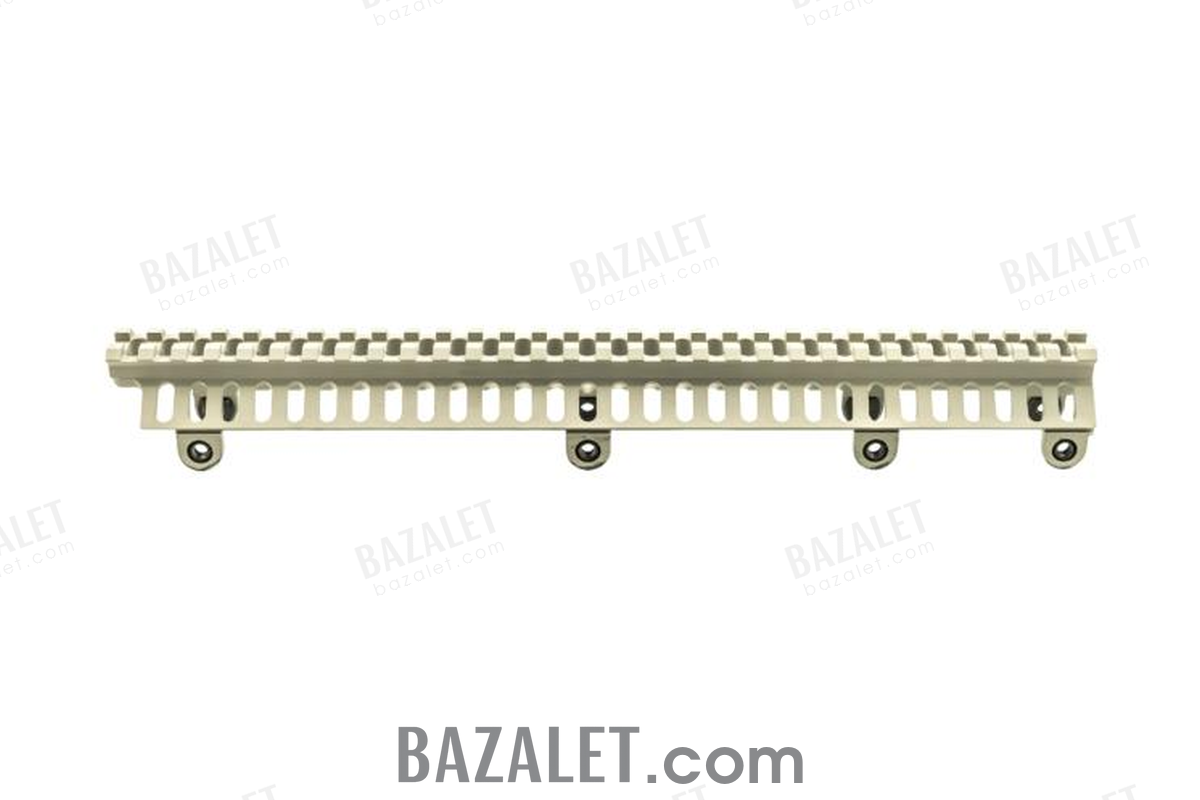

B-73 rail Joker-3 by Zenitco

B-73 rail Joker-3 by Zenitco is a full-length upper handguard designed for AR-15 carbines. Replacing the original top handguard, it features a robust Picatinny rail (306 mm) for attaching a wide range of tactical accessories.

The B-73 is a one-piece milled product made from D16T aluminum alloy with a black protective coating. It provides high structural integrity, improves barrel cooling, and ensures accessory compatibility with minimal added weight.

Operational Benefits:

• High-strength monolithic design
• Enhanced cooling for the barrel
• Mounts various optics and accessories
• Lightweight and compact profile

Specifications:

• Weight: 130 ± 3 g
• Dimensions: 306 × 39 × 38 mm (12.04")
• Material: D16T aluminum alloy
• Color: black
• Operating temperature: -50°C to +50°C
• Warranty: 60 months

Installation Instructions:

1. Dismantle the muzzle device, standard forend, gas block, and mounting nut.
2. Install the Zenitco fastening nut after removing the pre-locking nut.
3. Mount the lower handguard B-83 and secure the fixing nut.
4. Install the adjustable gas block and tighten its screws through the access holes in the B-83 bracket.
5. Align the lower bracket with the upper receiver for a continuous Picatinny rail profile.
6. Secure the bracket using the provided key.
7. Place the B-73 upper handguard on the lower bracket and fasten with four screws.
8. Install accessories as needed.

Original Zenitco product. Distributed globally by Bazalet.
