Zenitco B-5VU V2.0 QD Riser Mount - Extended See-Through Picatinny-to-Picatinny Riser Adapter with Quick-Detach Lever (Black)
- $149
Official distributorVerified product sourcing
Worldwide deliveryInternational destinations
Product supportBefore and after purchase
Available Options
Zenitco B-5VU QD Riser Mount (V2.0)
Genuine Zenitco | Extended Picatinny-to-Picatinny riser adapter | See-through optical channel underneath | Quick-detach lever (V2.0) | Black

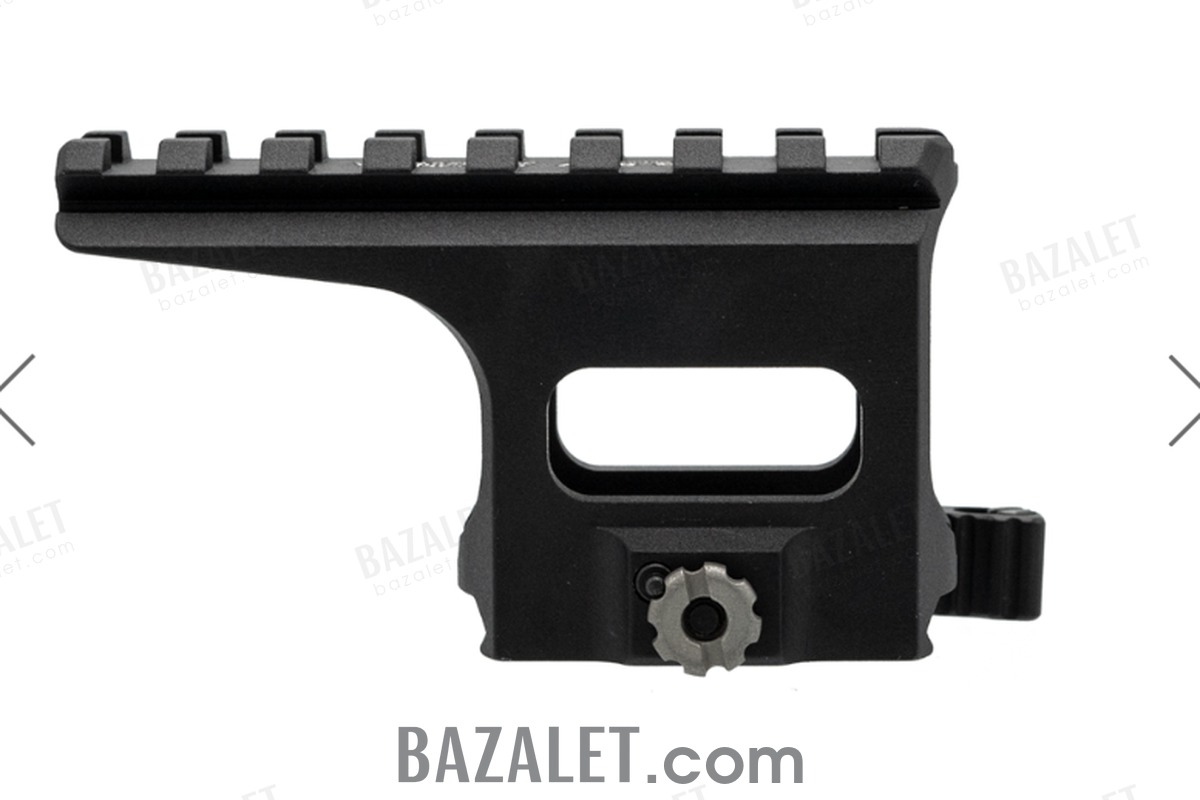

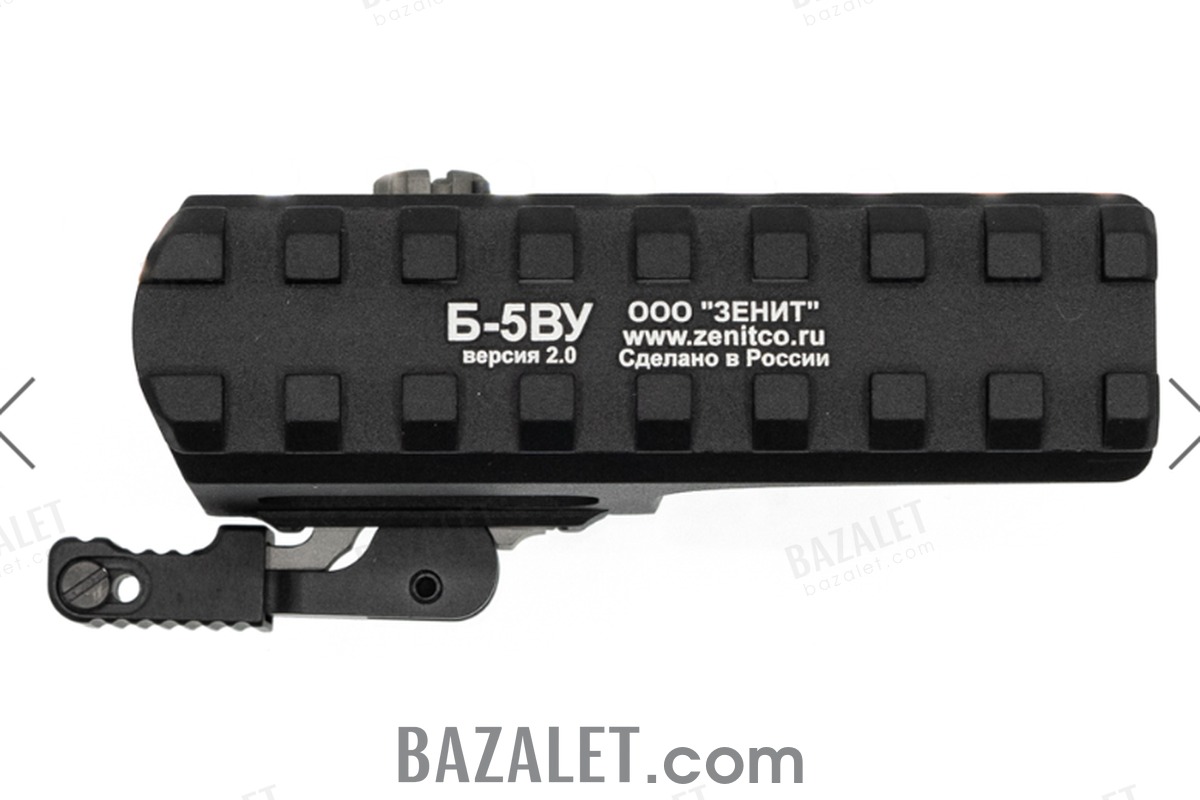

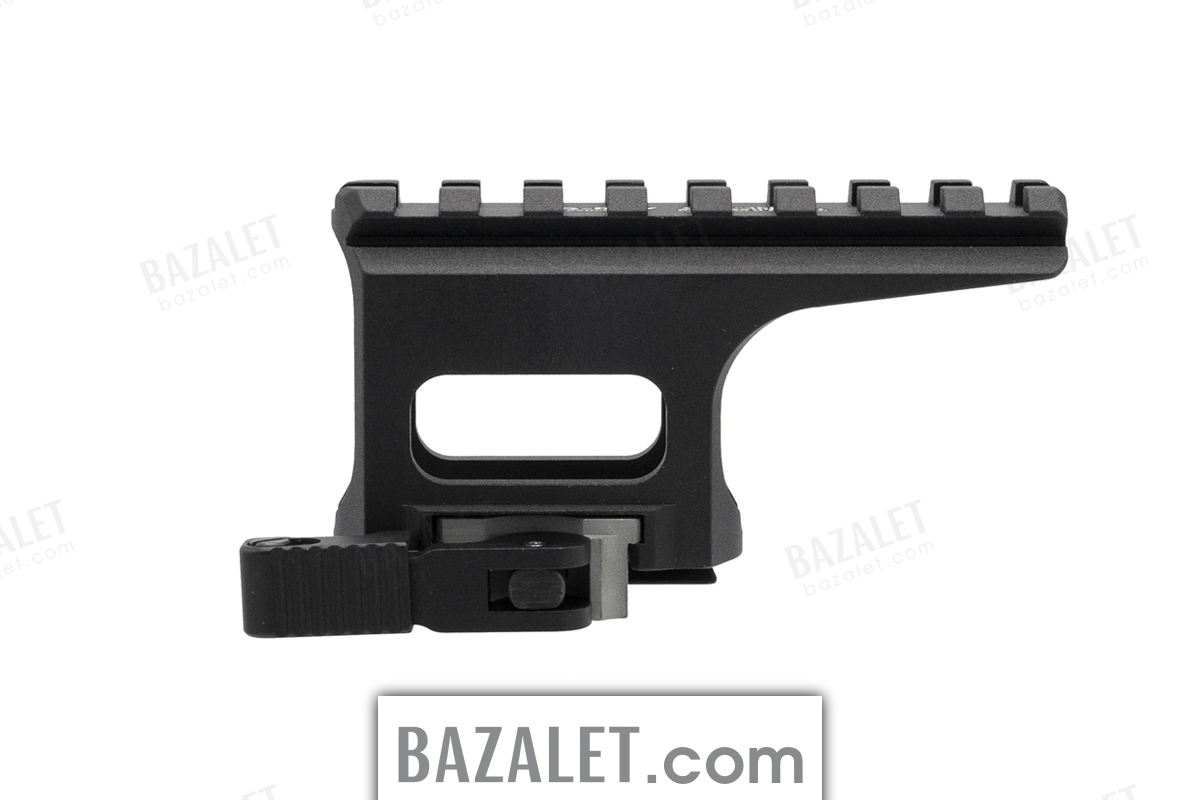

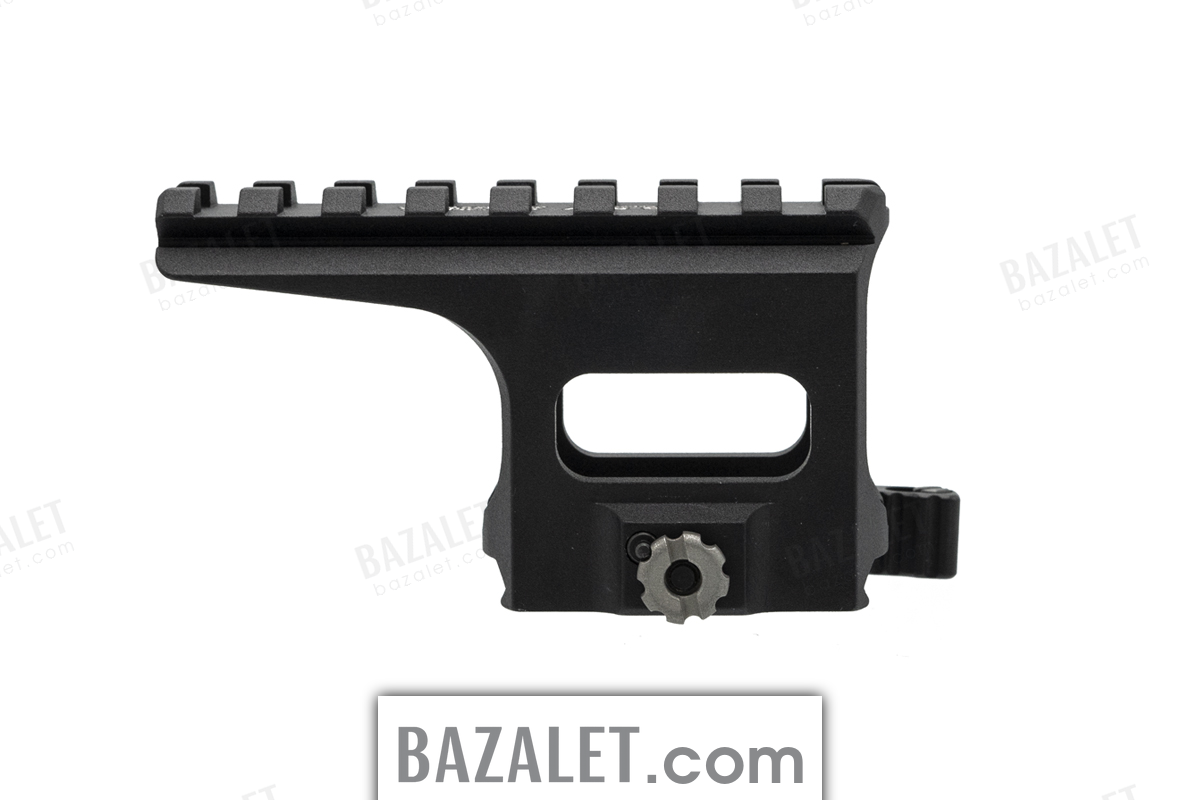

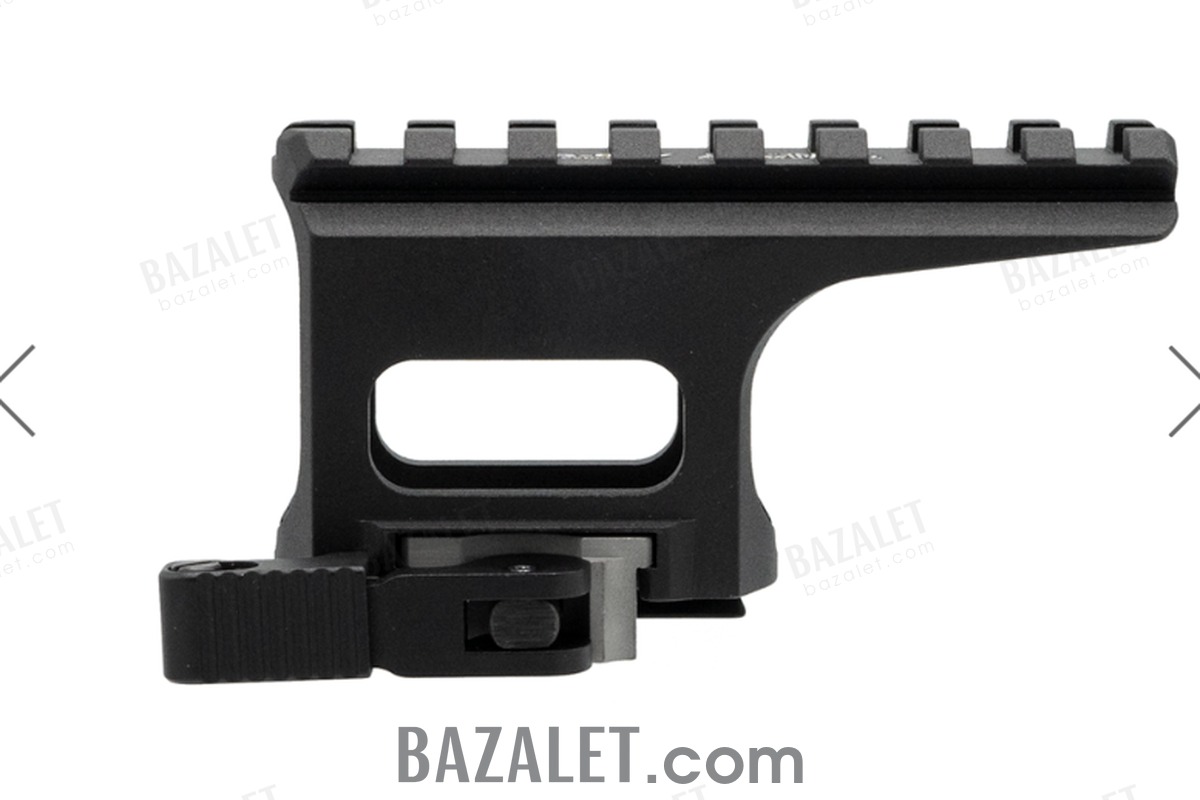

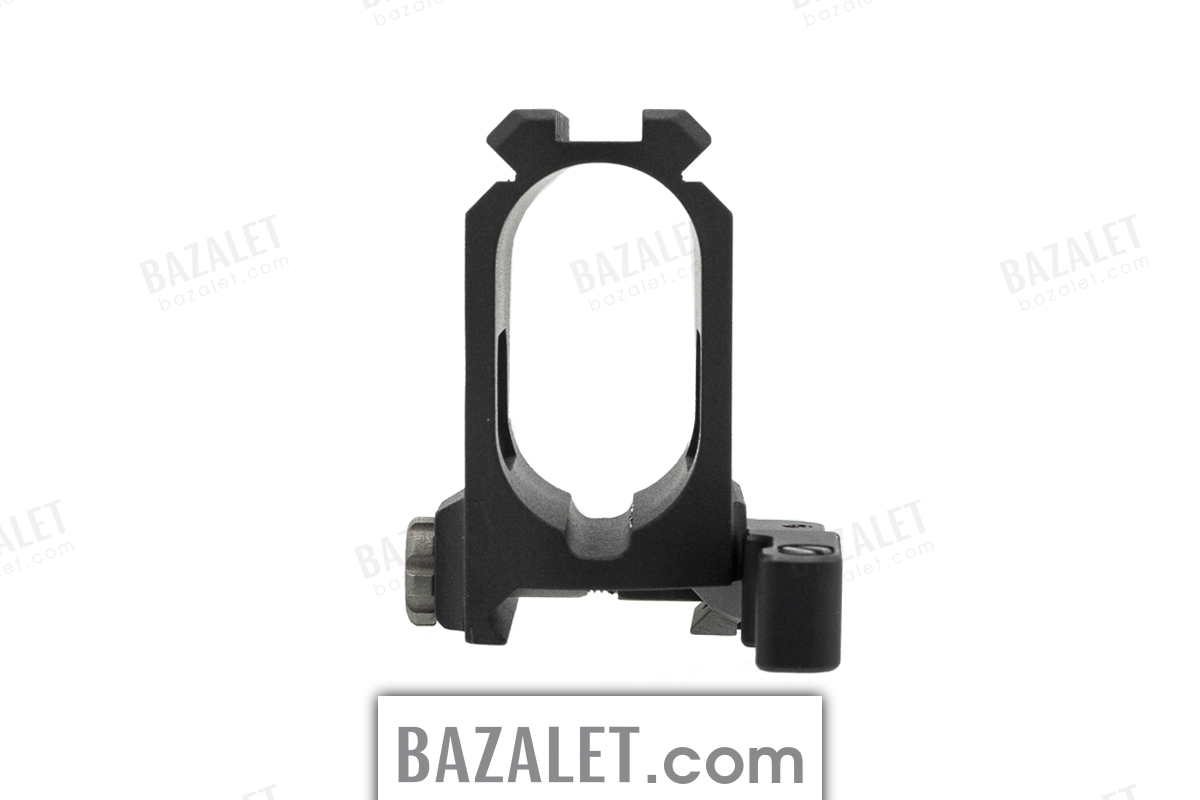

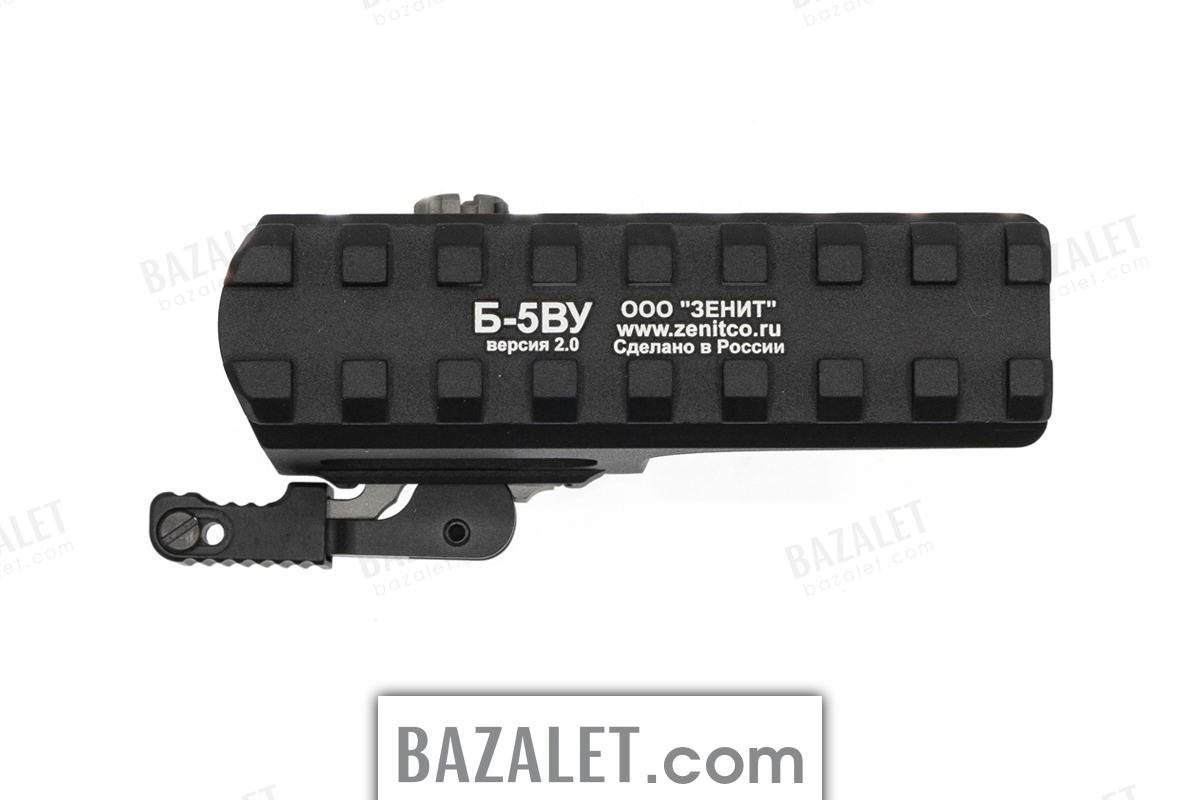

In short: the Zenitco B-5VU is the extended version of the B-5 riser. It clamps onto a Picatinny rail and provides a longer Picatinny rail higher up, leaving a see-through optical channel between the two levels. The longer top rail suits larger optics and thermal units; the V2.0 version uses a quick-detach lever for tool-free mounting with a repeatable return to zero.
Overview
The B-5VU V2.0 is the tall member of the Zenitco riser family. It is a Picatinny-to-Picatinny adapter with an optical channel between the two rail surfaces.
Its height is chosen so that a Gran thermal device and a red dot sight with a 30 mm optical axis can be used together on one platform - the thermal device below, the red dot sight above, both on their own mounting line.
Compatibility covers the Vzor-1 on the PV-30 spacer supplied with the sight, the Vzor-3, Vzor-3T and Vzor-3TK on the PV-30 spacer sold separately, and the Vzor-5, Vzor-5T and Vzor-5TK in their standard configuration. At 84 g the riser adds little to the balance of the platform.
What's in the Box
| ✓Zenitco B-5VU V2.0 Riser Mount | x 1 |
Compatibility: mounts on any standard Picatinny rail and accepts any Picatinny-footprint optic, red-dot platform, thermal or accessory on its raised rail. The open channel underneath keeps a lower optic or backup sights visible through the riser.
Key Advantages
- Extended top rail - more mounting length for larger optics and thermal units
- Raises an optic while keeping a see-through channel to the rail below
- Quick-detach lever (V2.0) - tool-free on and off, repeatable position
- Clamps to any standard Picatinny rail
- CNC-milled D16T aluminum alloy - light at 84 g
Technical Specifications
| Brand | Zenitco |
| Type | Extended Picatinny-to-Picatinny riser adapter (see-through channel) |
| Version | V2.0 (quick-detach lever) |
| Material | D16T aluminum alloy (CNC) |
| Mount | Picatinny, quick-detach lever |
| Dimensions | 95 × 42 × 52 mm (± 2 mm) |
| Weight | 84 g (± 5 g) |
| Colors | Black |
| MPN | B-5VU |
| Condition | New |
In the Box
- B-5VU V2.0 riser with quick-detach lever
- User manual
Frequently Asked Questions
How is the B-5VU different from the B-5?
The B-5VU has a longer top rail, giving more mounting length for larger optics and thermal units. Both leave a see-through channel underneath.
How does it attach?
With a quick-detach lever (V2.0) onto any standard Picatinny rail - no tools needed.
What can I mount on it?
Any Picatinny-footprint optic, red-dot platform, thermal or accessory.
Do I need the PV-30 spacer?
The Vzor-1 ships with it. The Vzor-3, Vzor-3T and Vzor-3TK need it and it is sold separately. The Vzor-5 line does not need it.
Why would I choose the B-5VU over the B-5V?
The B-5VU is taller. It is the version to pick when a Gran thermal device has to sit under the red dot sight, or when the sight has a 30 mm optical axis.
Is this a genuine Zenitco part?
Yes - it is an original Zenitco B-5VU V2.0 with guaranteed US delivery.
Genuine Zenitco B-5VU V2.0 extended quick-detach Picatinny riser with see-through channel.
Installation
Confirm the required interface before installation: Picatinny base rail and the mount's adjustable quick-detach clamp. Fit the component according to the manufacturer instructions, then verify the resulting interface or function: extended raised Picatinny surface with a see-through channel below.
Zenitco Specs
Component type
Riser mount
General
Brand
Zenitco
Manufacturer Part Number (MPN)
Extended Picatinny-to-Picatinny riser adapter (see-through channel), quick-detach V2.0
Condition
New
Intended Use
Extended riser that raises an optic on a Picatinny rail and leaves a see-through channel underneath; quick-detach lever
Material
D16T aluminum alloy (CNC); Picatinny quick-detach mount
Color / Finish
Black
Weight
84 g (+/- 5 g)
Dimensions (L x W x H) mm
95 x 42 x 52 mm (+/- 2 mm)
Operating Temperature
-50 to +50 °C
Mounting & Rails
Mounting method
Mounts on any standard Picatinny rail; longer top rail for larger optics and thermal units; open channel keeps a lower optic or backup sights visible
Rail Type
Zenitco B-5VU V2.0 extended Picatinny-to-Picatinny riser adapter; CNC D16T aluminum; quick-detach lever; see-through optical channel; 95 x 42 x 52 mm; 84 g
Function
Zenitco B-5VU V2.0 QD riser mount, extended see-through Picatinny-to-Picatinny riser adapter with quick-detach lever, black
Care & Chemicals
Compatible platforms / hosts
standard Picatinny mounting rails
Required interface / configuration
Picatinny base rail and the mount's adjustable quick-detach clamp
Resulting interface / function
extended raised Picatinny surface with a see-through channel below
Exclusions / limitations
non-Picatinny bases and installations where the clamp cannot seat fully
