Zenitco B-5 QD Riser Mount (V2.0)
Genuine Zenitco | Picatinny-to-Picatinny riser adapter | See-through optical channel underneath | Quick-detach lever (V2.0) | Black
In short: the Zenitco B-5 is a compact riser that clamps onto a Picatinny rail and provides a second Picatinny rail higher up, leaving a see-through optical channel between the two levels. The V2.0 version uses a quick-detach lever for tool-free mounting and removal with a repeatable return to zero.
Overview
The B-5 V2.0 is a Picatinny-to-Picatinny riser that raises an accessory while leaving an optical channel underneath. Through that channel the standard iron sights stay visible, so a red dot sight and a mechanical backup can be used on the same platform.
The current version carries a quick-detach lever with a safety catch. Opening the lever frees the riser, closing it clamps the mount back onto the rail in the same slot, so an optic mounted on the riser returns close to its previous zero.
If play appears after long use, the clamp is adjusted without tools beyond a flat screwdriver: press the screw catch, turn the screw clockwise until the play disappears and release the catch so it drops into the slot of the screw. Two versions exist - with and without the quick-detach lever.
| ✓Zenitco B-5 V2.0 Riser Mount with Quick-Detach Lever | x 1 |
| ✓User Manual | x 1 |
Compatibility: mounts on any standard Picatinny rail and accepts any Picatinny-footprint optic, red-dot platform or accessory on its raised rail. The open channel underneath lets you keep a lower optic or backup sights visible through the riser.
Key Advantages
- Raises an optic while keeping a see-through channel to the rail below
- Quick-detach lever (V2.0) - tool-free on and off, repeatable position
- Clamps to any standard Picatinny rail
- Compact and rigid - CNC-milled D16T aluminum alloy
- Complete with quick-detach mechanism and user manual
Technical Specifications
| Brand | Zenitco |
| Type | Picatinny-to-Picatinny riser adapter (see-through channel) |
| Version | V2.0 (quick-detach lever) |
| Material | D16T aluminum alloy (CNC) |
| Mount | Picatinny, quick-detach lever |
| Dimensions | 80 × 40 × 25 mm (± 2 mm) |
| Colors | Black |
| MPN | B-5 |
| Condition | New |
In the Box
- B-5 V2.0 riser with quick-detach lever
- User manual
Frequently Asked Questions
What is the B-5 for?
It raises an optic on a Picatinny rail and leaves a see-through channel underneath, so a lower optic or backup sights stay visible.
How does it attach?
With a quick-detach lever (V2.0) onto any standard Picatinny rail - no tools needed.
What can I mount on it?
Any Picatinny-footprint optic, red-dot platform or accessory.

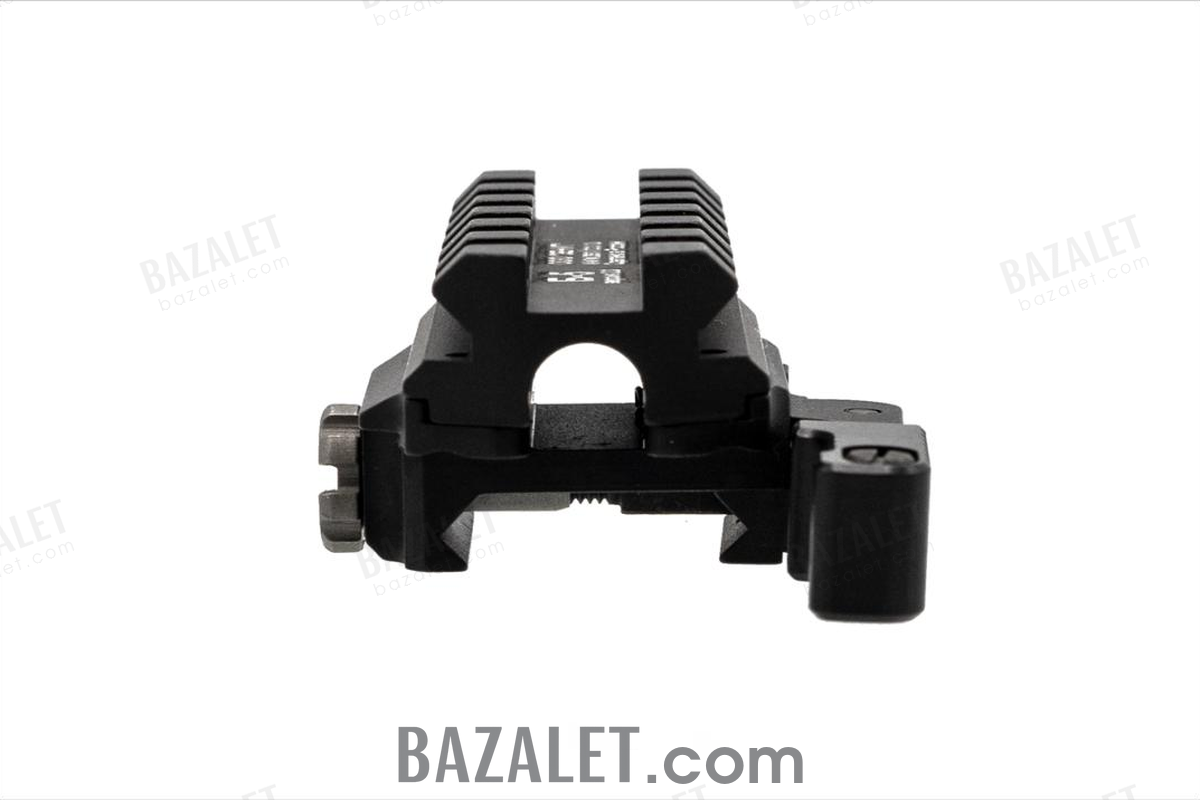

What does the optical channel do?
It leaves the line through the standard iron sights clear, so a mechanical backup sight can be used with an optic installed on the riser.
What do I do if the mount develops play?
Press the screw catch, turn the clamp screw clockwise with a flat screwdriver until the play disappears, then release the catch so it seats in the slot of the screw.
Is this a genuine Zenitco part?
Yes - it is an original Zenitco B-5 V2.0 with guaranteed US delivery.
Related products: the
B-5VU V2.0 extended riser, the
B-5U riser, and the
B-25U adapter, all by Zenitco.
Genuine Zenitco B-5 V2.0 quick-detach Picatinny riser with see-through channel.
In Stock | Guaranteed US Delivery | Genuine Zenitco Part
General
Brand
Zenitco
Manufacturer Part Number (MPN)
Picatinny-to-Picatinny riser adapter (see-through channel), quick-detach V2.0
Condition
New
Intended Use
Riser that raises an optic on a Picatinny rail and leaves a see-through channel underneath; quick-detach lever
Material
D16T aluminum alloy (CNC); Picatinny quick-detach mount
Color / Finish
Black
Weight
61 ± 5 g
Dimensions (L x W x H) mm
80 x 40 x 25 mm (+/- 2 mm)
Operating Temperature
-50 to +50 °C
Mounting & Rails
Mounting
Mounts on any standard Picatinny rail; accepts any Picatinny-footprint optic, red-dot platform or accessory; open channel keeps a lower optic or backup sights visible
Rail Type
Zenitco B-5 V2.0 Picatinny-to-Picatinny riser adapter; CNC D16T aluminum; quick-detach lever; see-through optical channel; 80 x 40 x 25 mm
Function
Zenitco B-5 QD riser mount V2.0, see-through Picatinny-to-Picatinny riser adapter with quick-detach lever, black
