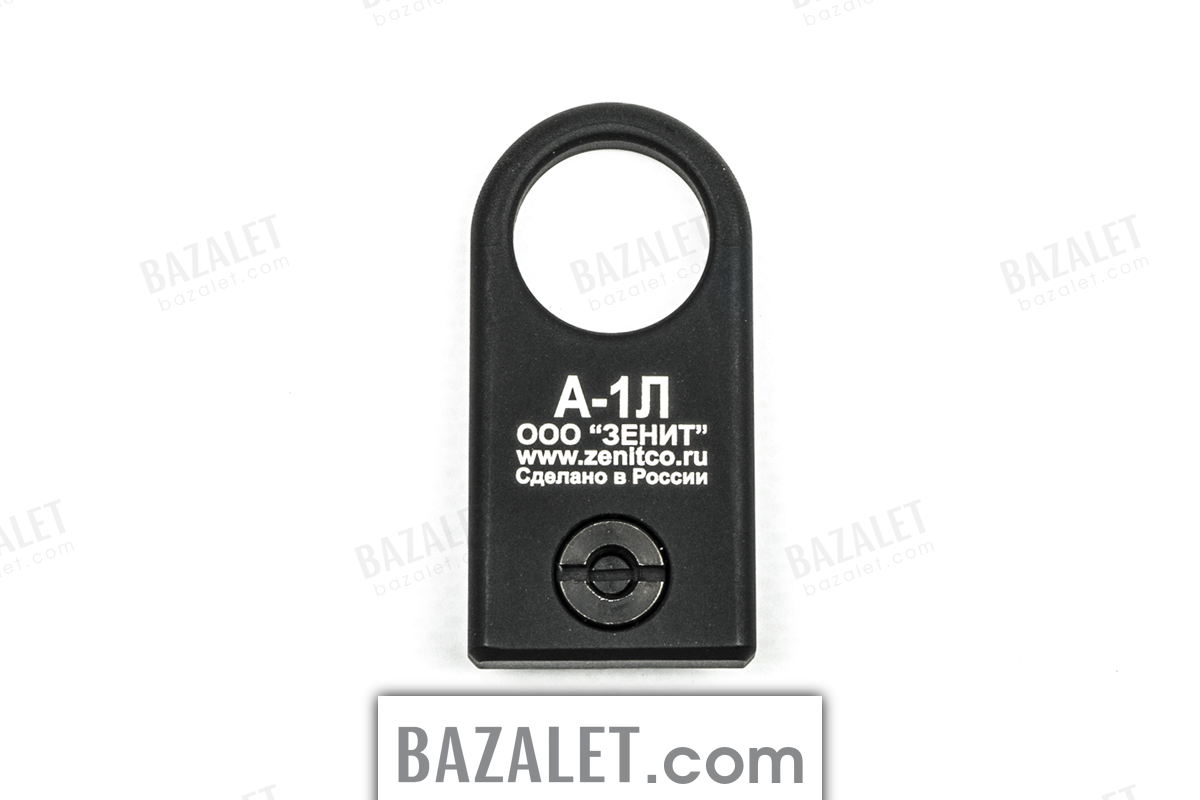

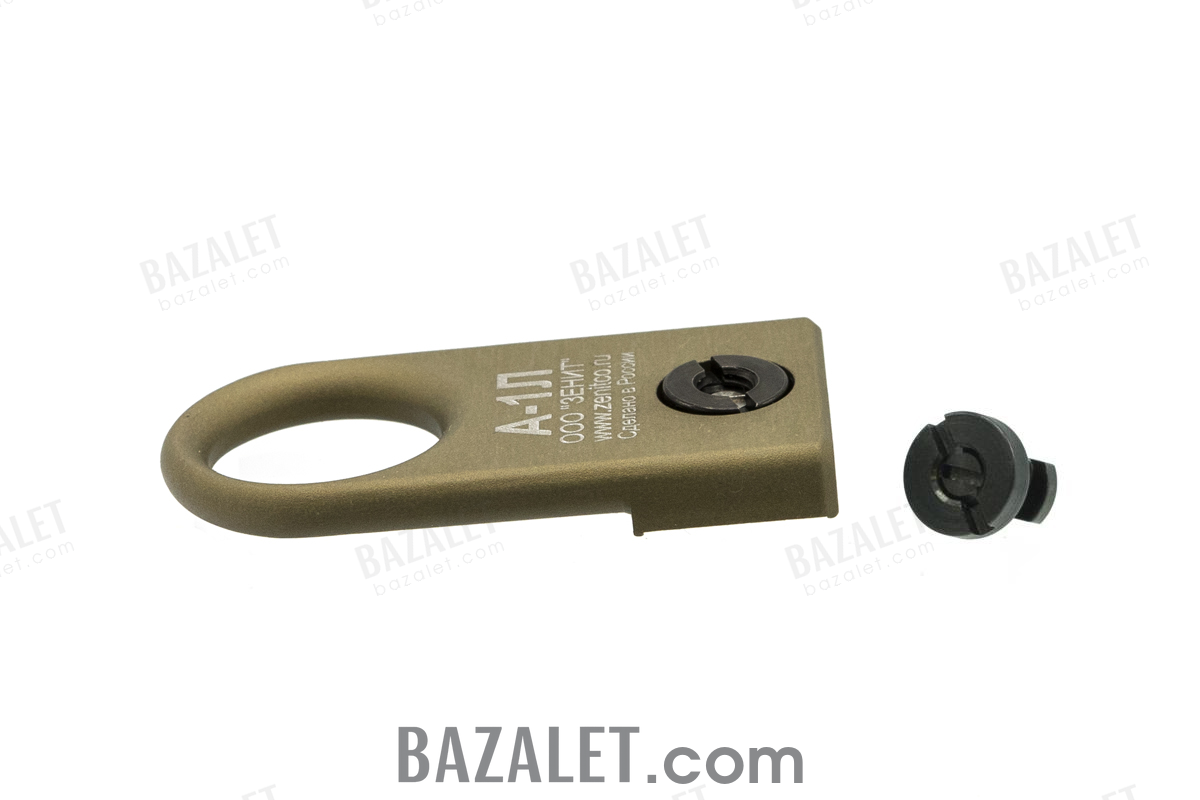

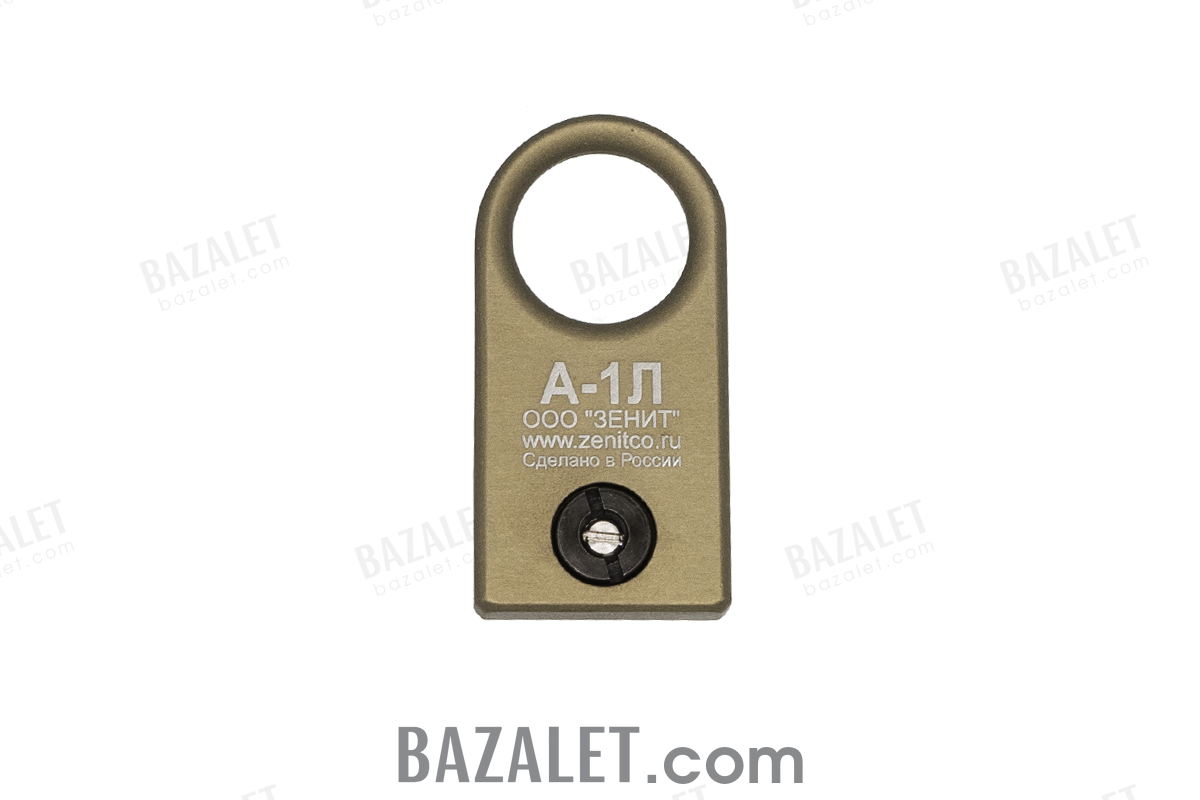

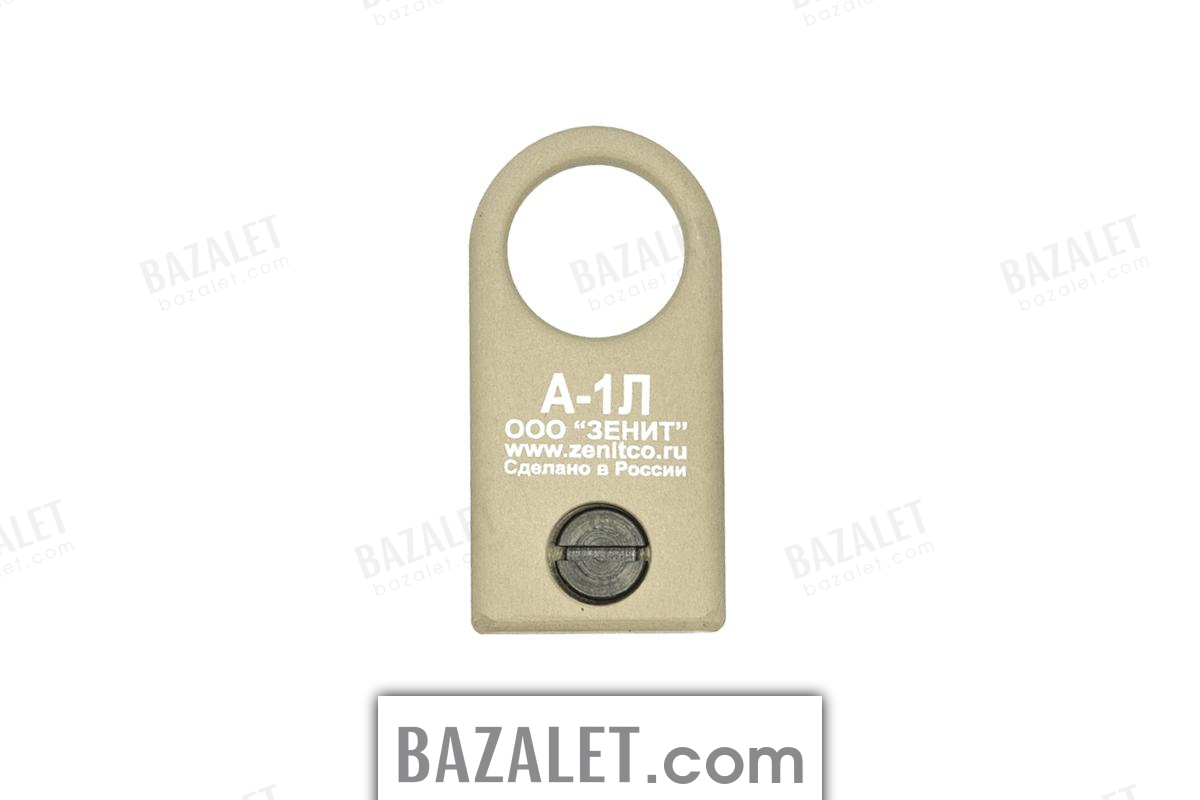

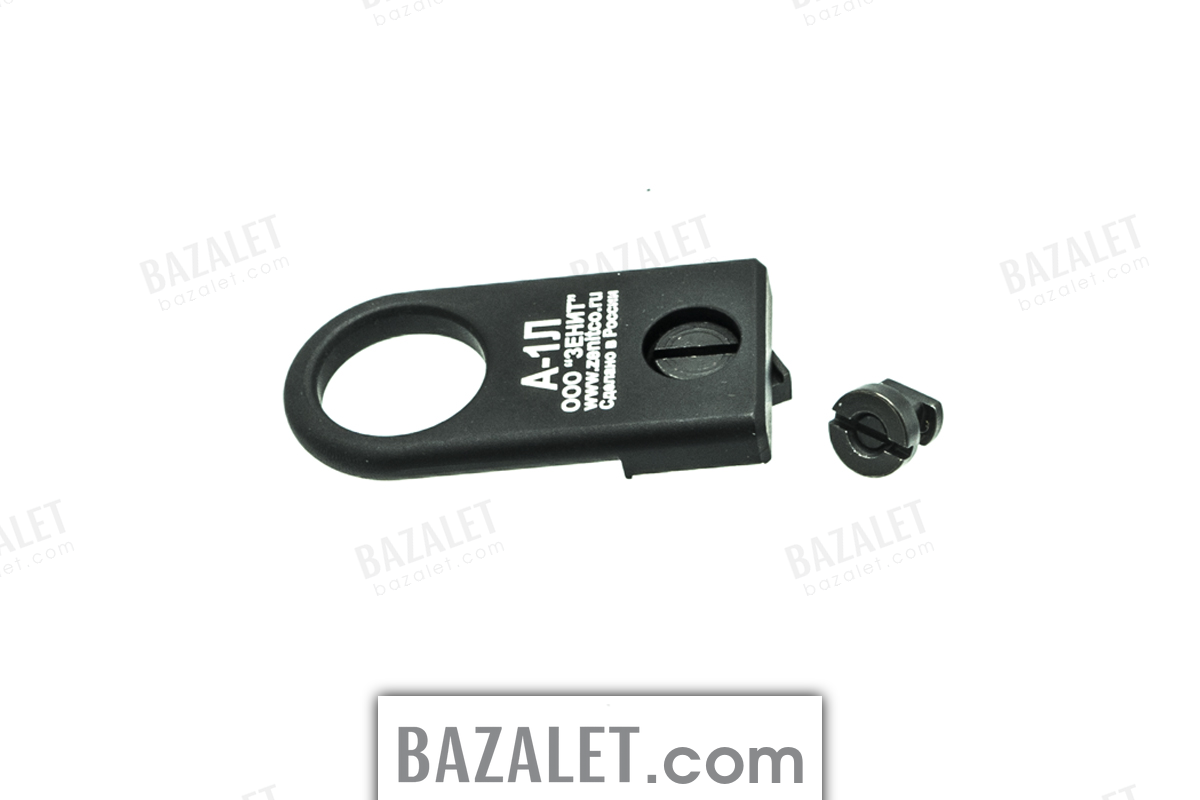

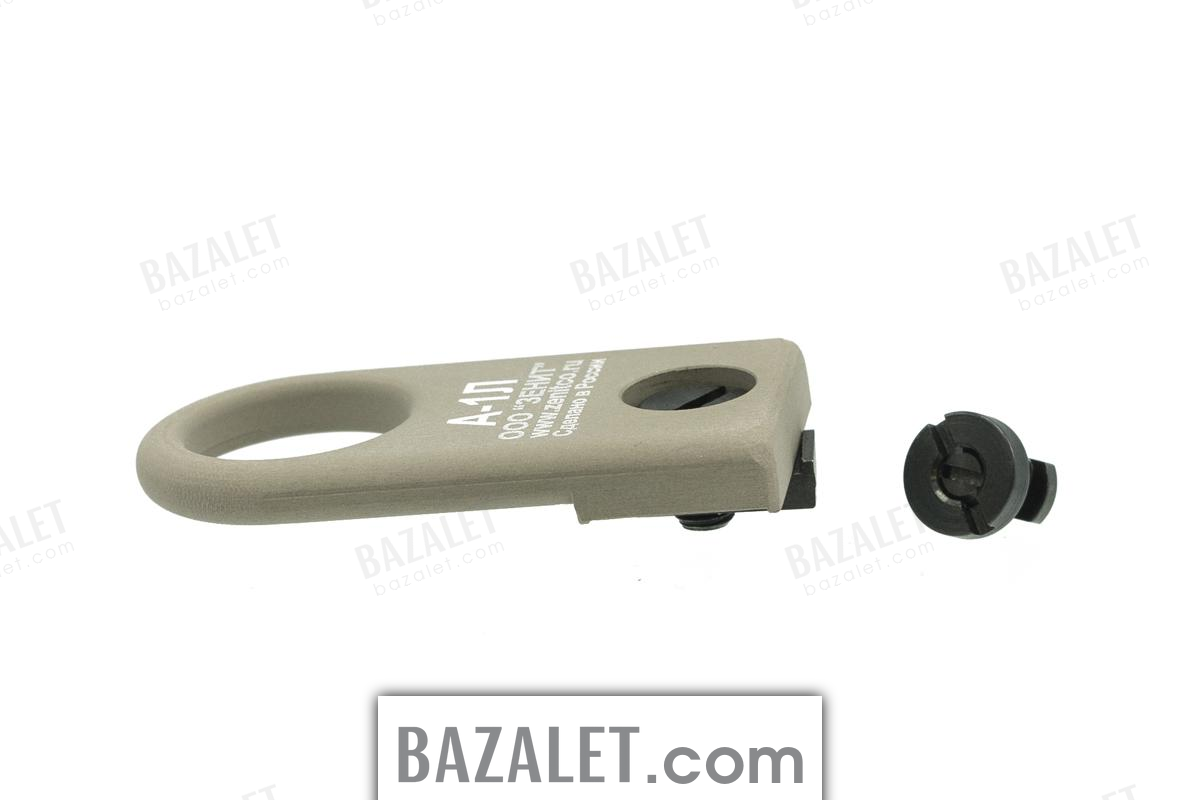

Zenitco A-1L Sling Mount for Bazis Guide
- $49
Available Options
In short: Zenitco A-1L is a milled D16T aluminum sling mount for a Bazis guide. It secures with one screw and the supplied cam clamp, measures 49 × 26 × 10 mm with a +2 mm manufacturer tolerance, and weighs 13 + 2 g.
Bazis, not Picatinny
A-1L attaches directly to a compatible Bazis guide. It does not clamp to a Picatinny rail. For the Picatinny version, choose the separate A-1 sling mount.
Compatibility and positioning
The manufacturer documents A-1L for the Bazis interface. It can be positioned at a suitable point along the guide and is used with compatible handguards and extensions that provide Bazis. The A-2L is a separate Bazis sling-mount design; the A-4 bracket is the separate option for compatible quick-detach swivels.
Technical specifications
| Interface | Zenitco Bazis guide |
|---|---|
| Material | Milled D16T aluminum alloy |
| Attachment | One screw with cam clamp |
| Dimensions | 49 × 26 × 10 mm; manufacturer tolerance +2 mm |
| Weight | 13 + 2 g |
| Operating range | −50°C to +50°C |
| Manufacturer warranty | 60 months, subject to the operating instructions |
What's in the Box
- A-1L sling mount — 1
- Cam clamp — 1
- Operating manual — 1
Installation
- Loosen the mounting screw.
- Place A-1L at the selected position on the compatible Bazis guide.
- Tighten the screw and confirm that the mount is secure before use.
Color selection
Choose Black, Desert or Golden Khaki before adding the product to the cart. The gallery contains two matching views for each current store finish.
Frequently asked questions
Does A-1L fit Picatinny?
No. A-1L fits a Bazis guide. A-1 is the separate Picatinny version.
How is A-1L secured?
It uses one screw and the supplied cam clamp.
Can its position be adjusted?
It can be installed at a suitable point along a compatible Bazis guide.
What is included?
One A-1L sling mount, one cam clamp and one operating manual.
