Zenitco A-1 Sling Mount for Picatinny Rail
- $59
Available Options
In short: Zenitco A-1 is a milled D16T aluminum sling mount for a Picatinny rail. A pressure plate and two screws secure it at a suitable point on the rail. It measures 49 × 26 × 10 mm with a +2 mm manufacturer tolerance and weighs 18 + 2 g.
Picatinny, not Bazis
A-1 clamps to a Picatinny rail. It does not mount directly to a Bazis guide. For the Bazis version, choose the separate A-1L sling mount.
Compatibility and positioning
The manufacturer documents A-1 for any compatible Picatinny interface. Its position can be selected along the available rail section. For Bazis interfaces, compare the fixed A-1L and the A-4 bracket for a compatible quick-detach swivel.
Technical specifications
| Interface | Picatinny rail |
|---|---|
| Material | Milled D16T aluminum alloy |
| Attachment | Pressure plate with two screws |
| Dimensions | 49 × 26 × 10 mm; manufacturer tolerance +2 mm |
| Weight | 18 + 2 g |
| Operating range | −50°C to +50°C |
| Manufacturer warranty | 60 months, subject to the operating instructions |
What's in the Box
- Zenitco A-1 sling mount — 1
- Hex key — 1
- Operating manual — 1
Installation
- Loosen the two mounting screws.
- Place A-1 at the selected position on the compatible Picatinny rail.
- Tighten both screws with the supplied hex key and confirm that the mount is secure before use.
Color selection

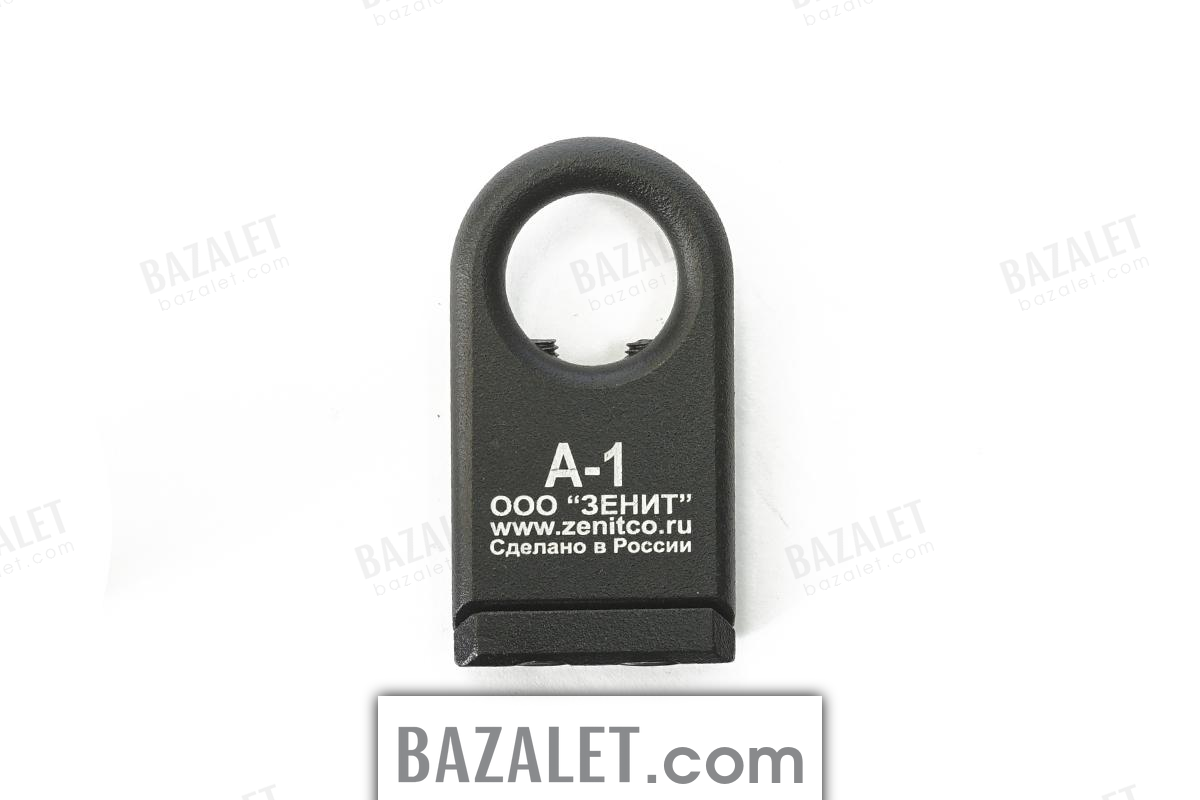

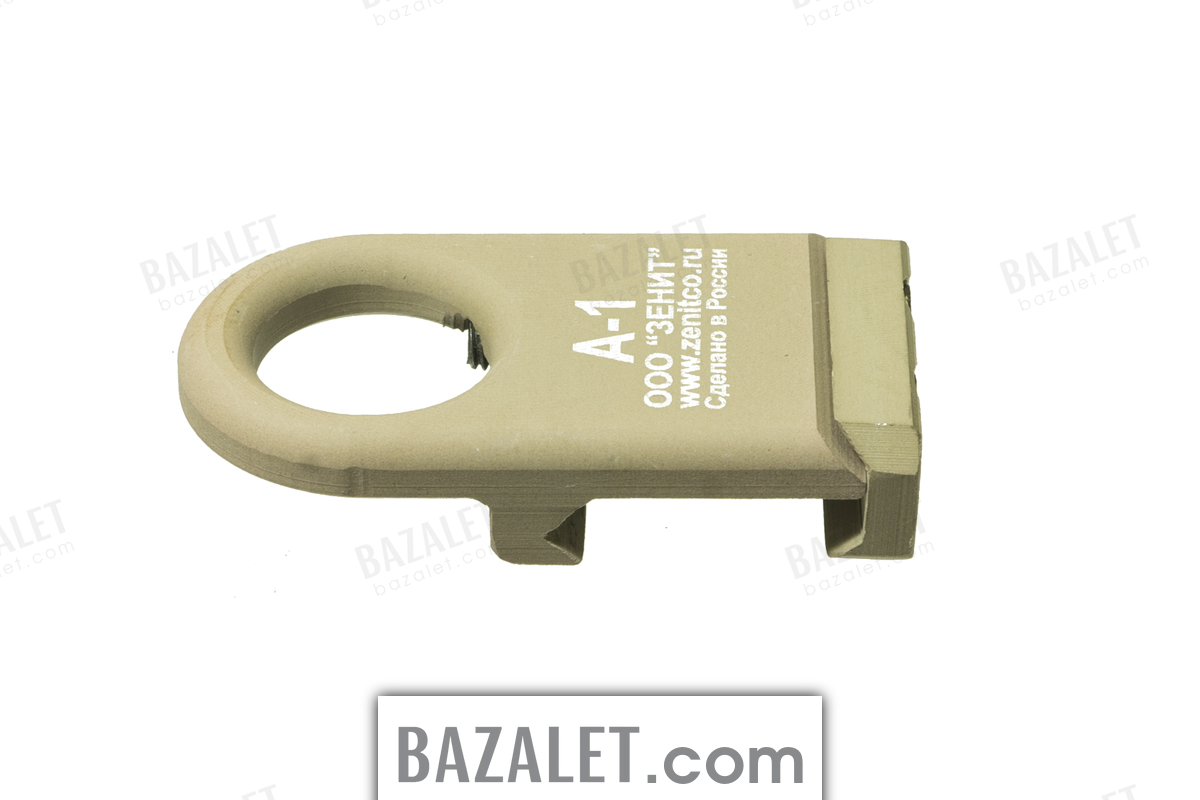

Choose Black or Desert before adding the product to the cart. The current gallery includes a matching view for each available finish.
Frequently asked questions
Does A-1 fit a Bazis guide?
No. A-1 fits a Picatinny rail. A-1L is the separate version for a Bazis guide.
How is A-1 secured?
A pressure plate and two screws secure it to a compatible Picatinny rail.
Can its position be adjusted?
It can be installed at a suitable point along the available Picatinny rail section.
What is included?
One Zenitco A-1 sling mount, one hex key and one operating manual.
