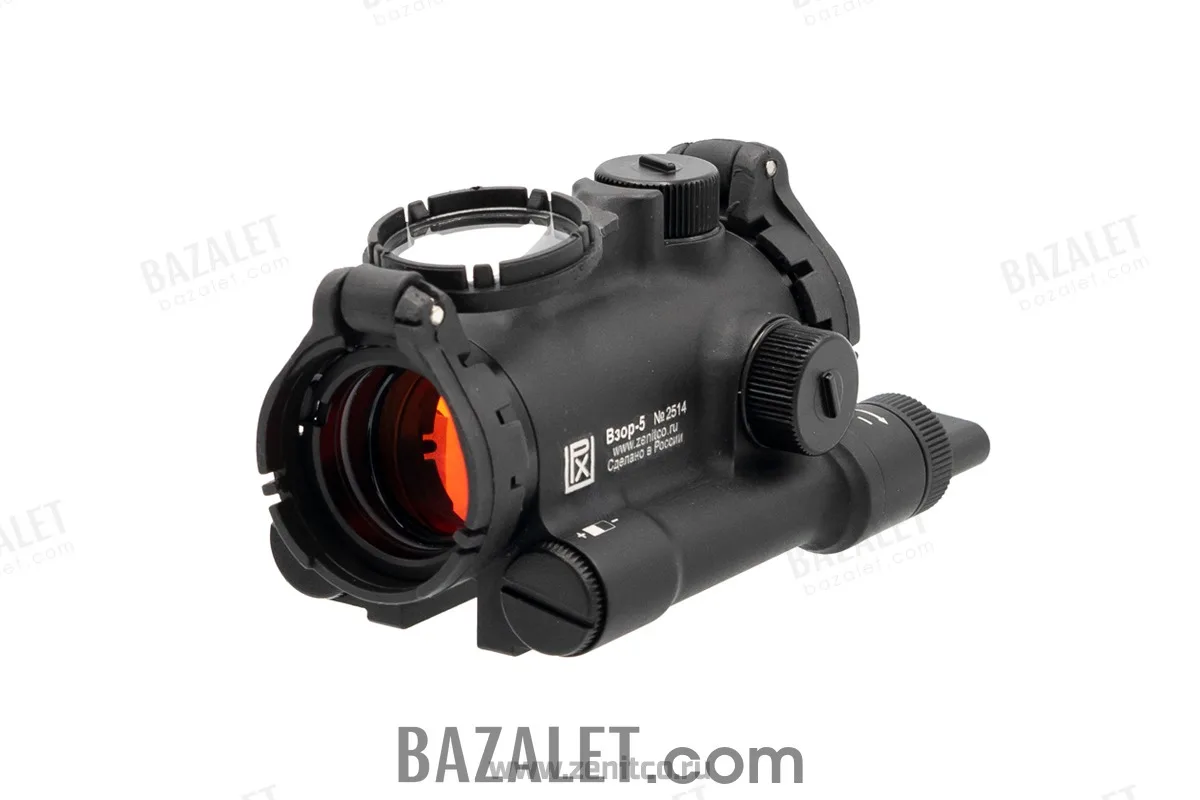

Zenitco Vzor-5 Red Dot Sight - 1x, Three Reticles, NV Compatible
- $1 029
Available Options
Zenitco Vzor-5 Red Dot Sight
Overview
The Vzor-5 is built for fast aiming at short and medium distance on a Picatinny or Basis rail. Three reticle modes cover different jobs: the 1 MOA dot for precision, the 34 MOA circle for speed, and the circle-with-dot combination when you want both. Eight brightness levels cover conditions from dusk to full sun, and the sight works alongside night-vision devices.
The body is machined from D16T aluminium alloy, the platforms are D16T with steel elements, and the lens covers are polymer. The sight itself weighs 171 g without battery, platform and covers, and measures 91 x 53 x 48 mm. Adjustment is 1 MOA per click. A single AAA cell lasts about six months at medium brightness, and the battery is fitted at the factory.
It ships complete: the PB-3 quick-release platform, two batteries, two lens covers, a service key, an optics cloth and a metal cylinder case. Add the «Vzor-5» spacer to raise the optical axis from 30 mm to 39 mm above the rail.
| ✓Vzor-5 Red Dot Sight | x 1 |
| ✓PB-3 Quick-Release Platform | x 1 |
| ✓AAA Battery | x 2 |
| ✓Lens Covers | x 2 |
| ✓Service Key | x 1 |
| ✓Optics Cloth | x 1 |
| ✓Manual | x 1 |
| ✓Metal Cylinder Case | x 1 |
Key Advantages
- Three reticles: 1 MOA dot, 34 MOA circle, or both
- Night-vision compatible, 8 brightness levels
- Six months on one AAA cell at medium brightness
- D16T aluminium body; 171 g bare
- Ships on the PB-3 quick-release platform
- Available in black and golden khaki
Technical Specifications
| Brand | Zenitco |
| Type | 1x reflex (red dot) sight |
| Magnification | 1x |
| Lens diameter | 22 mm |
| Reticle - dot | 1 MOA |
| Reticle - circle | 34 MOA |
| Operating modes | Dot / circle / dot + circle |
| Brightness levels | 8 |
| Adjustment | 1 click = 1 MOA |
| Night vision compatible | Yes |
| Battery | AAA, 1.5 V (fitted at the factory) |
| Battery life | About 6 months at medium brightness |
| Operating temperature | -30 °C to +50 °C |
| Material | Sight: D16T aluminum alloy; platforms: D16T with steel elements; lens covers: polymer |
| Weight | 171 ± 2 g (without battery, platform and lens covers) |
| Dimensions (L x W x H) | 91 x 53 x 48 mm (± 2 mm, without platform and lens covers) |
| Mounting | Picatinny or Basis rail, via the supplied PB-3 quick-release platform |
| Color / Finish | Black or golden khaki |
| MPN | Zen-Vzor-5 |
| Condition | New |
Frequently Asked Questions
Compatibility
| Compatible platforms / hosts | standard Picatinny or Basis mounting guides through the supplied PB-3 quick-release platform |
|---|---|
| Required interface / configuration | PB-3 platform configured for the selected Picatinny or Basis base |
| Resulting interface / function | 1x sight with selectable 1 MOA dot, 34 MOA circle or combined reticle |
| Exclusions / limitations | bases that do not accept the supplied PB-3 configuration |
What's in the Box
Installation
Confirm the required interface before installation: PB-3 platform configured for the selected Picatinny or Basis base. Fit the component according to the manufacturer instructions, then verify the resulting interface or function: 1x sight with selectable 1 MOA dot, 34 MOA circle or combined reticle.
