ZT-310 Valday
VALDAY-ZT310 Telescope
The VALDAY-ZT310 visual tube is designed for daytime observation, terrain analysis, and examination of distant objects.

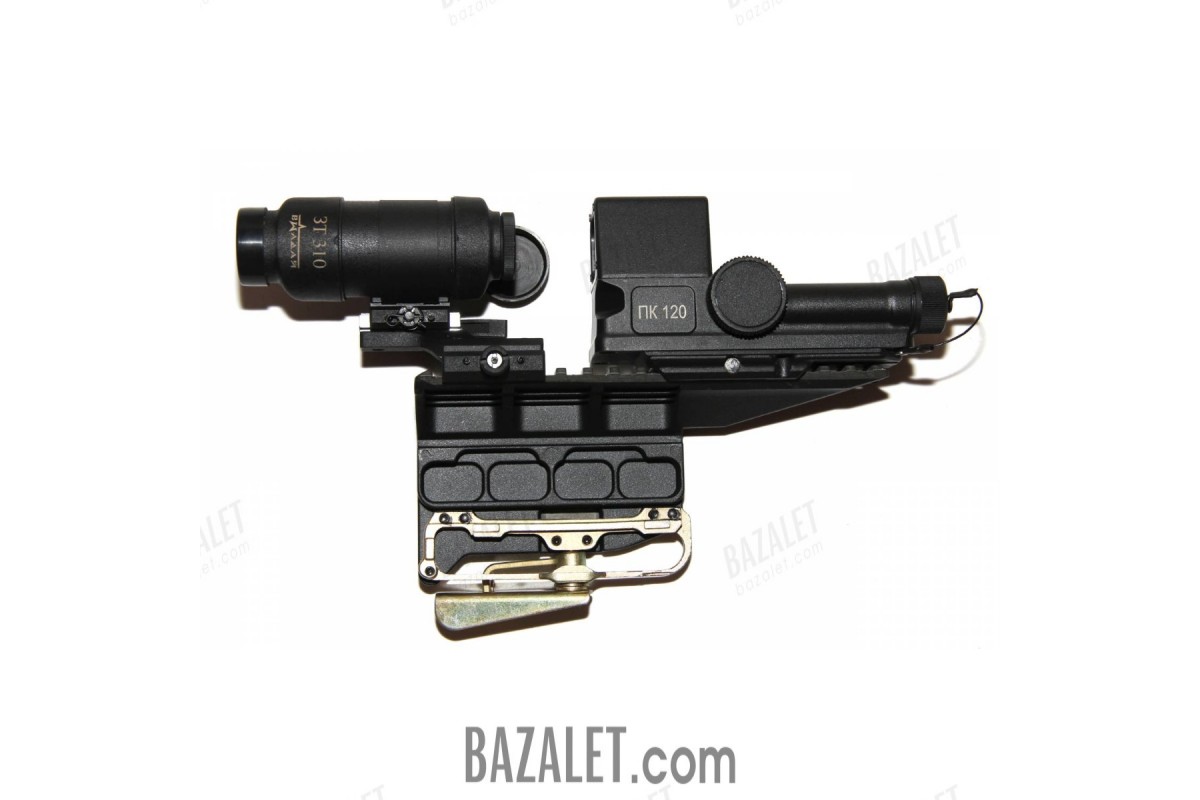

When paired with collimator sights like VALDAY-PK120 or VALDAY-PK130, it enables precision shooting with increased magnification.
Key Features
- Fully compatible with collimator sights.
- Wide field of view for better situational awareness.
- High-aperture optics ensure excellent resolution across the entire field.
- Ultralight construction made from a special aluminum alloy.
- Waterproof, withstanding immersion up to 1 meter deep.
Usage Details
- Works seamlessly with a collimator sight to significantly extend the range for precision shooting.
- Installed directly behind the collimator sight for optimal performance.
- Maintains the original weapon's midpoint and optical axis alignment, ensuring no need for adjustments.
- No additional alignment required when attaching or removing the optic tube.
- Equipped with a specially designed flip-up bracket for quick installation and removal.
Technical Specifications
| Specification | Value |
|---|---|
| Magnification | 3x |
| Angular Field of View | 12° |
| Visual Transmittance, % | 80 (minimum) |
| Resolution Limit | 22 |
| Exit Pupil Diameter, mm | 6 |
| Exit Pupil Relief, mm | 70 |
| Diopter Adjustment Range, dptr | -2 to +2 |
| Operating Temperature Range, ºС | -50 to +50 |
| Dimensions, mm | 122 x 49 x 47 |
| Weight, g | 180 |
