Zenitco RK-9 Anatomical Rear Grip with Sealed Storage
- $159
Available Options
In short: The Zenitco RK-9 is a D16T aluminum anatomical rear grip with one sealed internal storage compartment. It fits the manufacturer-documented standard rear-grip interface and is supplied with an M6×25 screw and two hex keys.
Compatibility checkpoint
- Interface: standard rear-grip position on the configurations documented by the manufacturer.
- Critical exception: AK-12 and TR-3 require a different mounting screw.
- Selection checkpoint: confirm the exact model and screw before ordering.
For a different Zenitco profile, compare the RK-3 rear grip. The RK-9/AR-15 version uses a separate interface.
Construction and storage
RK-9 is made from D16T aluminum alloy with a wear-resistant protective coating. A threaded cover closes the single sealed storage compartment. Black, desert and green finishes are available.
Technical specifications
| Material | D16T aluminum alloy with protective coating |
|---|---|
| Dimensions | 118 × 32 × 73 mm, ±5 mm |
| Weight | 160 +10 g, excluding mounting screw and keys |
| Storage | One sealed internal compartment |
| Standard supplied screw | M6×25; AK-12 and TR-3 require another screw |
| Operating range | −50°C to +50°C |
| Finishes | Black, desert or green |
| Manufacturer warranty | 60 months |

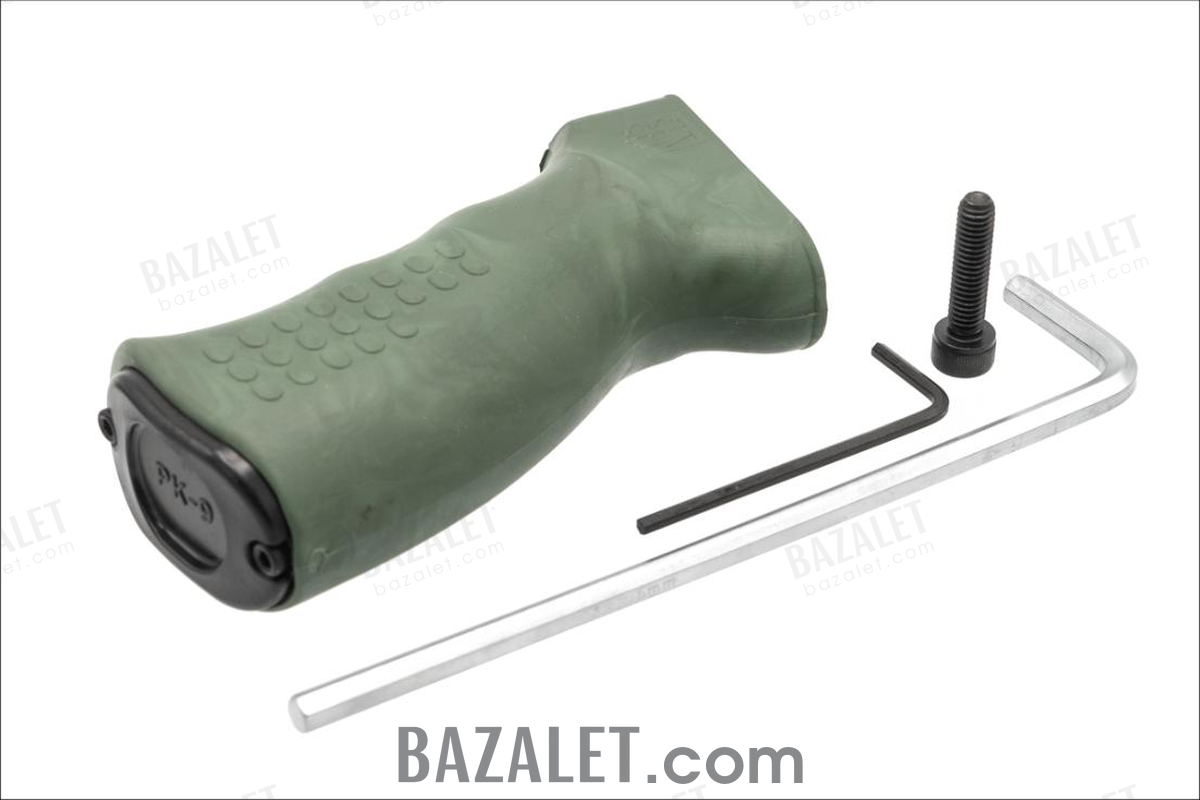

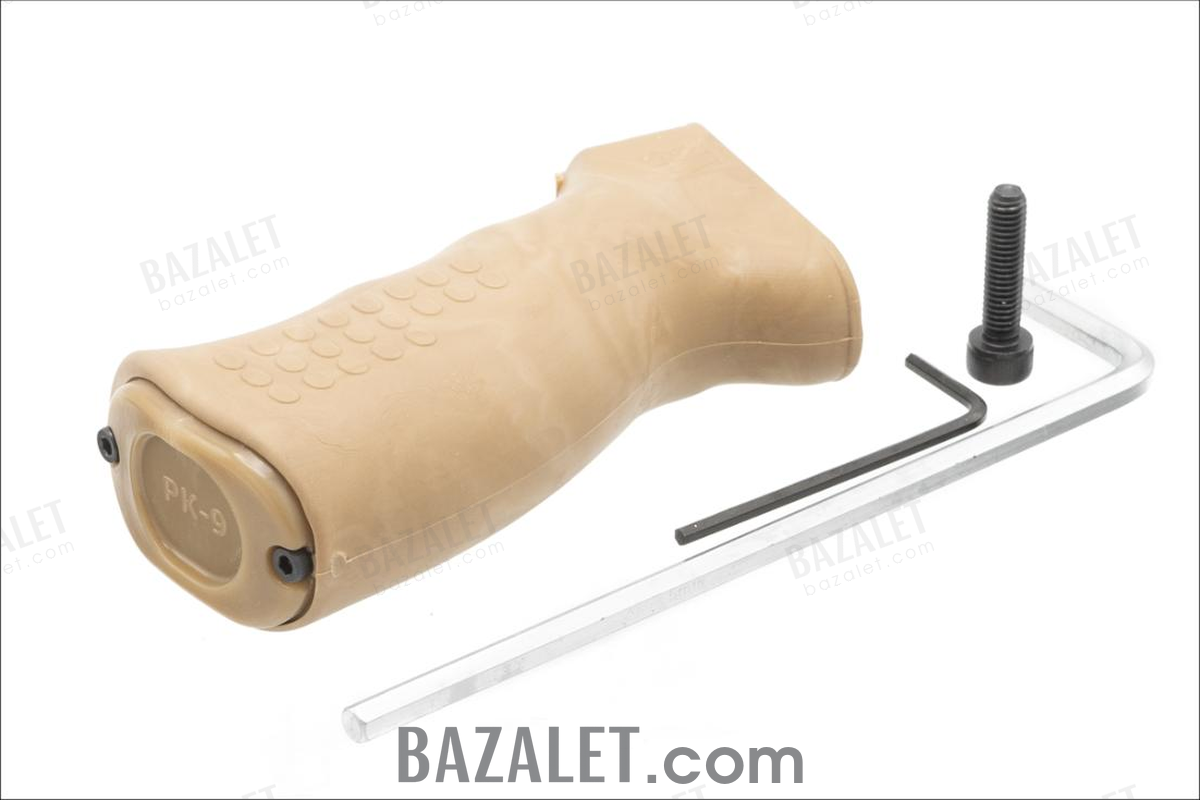

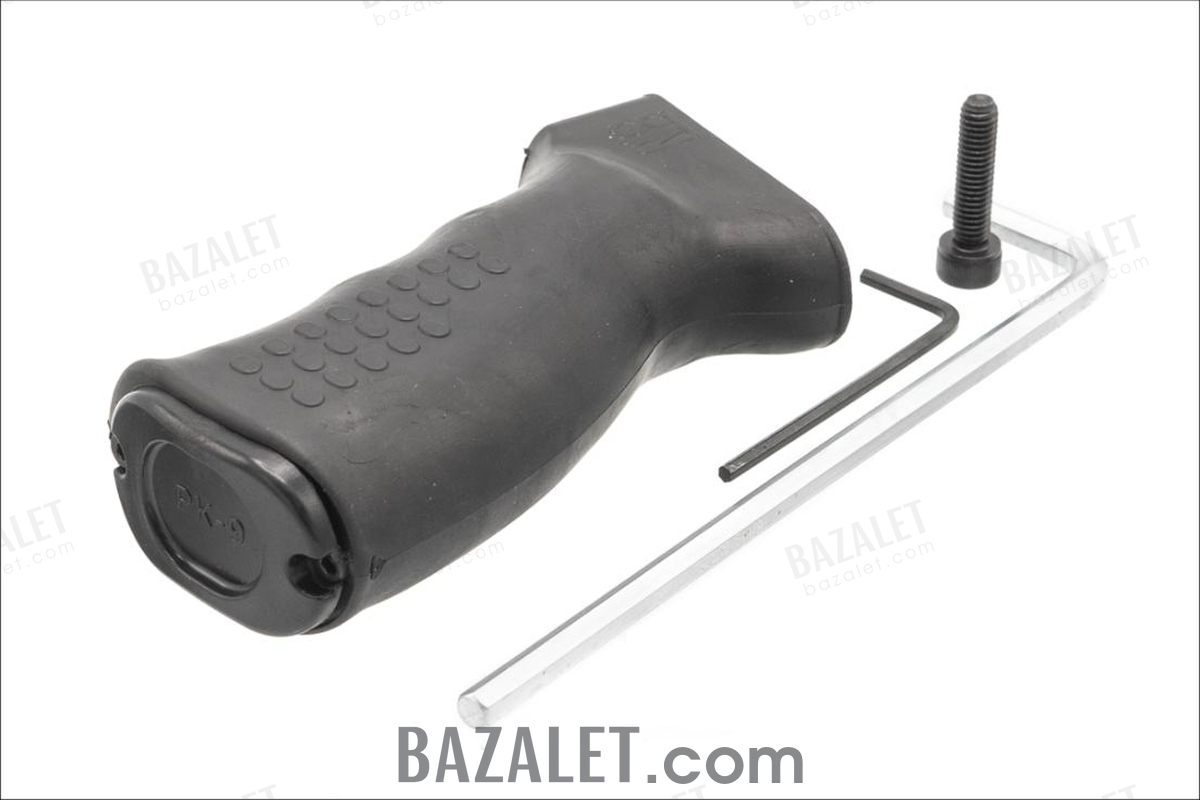

What's in the Box
- RK-9 rear grip — 1
- Storage-compartment cover — 1
- M6×25 mounting screw — 1
- Hex keys — 2
- Operating manual — 1
Installation
- Remove the existing rear grip.
- Unscrew the storage-compartment cover from RK-9.
- Secure RK-9 in the standard position with the correct screw and hex key.
- Reinstall the compartment cover.
Use the screw specified for the exact configuration. The supplied M6×25 screw does not cover the manufacturer-noted AK-12 and TR-3 exception.
Frequently asked questions
Does RK-9 include internal storage?
Yes. It has one sealed compartment closed by the supplied threaded cover.
Which mounting screw is supplied?
The standard delivery set includes one M6×25 screw. AK-12 and TR-3 require a different screw.
What are the documented dimensions and weight?
Dimensions are 118 × 32 × 73 mm with a ±5 mm tolerance. Weight is 160 +10 g without the mounting screw and keys.
Which finishes are available?
Black, desert and green are available as selectable options.
