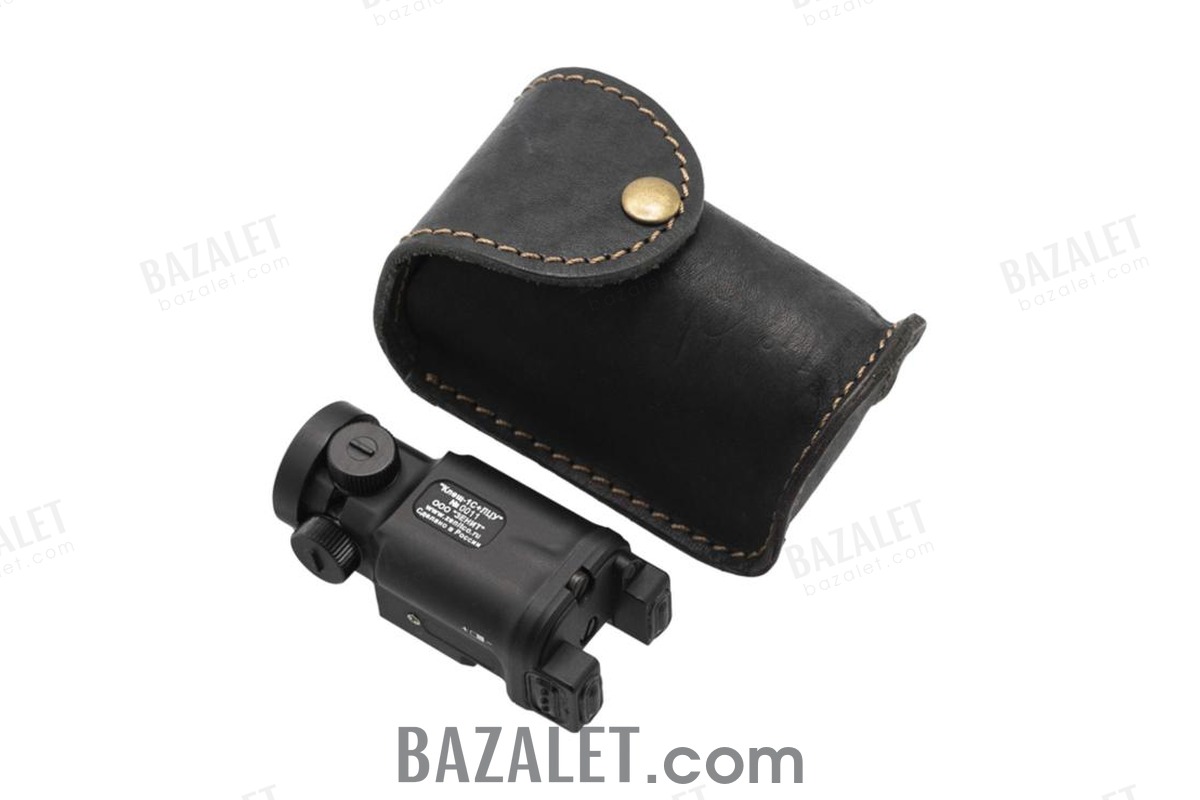

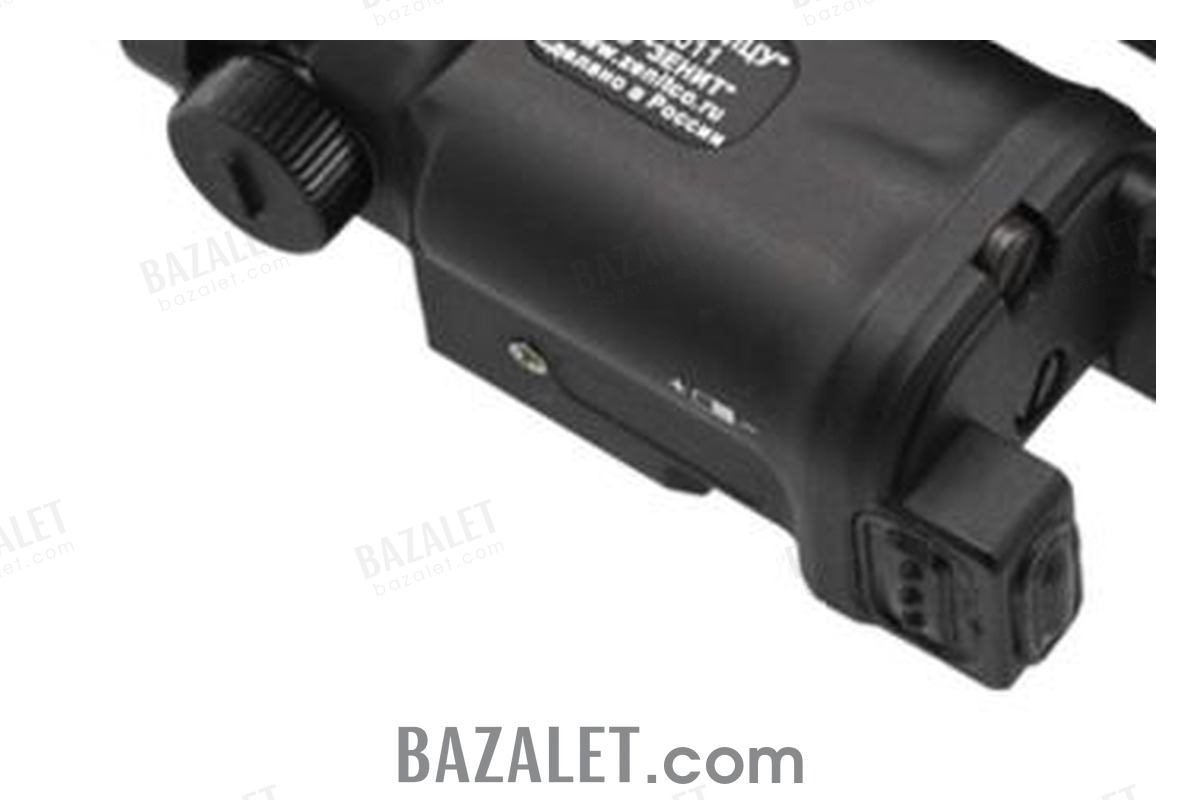

Zenitco Klesch-1S-IK+LTsU Infrared Illuminator and Aiming Module
- $1 029
In short: Zenitco Klesch-1S-IK+LTsU combines an 850 nm infrared illuminator with an integrated 850 nm infrared aiming module. It works only in the infrared range and requires a compatible night-vision device. Grand Power T10 is the exact host model confirmed by the manufacturer compatibility index.
Compatibility matrix
| Host model | Required viewing equipment | Status |
|---|---|---|
| Grand Power T10 | Compatible night-vision device | Direct documented fit |
Selection checkpoint: Both the illuminator and aiming point are infrared and are not intended for unaided viewing. Other host models are not assigned in the official compatibility index and are excluded from the verified filter record.
Purpose and operation
The compact unit supports short-distance observation and designation in darkness or limited visibility. The manufacturer specifies an aiming distance up to 15 m. It ships in transport-lock mode; hold both side buttons together until activation to unlock it before first use.
Technical specifications
| Illuminator | Infrared LED, 850 nm |
|---|---|
| Integrated aiming module | Infrared, 850 nm |
| Documented aiming distance | Up to 15 m |
| Power | Two CR123A cells, 3 V nominal each |
| Stable continuous runtime | At least 1.2 hours |
| Dimensions | 84 × 38 × 37 mm, ±3 mm, with rear section |
| Weight | 138 ± 3 g without cells, rear section installed |
| Operating temperature | −20 to +40 °C |
| Service life | 5 years |
Installation and first use
Confirm the host interface and night-vision setup before installation. Secure the unit according to the supplied manual. For first activation, press and hold both side buttons together until the unit switches on and exits transport lock.
What's in the Box
| Zenitco Klesch-1S-IK+LTsU | × 1 |
| CR123A cells, installed | × 2 |
| Operating manual | × 1 |
Frequently asked questions
Does this model produce visible light?
No. The manufacturer specifies infrared-only operation.
Which exact host is officially confirmed?
Grand Power T10 is listed in the manufacturer compatibility index.
What is required to observe the output?
A compatible night-vision device is required.
How is transport lock released?
Press and hold both side buttons together until the unit activates.
