Zenitco Klesch-1IK V1.1 Infrared Picatinny Illuminator
- $399
Available Options

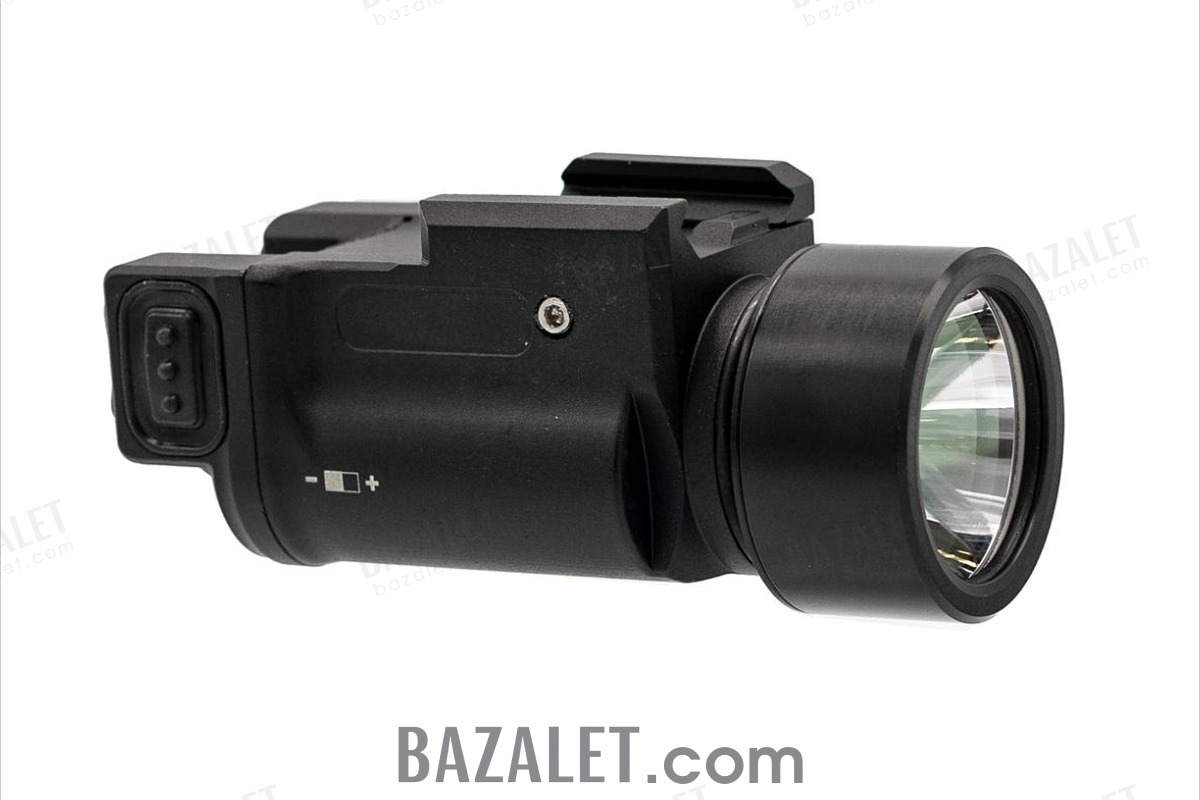

In short: The Zenitco Klesch-1IK V1.1 produces infrared output only and is intended for use with compatible night-observation equipment. It mounts on a Picatinny rail and is available in Full and Compact configurations.
Compatibility checkpoint
- Mounting interface: compatible Picatinny rail.
- Observation requirement: the infrared output is not visible to the unaided eye and requires compatible night-observation equipment.
- Yarygin (Viking) frame: requires the separately available B-8 adapter.
- Full-kit remote: includes the KV-D1P V2.0 remote switch.
Choose the correct kit

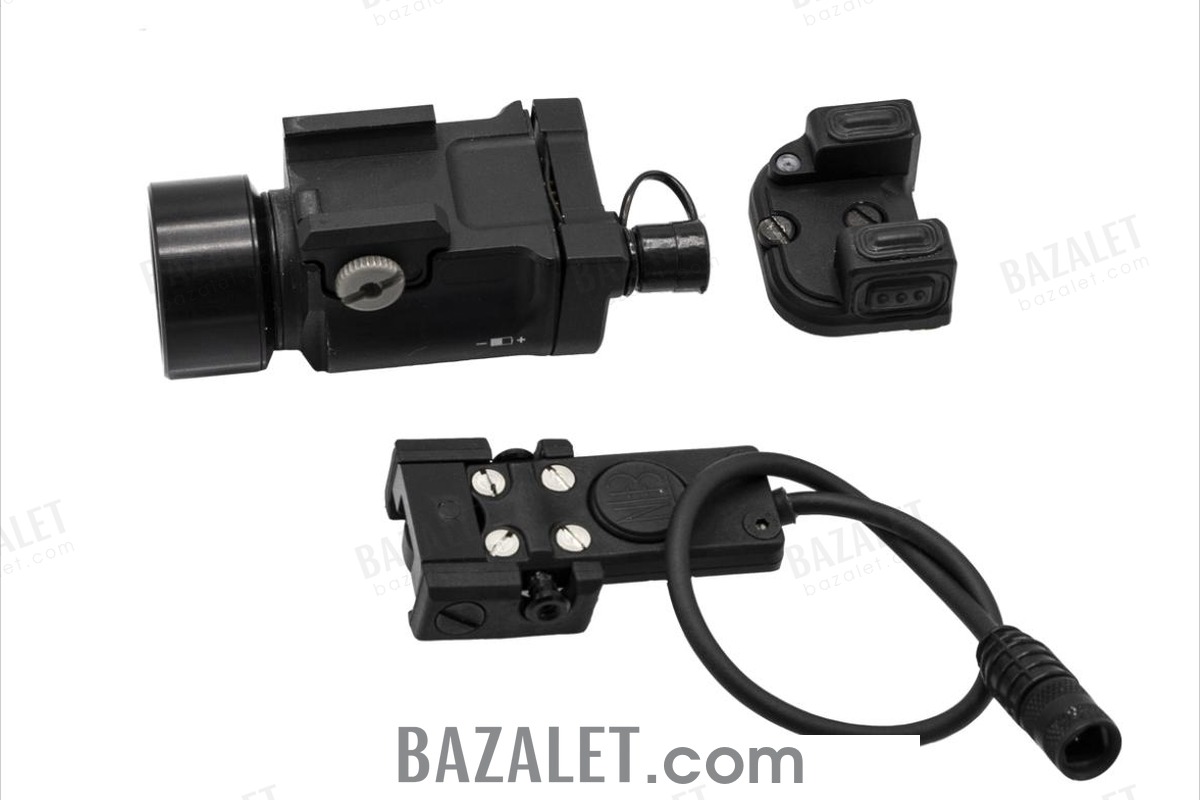

Full adds the alternate rear section and KV-D1P V2.0 remote switch. Compact includes the illuminator with its compact rear section, installed batteries and manual. Select the required kit before adding the item to the cart.
Technical specifications
| Output | Infrared only |
|---|---|
| Illuminance at 5 m | At least 350 lx constant; at least 500 lx boost |
| Runtime | At least 1.2 h with stable output in constant mode |
| Power | 2 × CR123A 3 V batteries, installed |
| Dimensions | 78 × 38 × 37 mm (±3 mm), compact rear section fitted |
| Weight | 82 ± 3 g, without batteries, compact rear section fitted |
| Operating range | −20°C to +40°C |
| Manufacturer warranty | 12 months |
What's in the Box
Full kit
- Klesch-1IK V1.1 with compact rear section — 1
- Alternate rear section — 1
- CR123A batteries, installed — 2
- KV-D1P V2.0 remote switch — 1
- Operating manual — 1
Compact kit
- Klesch-1IK V1.1 with compact rear section — 1
- CR123A batteries, installed — 2
- Operating manual — 1
Installation
Install the unit on a compatible Picatinny rail and follow the supplied manual for battery, rear-section and remote-switch setup. For the Yarygin (Viking) frame, add the documented B-8 adapter.
Frequently asked questions
Does Klesch-1IK produce visible light?
No. It operates only in the infrared range and requires compatible night-observation equipment.
What is included with the Full kit?
The Full kit adds an alternate rear section and a KV-D1P V2.0 remote switch to the illuminator, two installed batteries and manual.
What is included with the Compact kit?
The Compact kit includes the illuminator with compact rear section, two installed CR123A batteries and the operating manual.
Which adapter is documented for the Yarygin (Viking) frame?
Use the separately available Zenitco B-8 adapter.
